YARDMAX YT5328 - Engine Maintenance

Upper Belt Guard
Lower Belt Guard
M6×16 (×5)

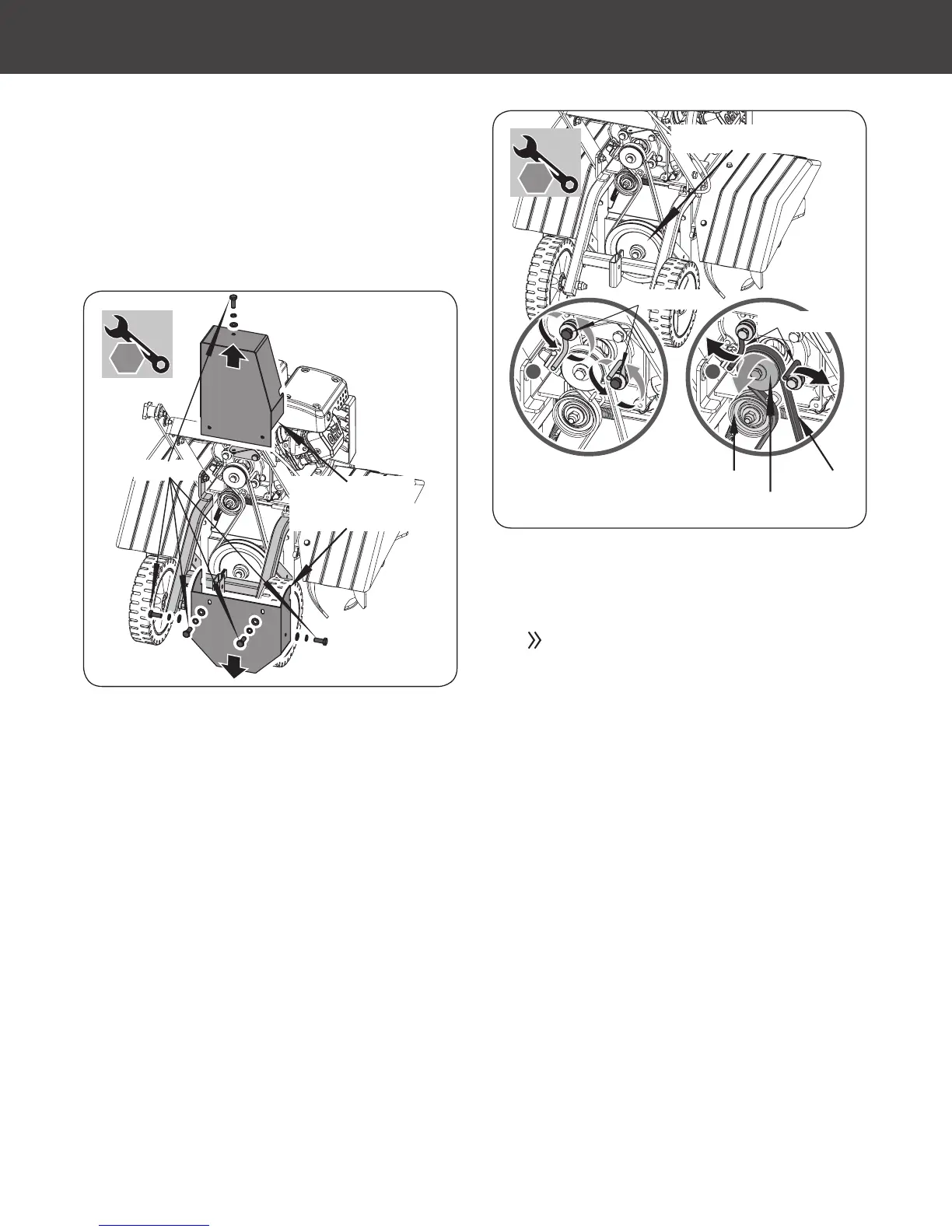

REPLACING THE BELT
1. Remove the one bolt in the upper belt guard and four bolts in
the lower belt guard to expose the belt assembly. (See Figure
13a)
2. Loosen the two stud bolts that x both belt guide rods. (See
Figure 13b, Illustration 1)
3. Remove the belt from both the engine pulley and transmission
pulley. (See Figure 13b, Illustration 2)
Figure 13a
Figure 13b
12 mm
10 mm
Transmission Pulley
2
Engine Pulley
Idle Pulley
Belt Guide Rod (×2)
Belt
1
Stud Bolt (×2)
17 mm
18 mm
30 mm
13 mm
11 mm
ENGINE MAINTENANCE
For information on engine maintenance, refer to
the Engine Manual included with your unit. Your
engine manual provides detailed information and a
maintenance schedule for performing maintenance
tasks.
16
Front Tine Tiller
»
Operator’s Manual
YT5328PM01 - 1705
