13
®
/MD
Mulch/Discharge Guard Deflector
Model Number:
060-1334-6
Operator Presence Control Bar
Must be held down to the handle to start the engine or
engage the blades. Release the bar to stop the blade/engine.
Drive Control Lever
Used to engage self-propelled front motion of the
lawn mower.
Knobs
Battery Port
(IF
EQUIPPED)
Start Button
(IF EQUIPPED)
Used to start the engine.
Grass Catcher
Battery Bay/ Box
(IF EQUIPPED)
Battery Bay/Box can be either on
the top of the engine or on the deck
depending on the model.
Height Adjuster
Used to adjust cutting
height of the lawn
mower.
Housing
Front bumper handle can be used
to lift mower during transport.
Spark Plug
Discharge Cover
Discharge cover must be present
and closed if bag is not attached.
Engine Oil Cap with Dipstick
Gasoline Filler Cap
Muffler
Air Filter

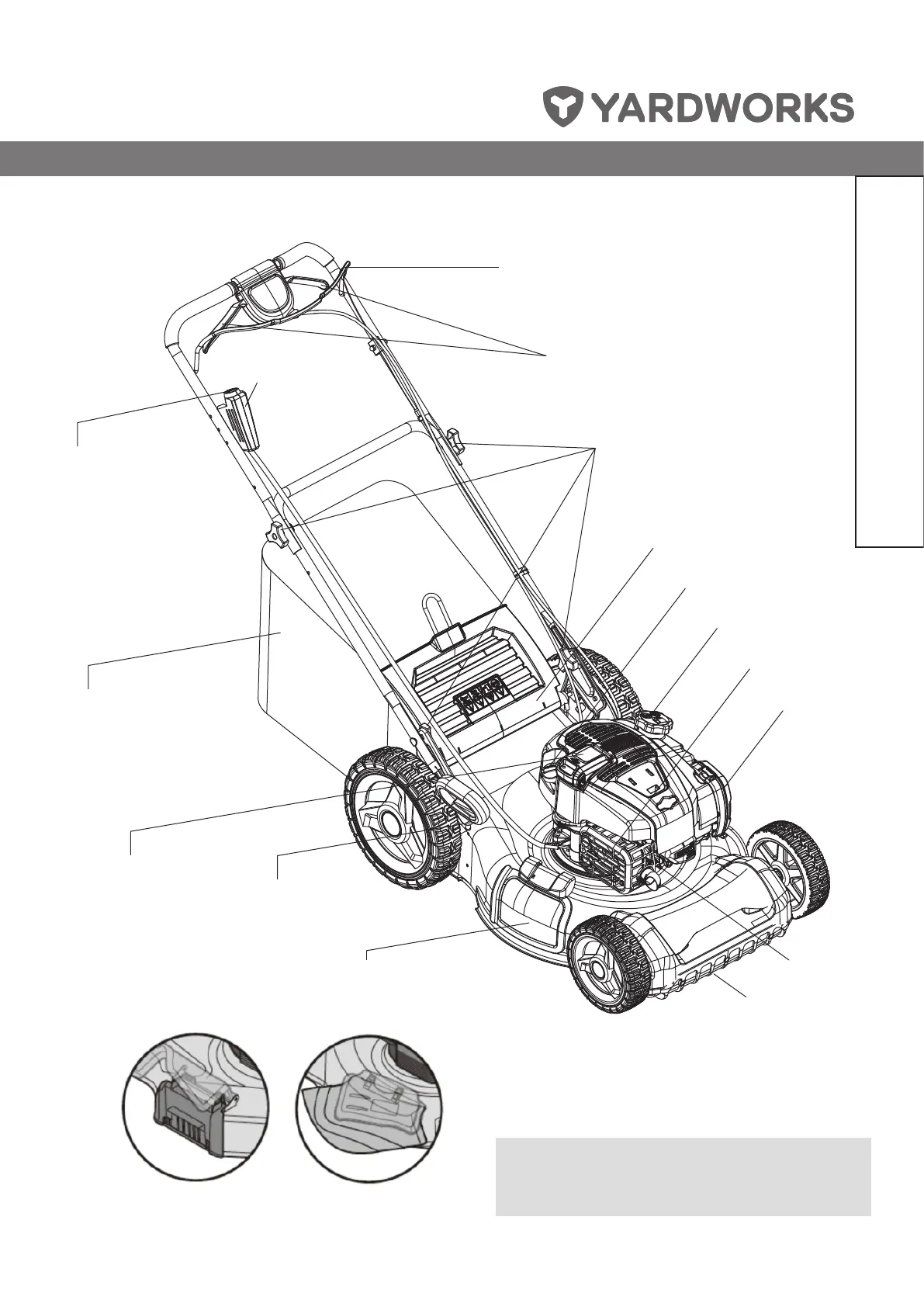

Know Your Lawn Mower
Mulch Door
Allows conversion to discharge or
bagging operations.
NOTE: To convert to side discharge,
install deflector.
To Next Page
