LOOSE PARTS IN CARTON
ASSEMBLING THE HANDLE (Fig. 1)
• Side discharge chute
• Battery
• Charger
• Grass catcher
• Mulch plug
• Lock-out pin
1. Remove any packing material that may have been inserted between the upper and lower
handles for shipping purposes.
2. Align the holes (3) on the upper handle (1) and the lower handle (2).
Insert the bolts (4), and tighten them using the knobs (5) provided.
Note:
• Carefully remove the parts from the box.
• Inspect the parts carefully in order to verify that no breakage or damage occurred during shipping.
• Do not discard the packing material until all parts have been examined.
• If any parts are damaged or missing, call 1-866-523-5218 for assistance.
3
4
5
1
2

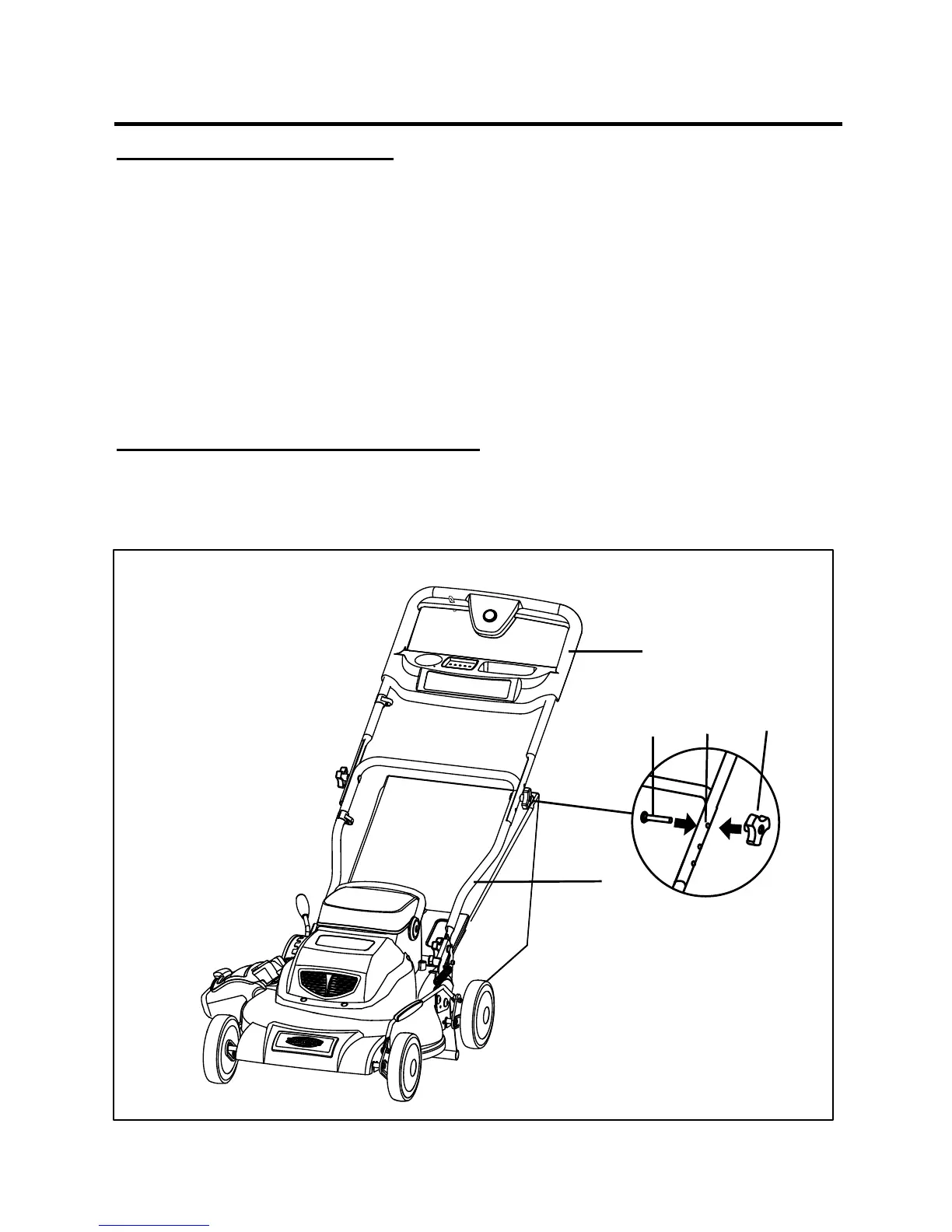

Fig. 1
To Next Page
