10

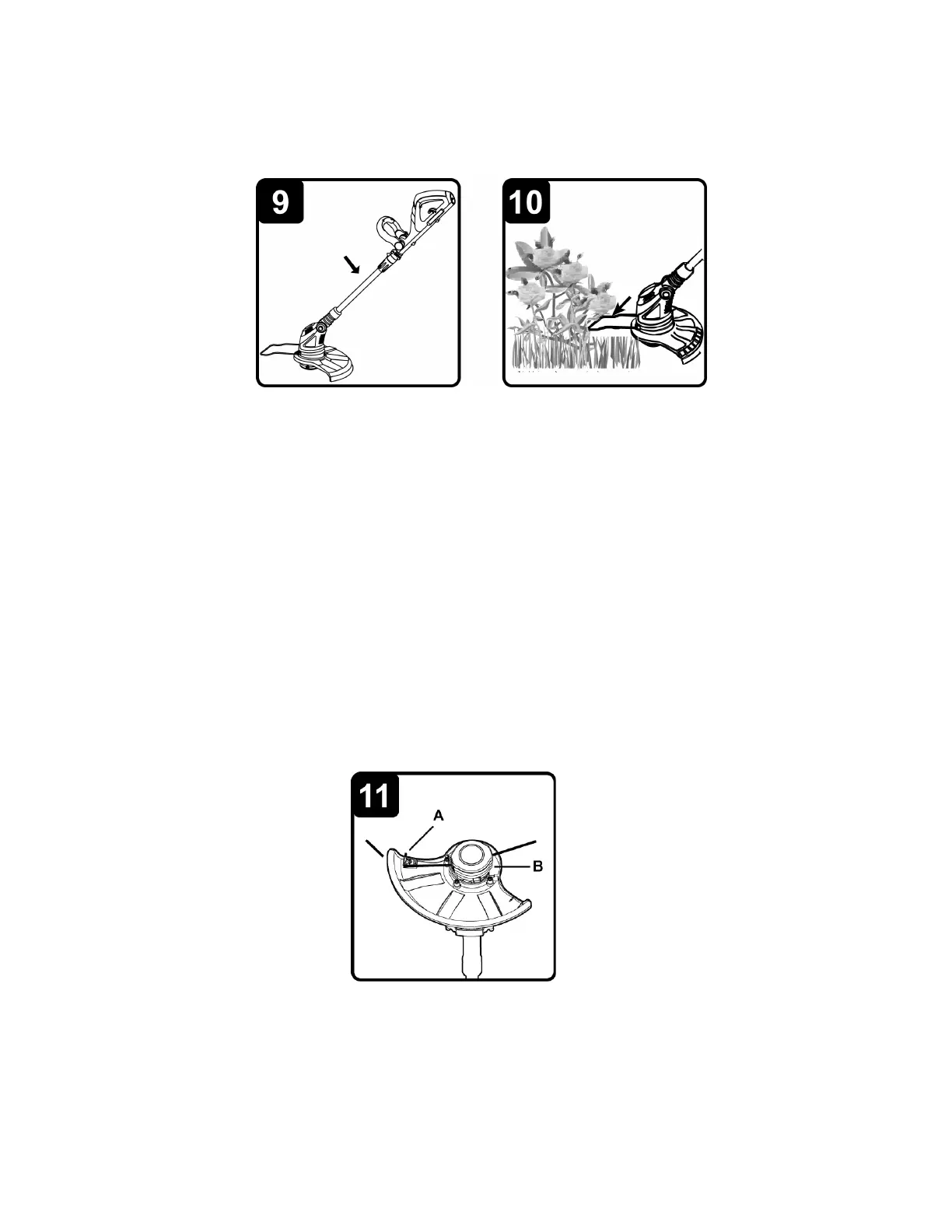

Adjusting cutting head angle (See Figure 9.)
Press the button and move the shaft to the lowest position. The shaft will rotate to the 3
positions, when button is pressed. When the shaft is in position, the button will lock into place.
Using the edge guide (See Figure 10.)
If necessary the distance bracket can be swung down until it locks. Use the edge guide,
for example, to cut around plants.
Adjusting the line length manually (See Figure 11.)
Disconnect the plug from the mains socket!
Press the retaining head (B), release it again and pull the ends of the cord out a little. Repeat this process
until the ends of the cord project a little beyond the cord cutter (A).
Fully automatic dual line system
The trimmer features a fully automatic dual line system so that the lines are automatically lengthened each
time the trimmer is switched on after a standstill. If the lines should be longer that defined by the cutting
circle then they will be automatically cut to the correct length by the line cutter (A).
