Assembly

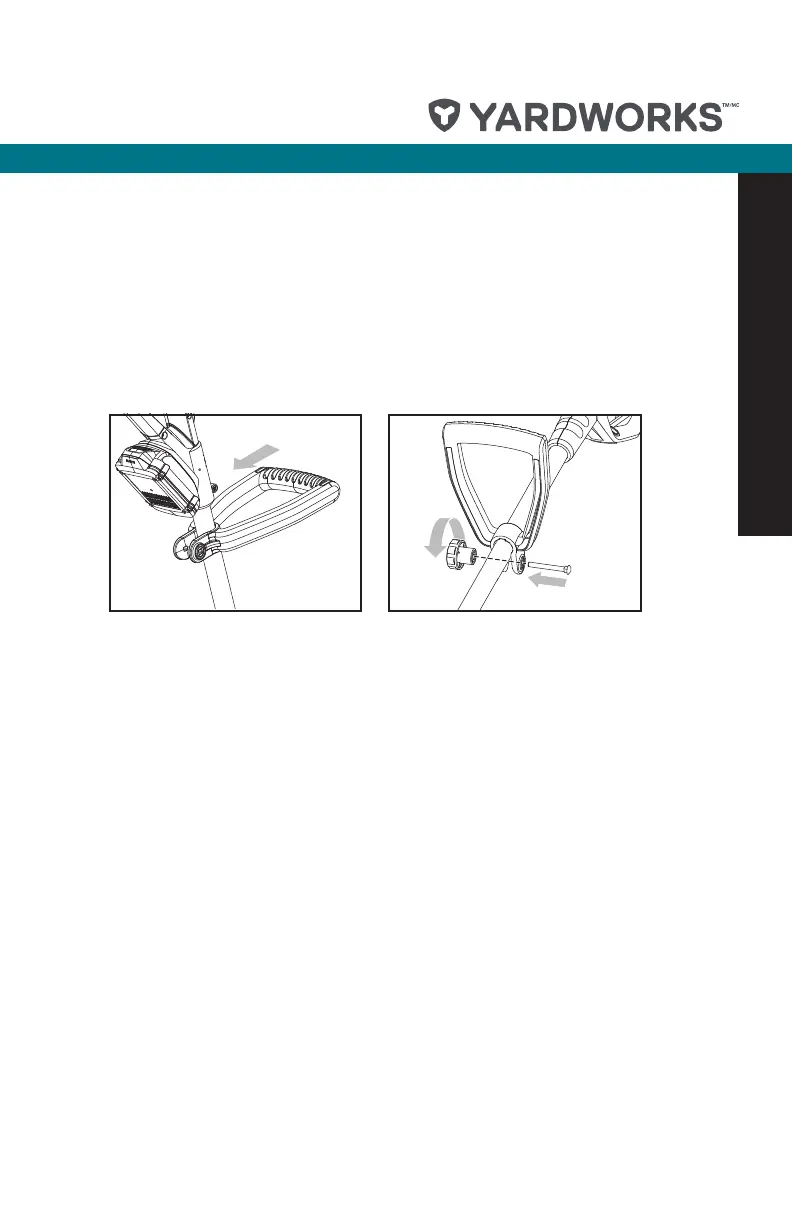

1. ASSEMBLY OF AUXILIARY HANDLE (SEE FIG. A1, A2)
Insert the shaft onto the upper housing. Hand-grab area should face down (See Fig. A1).
Attach the screw to the housing unit, and then to the knob. Finally, rotate the knob until it is
hand tight (See Fig. A2).
Note: Make sure that the handle is rmly locked in place.
2
3
1
A1
A2
