Snow thrower controls and features are described below and
illustrated in Fig. 4-1.
Shift Lever
The shift lever is located on the handle panel and is used to
determine ground speed and direction of travel.
Forward
There are six forward (F) speeds. Position one (1) is the slowest
and position six (6) is the fastest.
Reverse
There are two reverse (R) speeds. One (1) is the slower and two (2)
is the faster.
Skid Shoes
Position the skid shoes based on surface conditions . Adjust
upward for hard-packed snow. Adjust downward when
operating on gravel or crushed rock surfaces.
Augers
When engaged, the augers rotate and draw snow into the auger
housing.
Chute Assembly
Snow drawn into the auger housing is discharged out the chute
assembly.
Headlight (if so equipped)
The headlight is on whenever the engine is running.

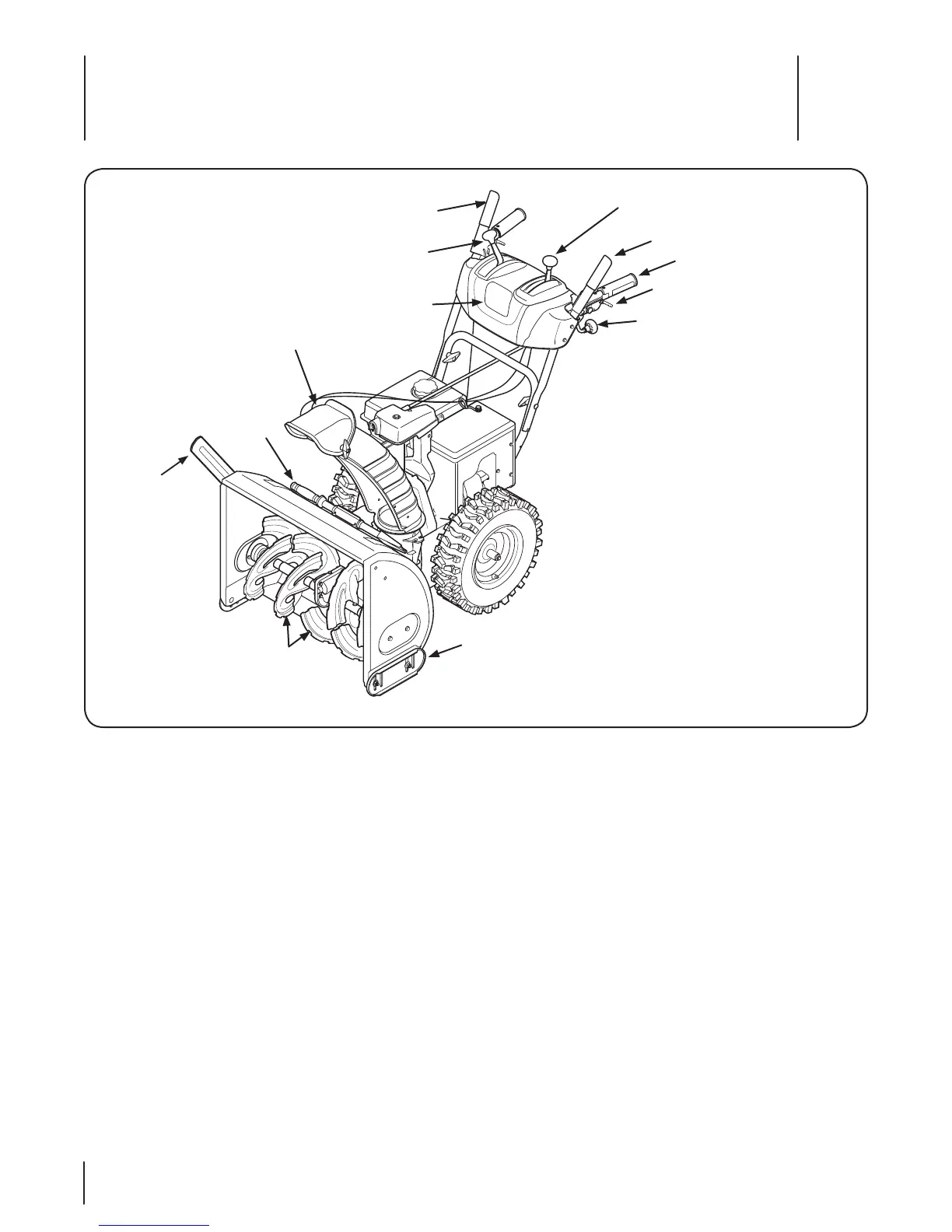

Fig. 4 -1
Augers
Skid Shoe
Clean Out
Tool
Chute Assembly
Drive Control
Shift Lever
Chute Dire
2 Way Chute Control (optional)
ctional Control
Auger Control
Heated Grips (optional)
Steering Trigger Control
Drift Cutters
(optional)
Headlight (optional)
Controls and Features
