Yardworks CGT48BCU - To Replace the Spool and Line

model no. 060-1984-8 | contact us: 1.866.523.5218
16
Operation Instructions
5. To replace the spool and line
For your convenience it is recommended you buy a replacement spool with line.

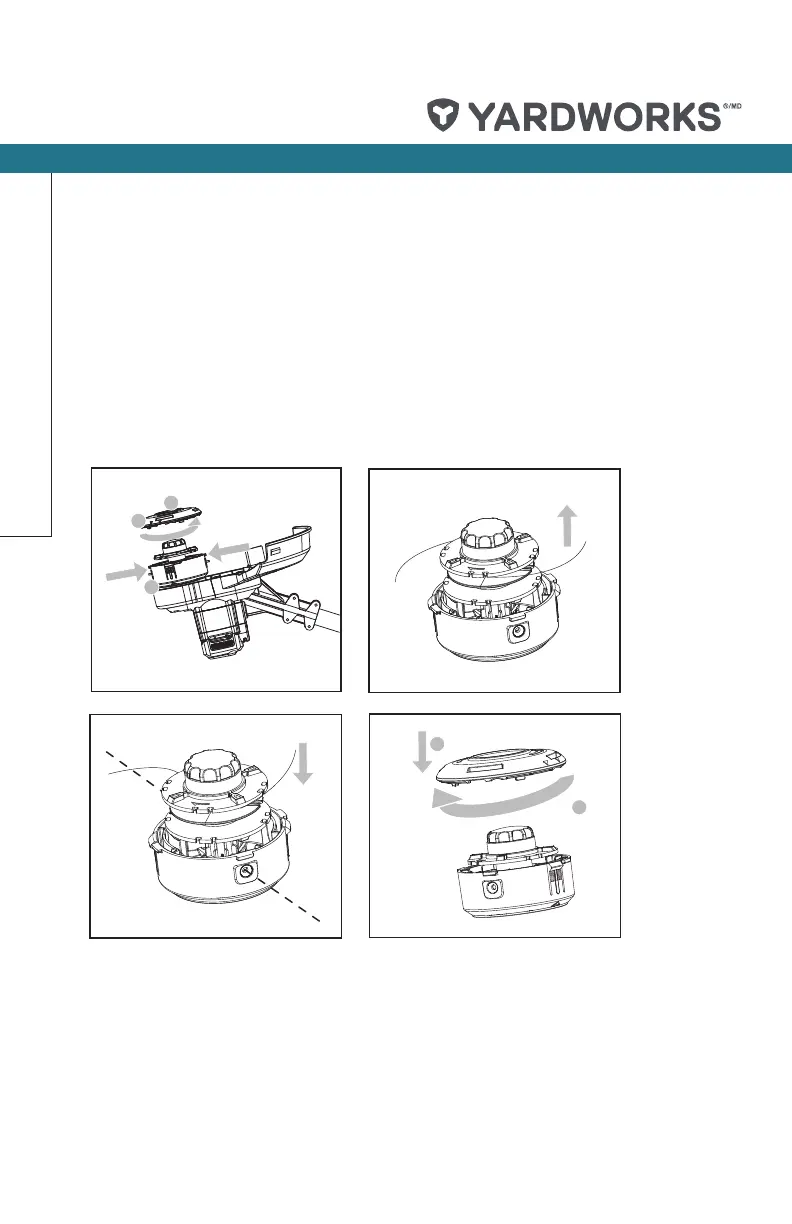

Press and hold in the two cap release latches. Loosen the cap by rotating it counter-
clockwise. Pull cap away from the spool holder (see Fig. J1).
Remove old spool (see Fig. J2).
Place new spool into cutting head. Release one line from cleat and feed line through eyelet
(see Fig. J3).
Replace the cap on the spool holder and turn the cap clockwise to tighten (see Fig. J4).
Note: If required, line can be fed out manually. Gently pull out the 2 lines until the lines reach
the line cutter. If the line extends past the line cutter, too much line has been fed out. If too
much line is fed out, remove the spool cap and click spool counter-clockwise until the line is
at the desired length.
