Yardworks TC70016-1 - Table of Contents; Product Specifications

PRODUCT SPECIFICATIONS
Model: TC70016-1
Power supply voltage: 120V-60HZ Working width: 11-IN or 16-IN
Tine Speed: 360 RPM Working depth max: 8-IN
Power Consumption: 13.5 Amp
2
Model TC70016-1

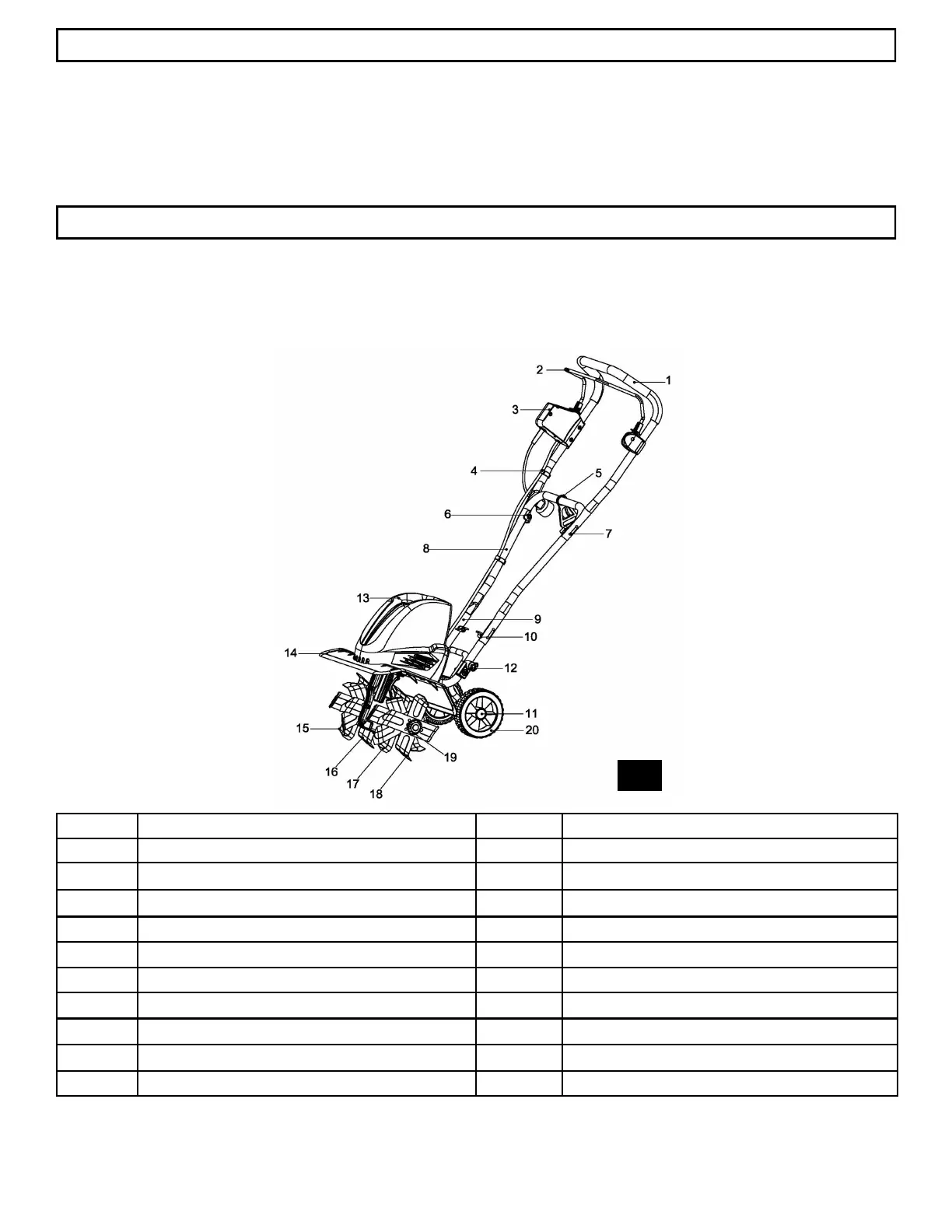

No. Description (P/N) No. Description (P/N)
1 Upper handle section (RTC70016-01) 11 Wheel hub cap (RTC70016-60)
2 Bail wire (RTC70016-17) 12 Wheel frame lock pin (RTC70016-10)
3 Switch box and power cable assembly (RTC70016-02) 13 Motor housing (RTC70016-24)
4 Cable clip (RTC70016-03) 14 Protective shield (RTC70016-33)
5 Cord retainer (RTC70016-04) 15 Tine assembly, D (RTC70016-42)
6 Wing nut (RTC70016-05) 16 Tine assembly, C (RTC70016-43)
7 J-bolt M6 (RTC70016-06) 17 Tine assembly, B (RTC70016-55)
8 Center handle section (RTC70016-07) 18 Tine assembly, A (RTC70016-56)
9 Lower handle section - II (RTC70016-16) 19 Tine lock pin (RTC70016-47)
10 Lower handle section - I (RTC70016-09) 20 Wheel (RTC70016-62)
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 - 7
Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 9
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Storage . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
TABLE OF CONTENTS
1
