Yardworks YW1100PP User Manual

SET-UP & INSTALLATION

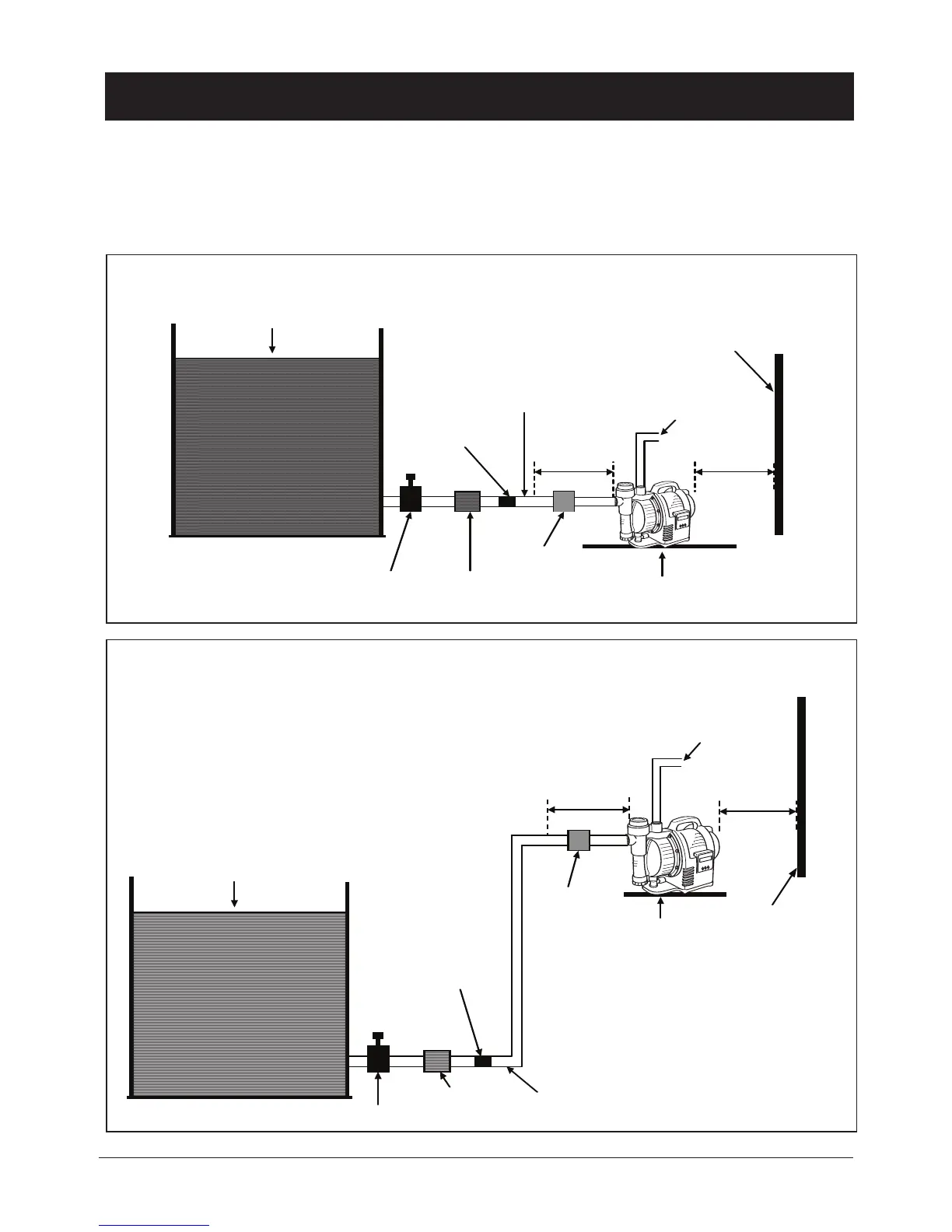

Positioning the Hose or Pipe
Position the input hose or pipe so that it rises from the water drawing source to the pump. Avoid positioning the
input hose or pipe higher than the pump, as this would delay the escape of air bubbles from the input hose or pipe
and impede the priming process (see section ‘starting the pump’ for description on priming the pump) (Fig. 1-2).
mm051mm051
WATER TANK
GATE VALVE
IN-LINE
FILTER
NON-RETURN
VALVE
(optional)
UNION COUPLING
SUCTION LINE
FIRM BASE
DISCHARGE
OUTLET
COMMON CONNECTION WITH TANK BASE LEVEL WITH WATER PUMP
SOLID STRUCTURE
150mm
WATER TANK
GATE VALVE
IN-LINE
FILTER
NON-RETURN
VALVE
(optional)
UNION COUPLING
SUCTION LINE
FIRM BASE
DISCHARGE
OUTLET
COMMON CONNECTION WITH TANK BASE BELOW WATER PUMP
150mm
SOLID STRUCTURE
Fig. 1
Fig. 2
9
