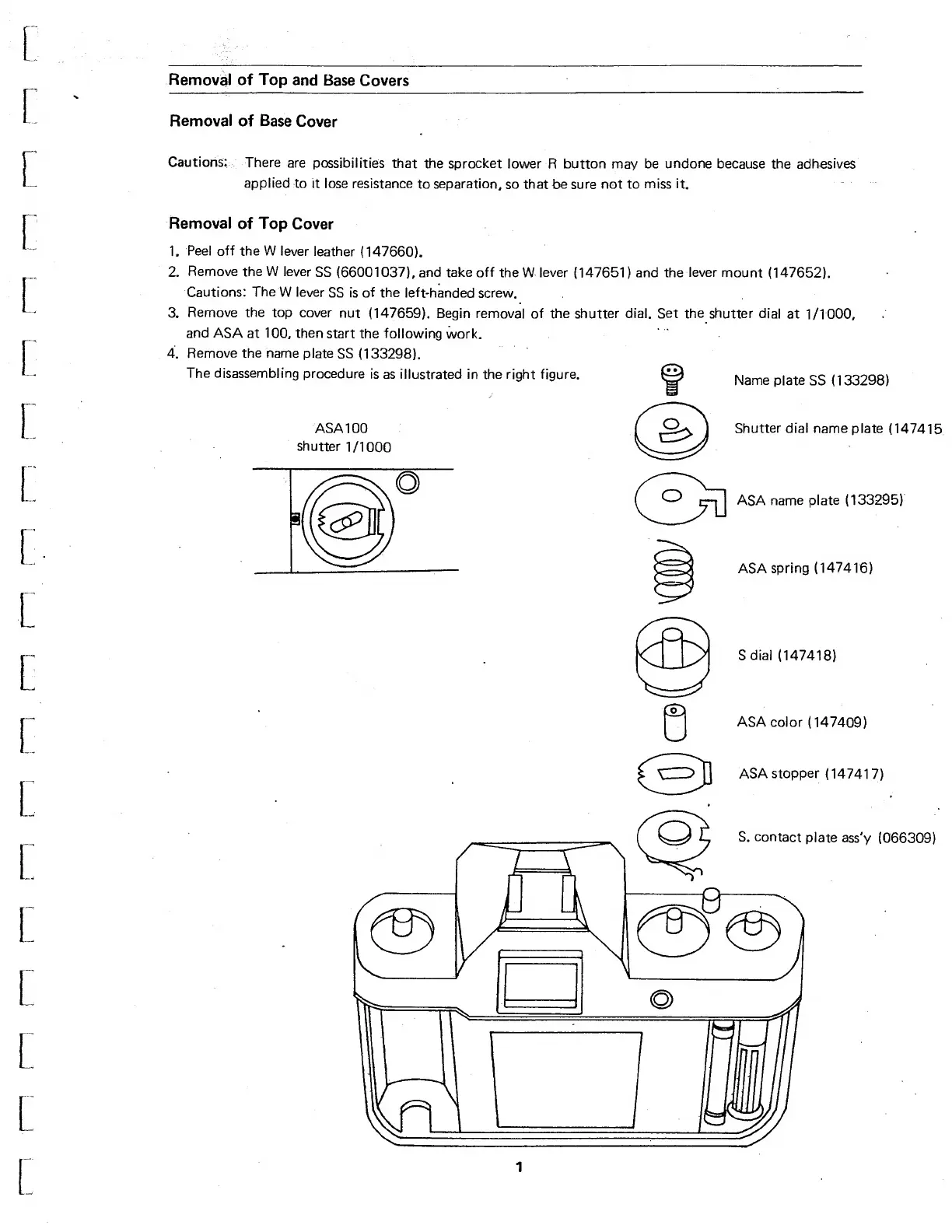

Removal
of
Top
and
Base
Covers
Removal
of
Base
Cover
Cautions:
There
are
possibilities
that
the
sprocket
lower
R
button
may
be
undone
because
the
adhesives
applied
to
it
lose
resistance
to
separation,
so
that
be
sure
not
to
miss
it.
Removal
of
Top
Cover
1.
Peel
off
the
W
lever
leather
(147660).
2.
Remove
the
W
lever
SS
(66001037),
and
take
off
the
W
lever
(147651)
and
the
lever
mount
(147652).
Cautions:
The
W
lever
SS
is
of
the
left-handed
screw.
3.
Remove
the
top
cover
nut
(147659).
Begin
removal
of
the
shutter
dial.
Set
the
shutter
dial
at
1/TOOO,
and
ASA
at
100,
then
start
the
following
work.
4.
Remove
the
name
plate
SS
(133298).
The
disassembling
procedure
is
as
illustrated
in
the
right
figure.
Name
plate
SS
(133298)
ASA100
shutter
1/1000
Shutter
dial
nameplate
(147415
ASA
name
plate
(133295)
ASA
spring
(147416)
Sdial
(147418)
ASA
color
(147409)
1
