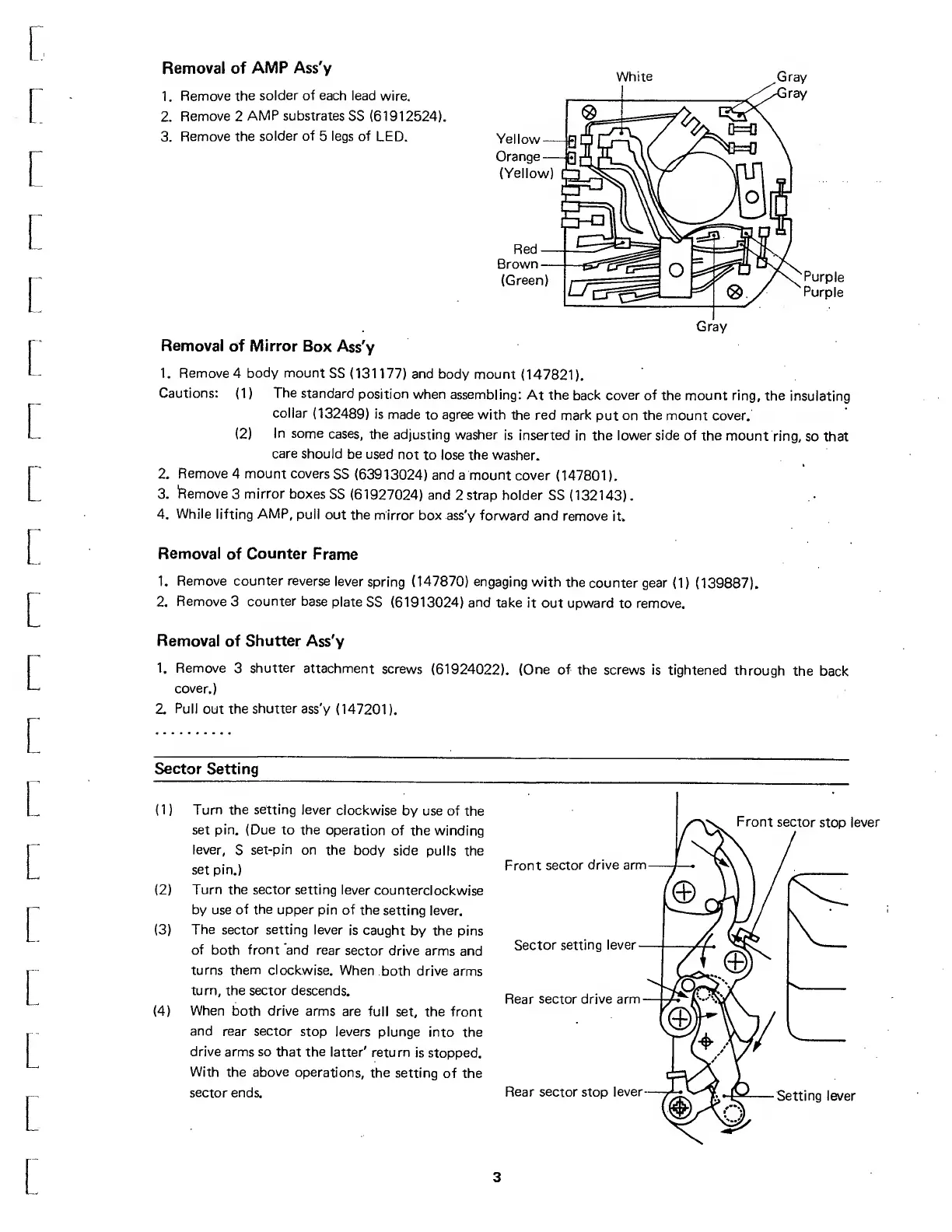

Removal
of
AMP
Ass'y
1.
Remove
the
solder
of
each
lead
wire.
2.
Remove
2
AMP
substrates
SS
(61912524).
3.
Remove
the
solder
of
5
legs
of
LED.
Removal
of
Mirror
Box
Ass'y
Yellow-—10
Orange
(Yellow)
Red
Brown
(Green)
Purple
Purple
Gray
1
.
Remove4
body
mount
SS
(131177)
and
body
mount
(147821).
Cautions:
(1)
The
standard
position
when
assembling:
At
the
back
cover
of
the
mount
ring,
the
insulating
collar
(132489)
is
made
to
agree
with
the
red
mark
put
on
the
mount
cover.
(2)
I
n
some
cases,
the
adjusting
washer
is
inserted
in
the
lower
side
of
the
mount
ring,
so
that
care
should
be
used
not
to
lose
the
washer.
2.
Remove
4
mount
covers
SS
(63913024)
and
a
mount
cover
(147801).
3.
Remove
3
mirror
boxes
SS
(61927024)
and
2
strap
holder
SS
(132143).
4.
While
lifting
AMP,
pull
out
the
mirror
box
ass'y
forward
and
remove
it.
Removal
of
Counter
Frame
1.
Remove
counter
reverse
lever
spring
(147870)
engaging
with
the
counter
gear
(1)
(139887).
2.
Remove
3
counter
base
plate
SS
(61913024)
and
take
it
out
upward
to
remove.
Removal
of
Shutter
Ass'y
1.
Remove
3
shutter
attachment
screws
(61924022).
(One
of
the
screws
is
tightened
through
the
back
cover.)
Z
Pull
out
the
shutter
ass'y
(147201).
Sector
Setting
(1)
Turn
the
setting
lever
clockwise
by
use
of
the
set
pin.
(Due
to
the
operation
of
the
winding
lever,
S
set-pin
on
the
body
side
pulls
the
set
pin.)
(2)
Turn
the
sector
setting
lever
counterclockwise
by
use
of
the
upper
pin
of
the
setting
lever.
(3)
The
sector
setting
lever
is
caught
by
the
pins
of
both
front
and
rear
sector
drive
arms
and
turns
them
clockwise.
When
both
drive
arms
turn,
the
sector
descends.
(4)
When
both
drive
arms
are
full
set,
the
front
and
rear
sector
stop
levers
plunge
into
the
drive
arms
so
that
the
latter'
return
is
stopped.
With
the
above
operations,
the
setting
of
the
sector
ends.
3
