YBIKE Explorer - Attach the Clamps

2
.
A
ttach
the clamps

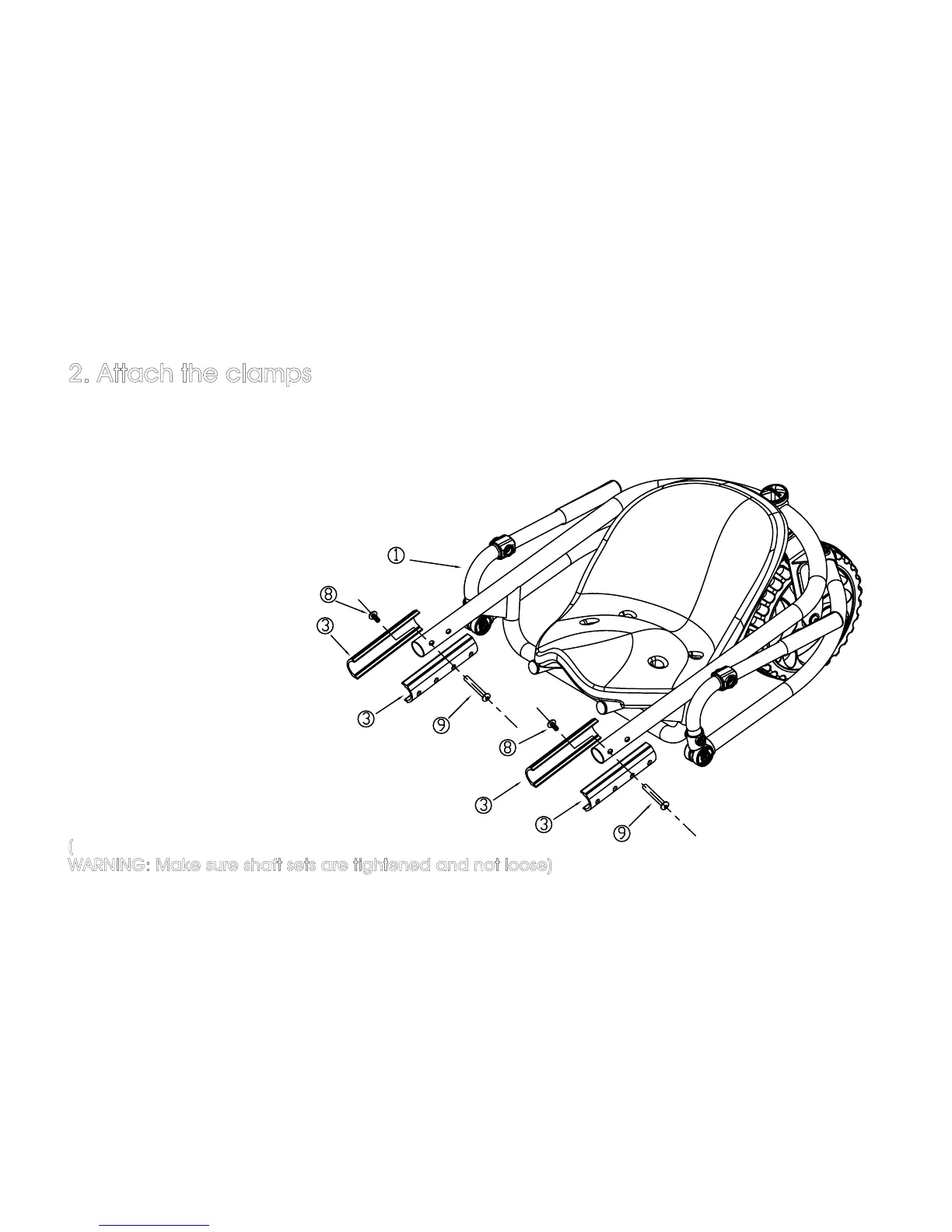

Take 2 clamps (No. 3), and place each clamp on either side of the rear frame (No. 1) tube to
align with the holes provided as shown in picture below.
Use the clamp shaft (No. 9) and bolt
(No. 8) to slightly tighten
and hold the clamps in place.
(
WARN
ING:
M
ak
e
sure
s
haft
se
ts
are tigh
t
e
ne
d a
nd n
ot l
oo
se
)
6
