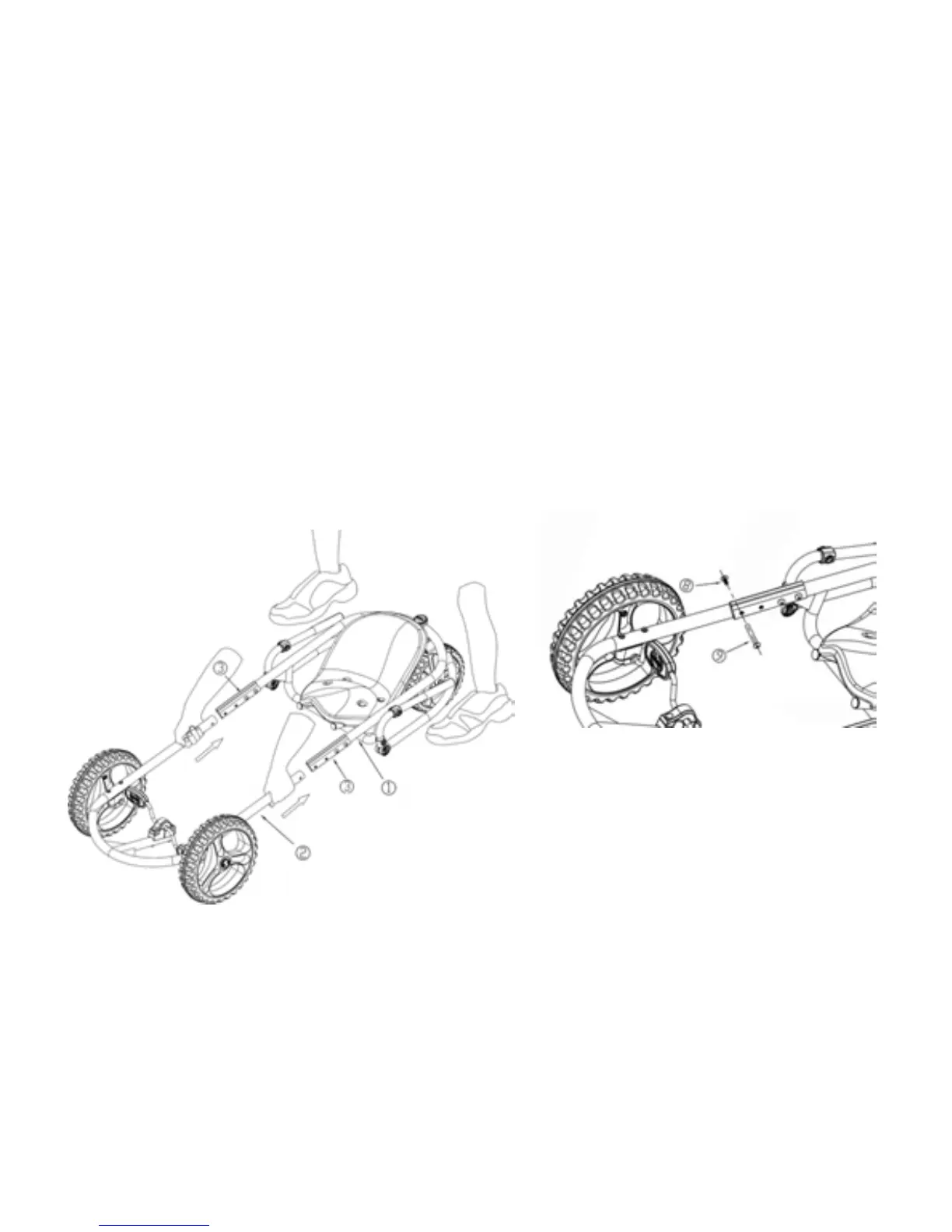

3. Body Assembly A
Take the rear frame (No. 1) and place it
between your legs so that the frame faces
forward as in picture A below. Take the front
frame (No. 2) with both hands slide it into the
slightly tightened tube clamps (No. 3) on the rear
frame until it fits together tightly and the holes
align.
Insert clamp shaft (no. 9) into the last hole on
the clamp (No. 3) and fasten with bolt (No. 8) to
secure the front and rear frame in place as in
the picture B below.
Note: Do not insert the 3rd hole shaft yet,
as this will be done in the next step (4).
7
A
B
To Next Page
