Yealink SIP-T32G User Manual

User Guide SIP-T32G IP Phone
12
3) Connect the Network and Power:
You have two options for power and network connections. Your system administrator will
advise you which one to use.
 AC power
 Power over Ethernet (PoE)

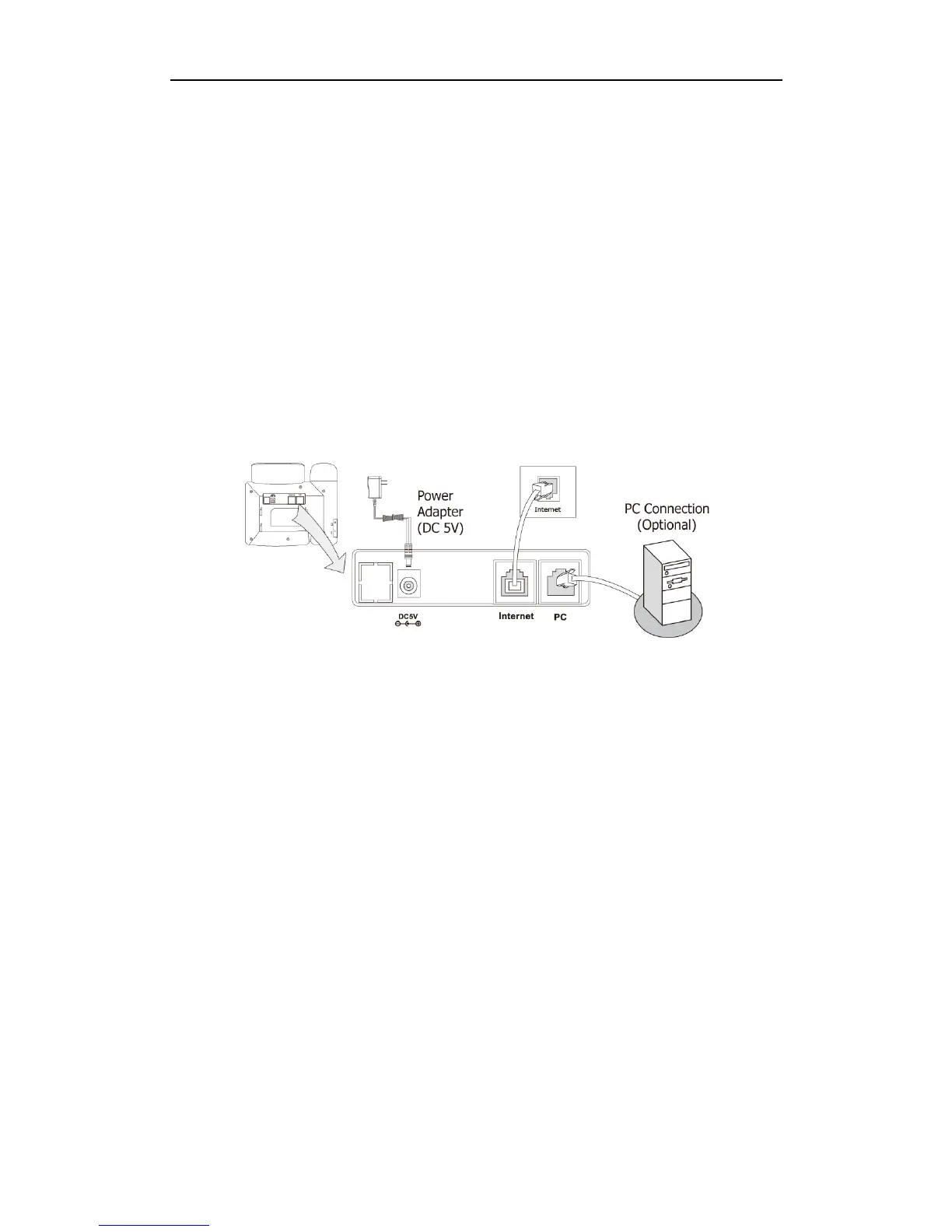

AC Power
To connect the AC power:
1. Connect the DC plug on the power adapter to the DC5V port on the phone and
connect the other end of the power adapter into an electrical power outlet.
2. Connect the supplied Ethernet cable between the Internet port on the phone and
the Internet port in your network or switch/hub device port.
Power over Ethernet
Using a regular Ethernet cable, the SIP-T32G IP phone can be powered from a PoE (IEEE
802.3af) compliant switch or hub.

Yealink SIP-T32G Specifications

General

Keypad number of keys	32
Speakerphone	Yes
Voice codecs	G.711, G.722, G.723.1, G.726
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Touchscreen	-
Display resolution	400 x 240 pixels
Display number of colors	262144 colors
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Bluetooth	No
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output voltage	5 V
Power consumption (typical)	4 W
Operating relative humidity (H-H)	10 - 95 %
Compliance industry standards	IEEE 802.3af
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	200 mm
Width	185 mm
Height	90 mm
Weight	770 g
