Installation_Guide | 1 - Installation Guide | 11
Port Description
Orange: blinking The BRI line is disconnected.BRI
Orange: static The BRI line is connected or in use.
Red: static The PSTN line is idle.
Red: blinking slowly No PSTN line is connected to the
FXO port.
FXO
Red: blinking rapidly The PSTN line is busy.

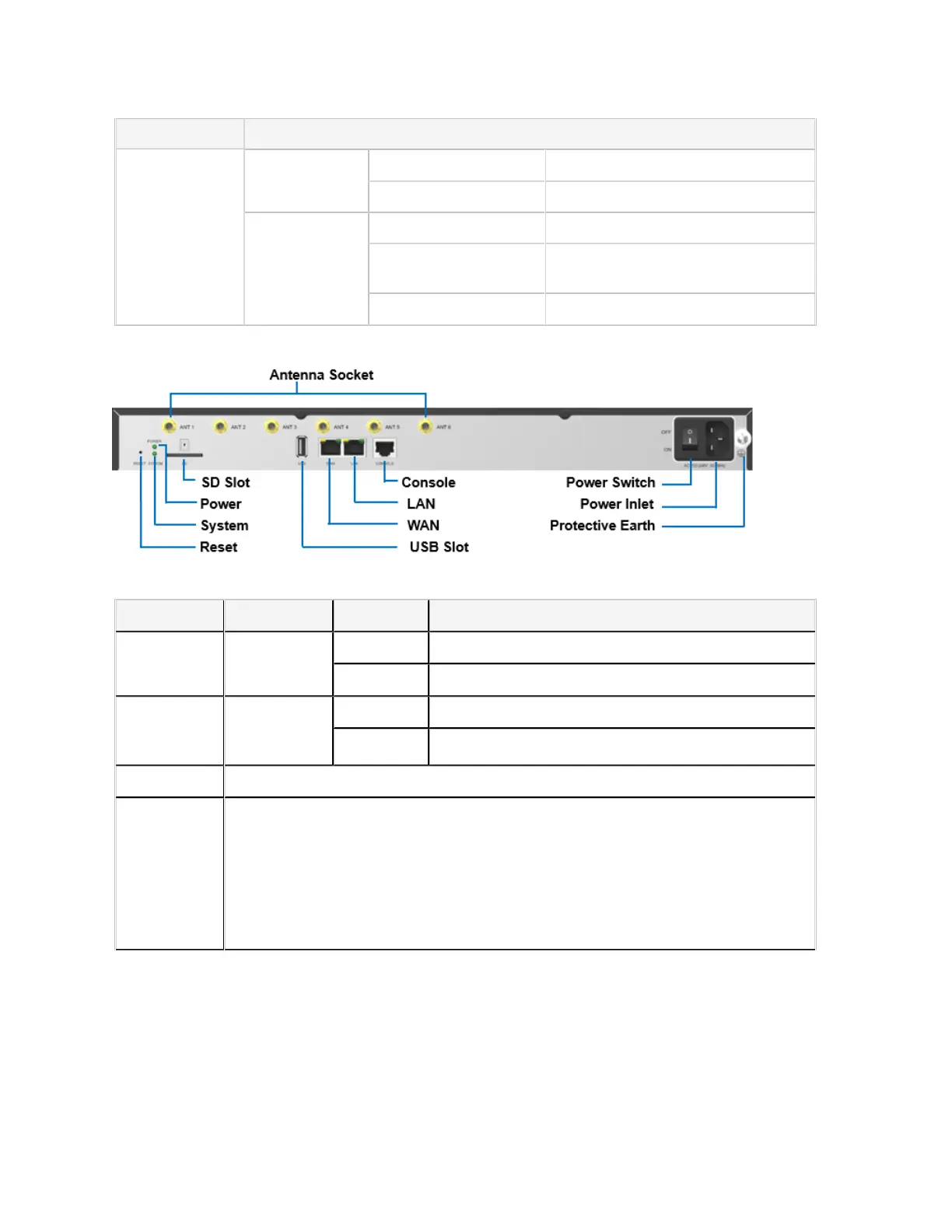

Rear Panel
Table 8: Descriptions of S100 Rear Panel
LED Indication Status Description
On The power is switched on.POWER Power status
Off The power is switched off.
Blinking The system is running properly.SYSTEM System
status
Static/Off The system goes wrong.
Port Description
WAN/LAN
Yeastar S100 provides two 10/100/1000Mbps adaptive RJ45 Ethernet ports, and
supports 3 Ethernet modes. The default mode is “Single”.
• Single: LAN port will be used for uplink connection. WAN port is disabled.
• Bridge: LAN port will be used for uplink connection. WAN port will be used as
bridge for PC connection.
• Dual: Both LAN and WAN ports can be used for uplink connection.
