LED Indication Status Description
Red: blinking
rapidly
The PSTN line is busy.
Port Description
WAN/LAN
Yeastar S50 provides two 10/100/1000Mbps adaptive RJ45 Ethernet ports, and
supports 3 Ethernet modes. The default mode is “Single”.
• Single: LAN port will be used for uplink connection. WAN port is disabled.
• Bridge: LAN port will be used for uplink connection. WAN port will be used as
bridge for PC connection.
• Dual: Both LAN and WAN ports can be used for uplink connection.
SD Insert SD card to store auto recording files.
1-8 Port
(RJ11 port)
• FXO port(red light): For the connection of PSTN lines or FXS ports of traditional
PBX.
• FXS port (green light): For the connection of analog phones.
• BRI port (orange light): For the connection of ISDN BRI lines.
Note: The sequence number of the ports corresponds to that of the
Indicator lights in the front panel. (I.e. the LED lights in the front indicate the
connection status of the corresponding ports at the back panel.)
Reset button Press and hold for 10 seconds to restore the factory defaults.

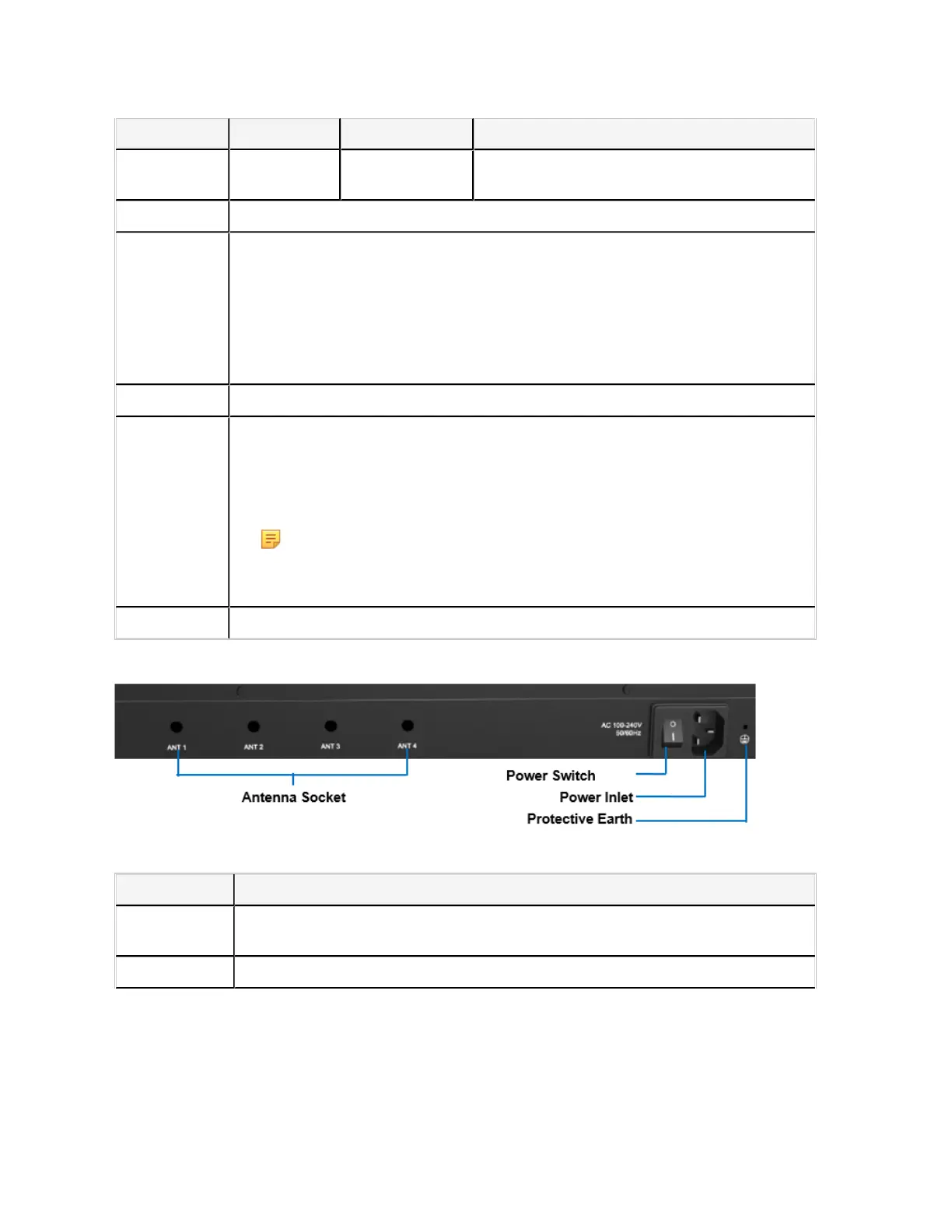

Rear Panel
Table 6: Descriptions of S50 Rear Panel
Port Description
Antenna
Socket
Rotate the antenna into the Antenna Socket.
Power Switch Press this button to switch on/off the device.
