yellow jacket BULLET X User Manual

D
C
B
A
B
C
D
123
456
7
8
8
7
6
5
4
3 2
1
93641
OR
93513
93031
92959
93047
93050
93262
92933
92935
92960
93368
93390
93391
93394
93399
92941
92961
92950
92942
92940
92963
92964
92962

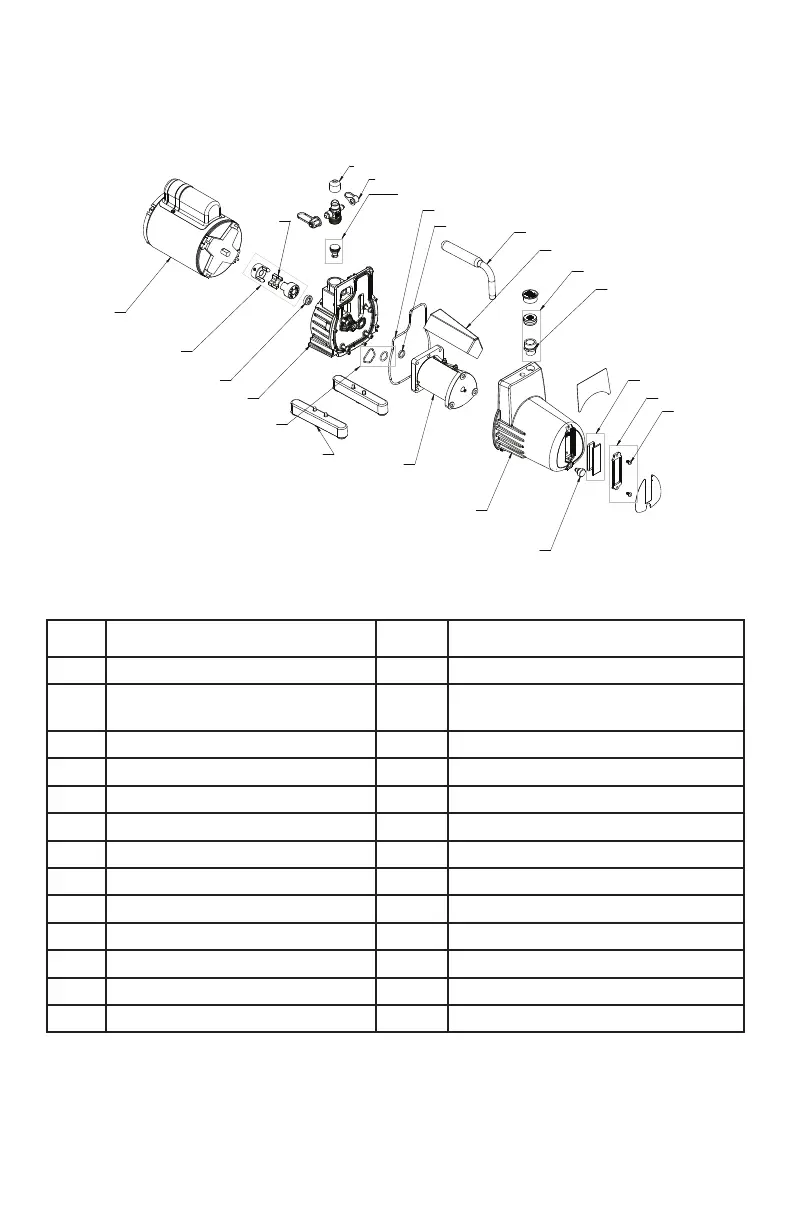

Replacement Parts
Damaged supply cords must be replaced by special assemblies available from the manufacturer or its distributors
10
Part # Description Part # Description
93641 Motor 93394 1/4 Flare Cap and Strap
93513 1/2 hp Motor Dual Voltage 115/60,
230/50hz
93399 3/8 Flare Cap and Strap
93031 Shaft Seal 92941 Bullet Pump Handle
92959 Universal Pump Leg 92961 Bullet Anti Suckback asm
93047 Drive Coupling 95431 8' EU Cord Detachable iec-320
93050 Coupling Spider For 93047 95432 8' UK Cord Detachable iec-320
93262 Cartridge Centering Ring 92950 7 cfm Cartridge with Intake Gasket
92933 Sight Glass Screws 92942 Pump Cover Gasket
92935 Sight Glass (Glass+ O-Ring Only) 92940 Cartridge Baffle
92960 Sight Glass (Bezel + Screws Only) 92962 Cartridge Gasket
93368 Oil Drain Plug asm 92963 Pump Cover Assembly
93390 Oil Fill Cap asm 92964 Mount Body Assembly
93391 Oil Fill Fitting
