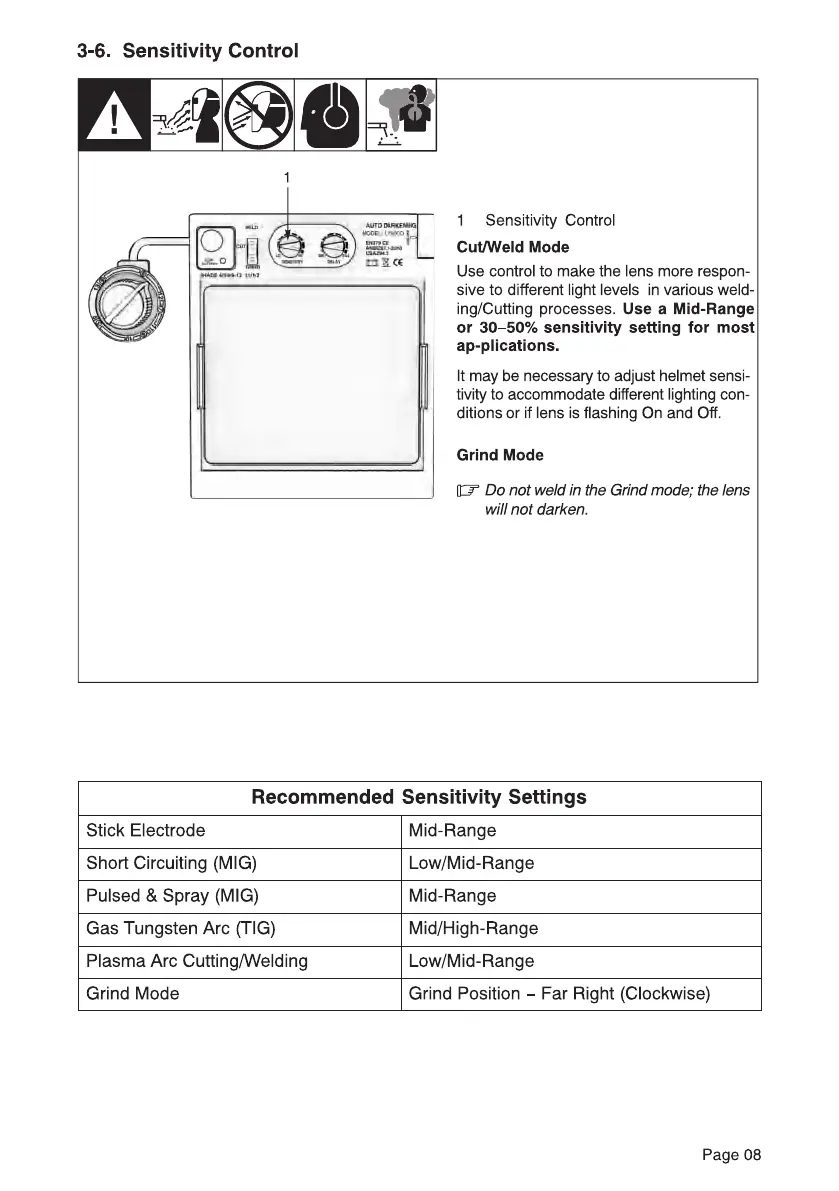

3-6. Sensitivity Control
1 Sensitivity Control
Cut/Weld Mode
Use control to make the lens more respon-
Sive to different light levels in various weld-
ing/Cutting processes. Use a Mid-Range
or 30-50% sensitivity setting for most
ap-plications.
It may be necessary to adjust helmet sensi-
tivity to accommodate different lighting con-
ditions or if lens is flashing On and Off.
Grind Mode
Do not weld in the Grind mode; the lens
will not darken.
Recommended Sensitivity Settings
Stick Electrode
Short Circuiting (MIG)
Pulsed & Spray (MIG)
Gas Tungsten Arc (TIG)
Plasma Arc Cutting/Welding
Grind Mode
Mid-Range
Low/Mid-Range
Mid-Range
Mid/High-Range
Low/Mid-Range
Grind Position - Far Right (Clockwise)
Page 08
