7. Gun temperature correction
settings
For example, the temperature of the air
gun to an increase of IOOC:
Soldering iron temperature correction is
set, immediately by the seventh function
button "HOT AIR" flashing display, while
the temperature of the air gun display
windows, "00", increase buttons to the
wind the gun temperature display window
shows "l O", stop the operation of four
seconds. "HOT AIR"stops flashing, the
program automatically memory and exit
the function setting, set to complete.
Press the function button once, so the
feature set to complete.
Notice:
I.
HOT AIR
AIR
Counterclockwise
Rotation meiosis
Air gun calibration
temperature
SOLDERING
HOT AIR
Clockwise Addend
Function button
Operation shown in Figure 7
The air gun and soldering iron calibrated temperature is O in factory, has been
precisely calibrated air gun and soldering iron temperature of the factory, do
not arbitrarily change the calibration temperature of the air gun and soldering
iron.
When the only open air gun, the function set of the order is:
A. Air gun temperature settings
B. Auto / Manual settings
C. Fahrenheit /Celsius show conversion settings
D. Air gun temperature calibration settings
When the only open soldering iron, the function set of the order is:
A. Iron temperature settings
B. Iron sleep time settings
C. Fahrenheit/ Celsius show conversion settings
D. Iron temperature calibration settings
Any function set up, stop the operation for 4 seconds, the program has autom-
atic memory and exit the feature set, if you need to set 1 of the function at the
feature set order to re-set.
For example, set the iron sleep time of 10 minutes(open air gun and soldering
iron):
Continuous press the 3 function button , " SLEEP " display flashing, press the
increase and decrease button so that iron sleep time display windows " 10 ",
stop the operation for 4 seconds, "SLEEP "display stops flashing, the program
automatically memory and exit the setup is complete.
11
1.
2.
3.
4.
5.
6.
7.
8.
9.

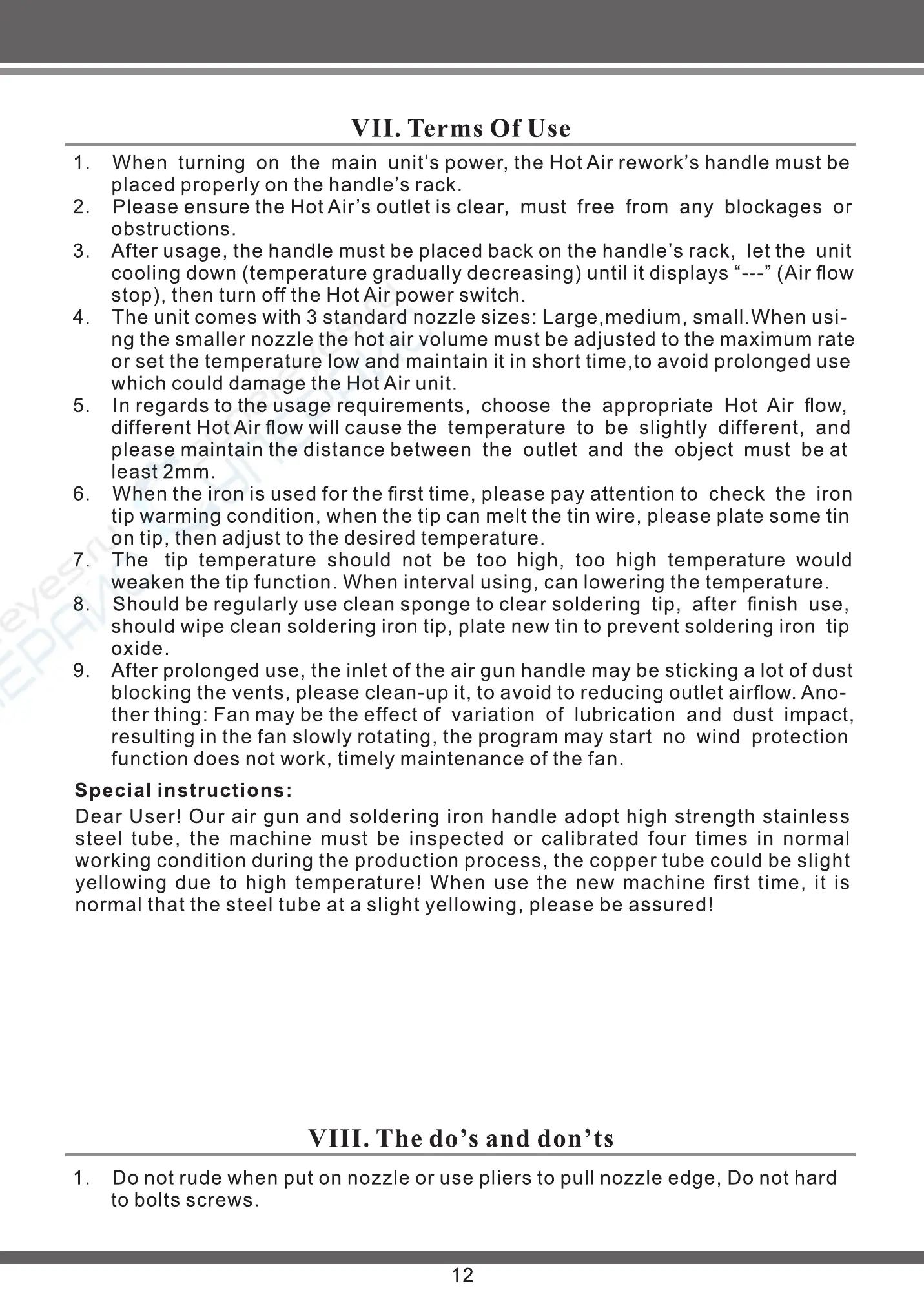

VII. Terms Of Use
When turning on the main unit's power, the Hot Air rework's handle must be
placed properly on the handle's rack.
Please ensure the Hot Air's outlet is clear, must free from any blockages or
obstructions.
After usage, the handle must be placed back on the handle's rack, let the unit
cooling down (temperature gradually decreasing) until it displays "---" (Air flow
stop), then turn off the HotAir power switch.
The unit comes with 3 standard nozzle sizes: Large,medium, small.When usi-
ng the smaller nozzle the hot air volume must be adjusted to the maximum rate
or set the temperature low and maintain it in short time,to avoid prolonged use
which could damage the Hot Air unit.
In regards to the usage requirements, choose the appropriate Hot Air flow,
different Hot Airflow will cause the temperature to be slightly different, and
please maintain the distance between the outlet and the object must be at
least 2mm.
When the iron is used for the first time, please pay attention to check the iron
tip warming condition, when the tip can melt the tin wire, please plate some tin
on tip, then adjust to the desired temperature.
The tip temperature should not be too high, too high temperature would
weaken the tip function. When interval using, can lowering the temperature.
Should be regularly use clean sponge to clear soldering tip, after finish use,
should wipe clean soldering iron tip, plate new tin to prevent soldering iron tip
oxide.
After prolonged use, the inlet of the air gun handle may be sticking a lot of dust
blocking the vents, please clean-up it, to avoid to reducing outlet airflow. Ano-
ther thing: Fan may be the effect of variation of lubrication and dust impact,
resulting in the fan slowly rotating, the program may start no wind protection
function does not work, timely maintenance of the fan.
Special instructions:
Dear User! Our air gun and soldering iron handle adopt high strength stainless
steel tube, the machine must be inspected or calibrated four times in normal
working condition during the production process, the copper tube could be slight
yellowing due to high temperature! When use the new machine first time, it is
normal that the steel tube at a slight yellowing, please be assured!
VIII. The do's and don'ts
Do not rude when put on nozzle or use pliers to pull nozzle edge, Do not hard
to bolts screws.
12
