INSTALLER'S
INSTRUCTION
INSTALLER'S
INSTRUCTION
P21 OF 38

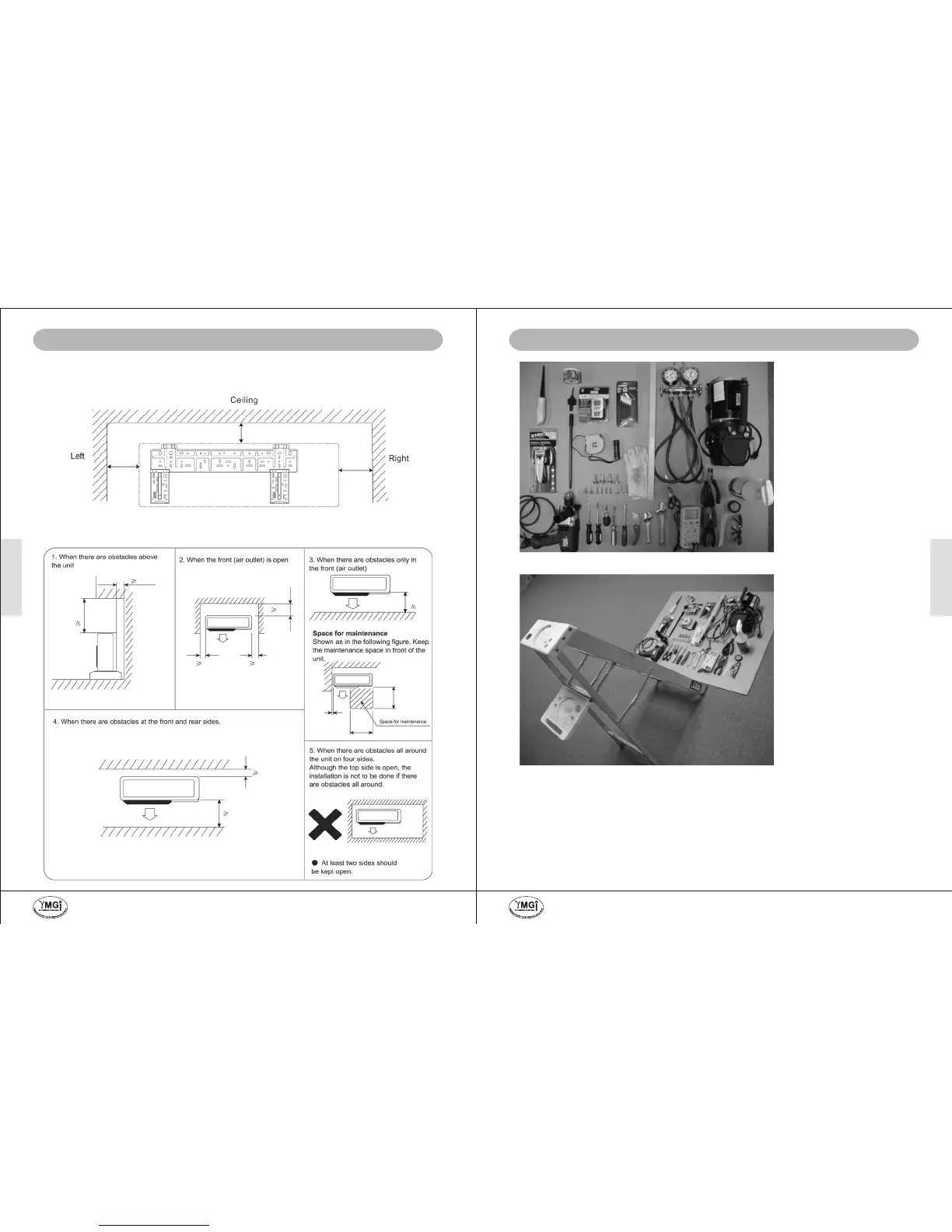

INSTALLATION CLEARANCE REQUIREMENTS-INDOOR UNIT
MAKE SURE OF ENOUGH SPACE FOR INSTALLATION AND MAINTENANCE
To take into consideration the operational convenience and safety in installation, it is recommended to ensure
enough space between the unit and the walls.
Attention: If there are some additional function devices to install on the unit, be sure add to the
installation space for the function devices.
>7.8 In
>6 In
>6 In
(If piping runs
to right)
(If piping runs
to Left)
INSTALLATION CLEARANCE REQUIREMENTS-OUTDOOR UNIT
8 In
18 In
6 In
8 In1 In
18 In
6 In
38 In
P22 OF 38
1) Mounting Indoor & Outdoor
Units and Running
Piping/Wiring
Ruler (Not Shown)
Stud-Finder
Dry-Wall Saw
Electric Drill
3" Hole Saw
Drill Extension
Hammer Drill and Bit (Not Shown)
Measuring Tape
Level
Flash Light
Screw Driver (Phillps and Flat)
Hammer
Knife
Scissors
Goggled Glass
Mask
Gloves
Ladder
2) Refrigeration Related Work
RECOMMENDED TOOLS FOR INSTALLATION
3) Electrical Related Installation
Wire Cutter
Wire Stripper
Sharp Plier
Cable Ties
Black Tape for Electrical Use
MeterElectrical
Clamp Meter (Not Shown)
Manifold
Infra Thermometer (Not Shown)
4) Trial Running Units and
Inspection
Individual Set (Use Two at
One Time)
Flare-Nut Tool Set (Not Shown)
Hex Head Allen Wrentch Sets (Metric
and Imperial)
Brazing Rods and Brazing Torch
Outfit for AC Application (Not Shown)
Brazing Flux
Nitrogen Cylinder for Positive
Pressure Leakage Check (Not Shown)
Soap Bubble for Positive Pressure
Leakage Check (Not Shown)
Vacuum Pump for Negative Pressure
Leakage Check
Helium Refrigerant Minor Leakage
Check (Not Shown)
Manifold
wrench
8 In min
18 In
min
18 In min
