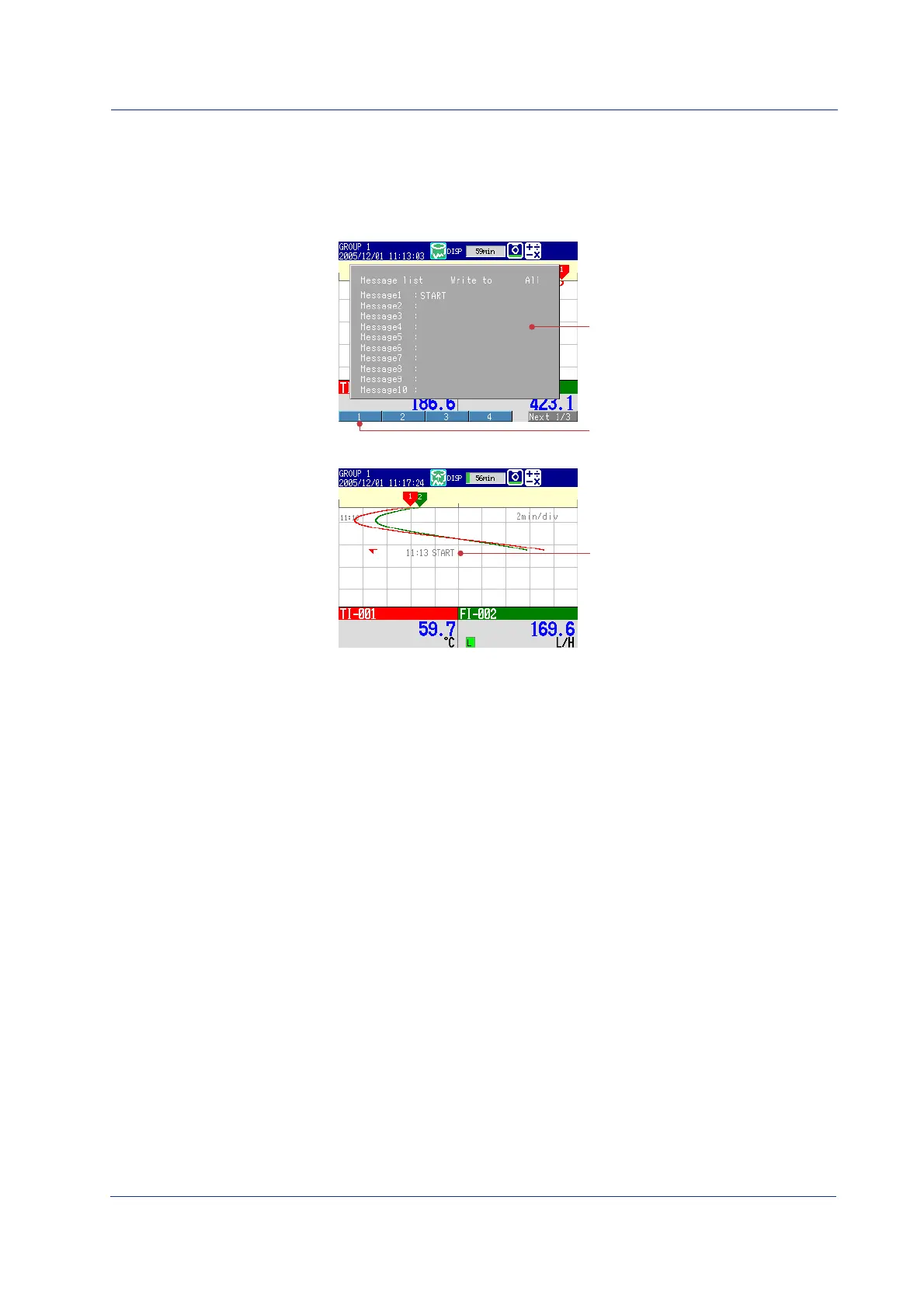

Writing Message Number 1 “START”

This operation can be carried out while memory sample is in progress. The message is

displayed on the trend display. Show the trend display first.

. Press FUNC (display the FUNC key menu), press the Message soft key, and

press the 1-10 soft key.

Show the message registration windo

1 soft key

. Press the 1 soft key.

Shows the message

(time, message, and message mark)

Also recorded to the internal memory

Operation complete.

Operation

Table of Contents2
Foreword4
Safety Precautions4
Handling Precautions of the DX5
Handling Precautions of the External Storage Medium (CF Card)5
Checking the Contents of the Package6
Conventions Used in this Manual7
Opening the Electronic Manuals7
Introduction to Functions8
- Measured Items8
- Data Storage Function8
- Display Function8
- Other Functions8
- Daqstandard8
- DX System Configuration9
- Terminology9
Names of Parts10
DX1000/DX1000N Workflow12
Turning the Power ON/OFF (DX1002, DX1004, DX1006, and DX1012 Only)13
- Turning the Power on13
- Turning the Power off13
Basic Operation14
- Panel Keys and Display14
- Run Modes16
- Entering Values and Characters17
- Changing the Date/Time18
- Operation Example in the Setting Mode: Changing the Input Range19
- Operation Example in the Basic Setting Mode: Changing the Scan Interval21
- Inserting/Removing a CF Card23
- Saving the Setup Data25
- Loading the Setup Data26
Setting the Input Range and Alarm27
- Setup Example 1: Temperature Measurement Channel27
- Setup Example 2: Flow Rate Measurement Channel and Alarm28
Setting the Display29
- Setup Example 3: Assigning Channels to Groups29
- Setup Example 4: Setting the Time Scale30
Setting the Data Storage31
- Setup Example 5: Continuously Record Measured Data and Automatically Save31
- Setup Example 6: Saving Measured Data at the Specified Time33
Customizing the Operation34
- Setup Example 7: Assigning the Screen Image Data Storage Function to the USER Key34
- Setup Example 8: Registering Frequently Used Screens to the Favorite Key35
Operation37
- Starting the Memory Sample37
- Stopping the Memory Sample37
- Switching the Trend Display, Digital Display, and Bar Graph Display38
- Writing the Message "START39
Connecting to an Ethernet Network41
- Setup Example 9: Monitoring the DX on a PC Browser41
- Setup Example 10: Automatically Transferring the Measured Data File to an FTP Server44
Using DAQSTANDARD46
- Displaying the Measured Data on DAQSTANDARD46
Installation and Wiring47
- Installation Location47
- Installation Procedure48
- Input Signal Wiring50
- Optional Terminal Wiring53
- Connecting to the Ethernet Port56
- Power Supply Wiring57
Recommended Replacement Periods for Worn Parts59
Setup Items and Default Values60
- Setup Items in Setting Mode and Their Default Values61
- Setup Items in Basic Setting Mode and Their Default Values69
