YOKOGAWA Daqstation DX1000N Series

40 IM 04L41B01-02E
Connecting to an Ethernet Network

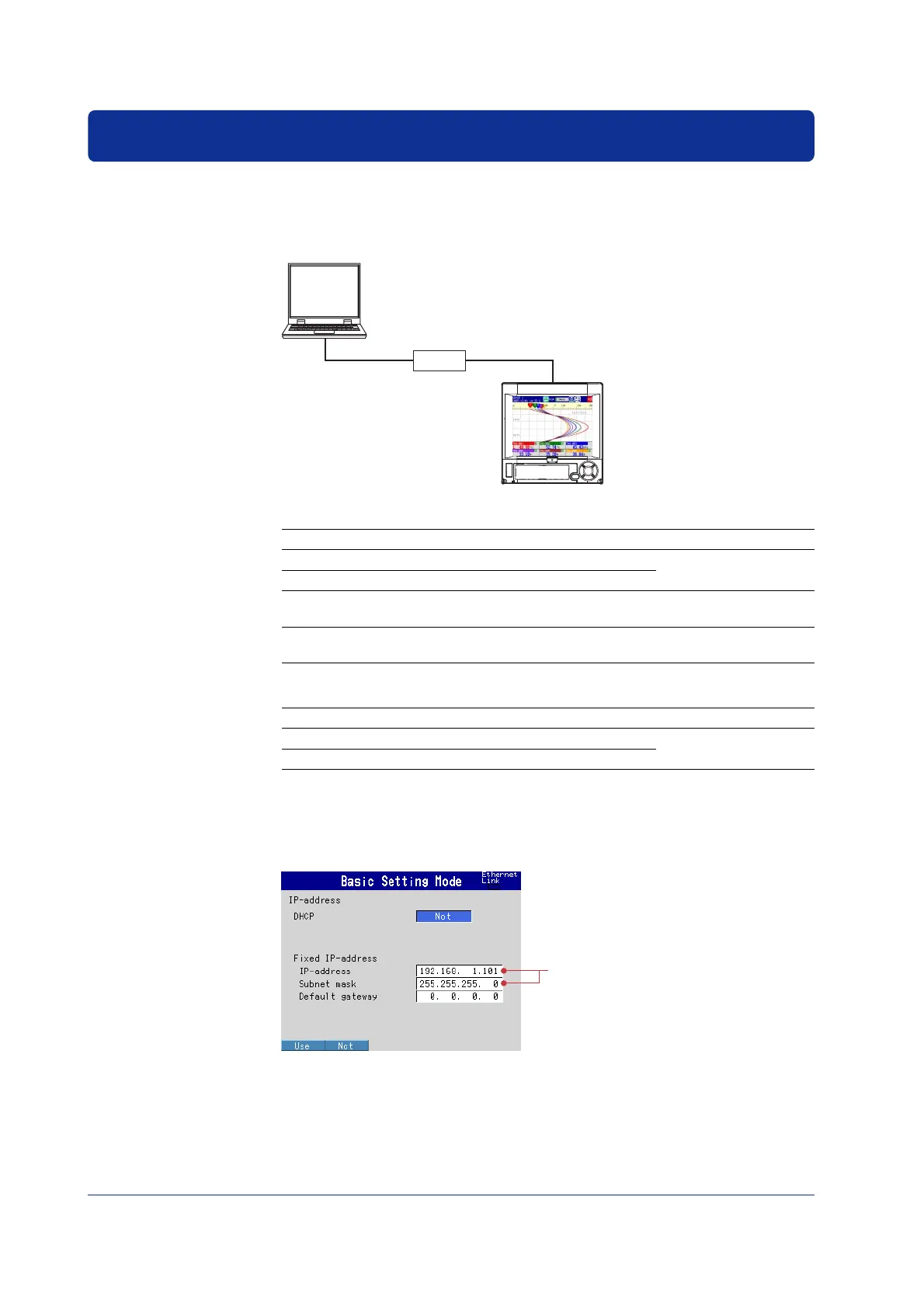

Setup Example 9: Monitoring the DX on a PC Browser
In this example, we will connect the PC and the DX via hub in a one-to-one relationship
and display and monitor the DX screen on a browser on the PC.
DX
PC
Ethernet
HUB
DX
Setup Item Description Number in the Figure
IP address 192.168.1.101 1
Subnet mask 255.255.255.0
Web server function Monitor from a Web browser on the PC 2
using operator page.
Access to the DX Display the Web page and do not set 3
access privileges.
PC
Setup Item Description Number in the Figure
IP address 192.168.1.100 4
Subnet mask 255.255.255.0
(1) IP Address of the DX
Press MENU (switch to the setting mode), hold down FUNC for 3 s (switch to the
basic setting mode)
From the basic setting menu, select: Communication (Ethernet) > IP-address
1
