5-30
IM 04L42B01-01E
• SpecifyingtheDisplayRange
Select the display range.
1.
Press the uparrowkey.

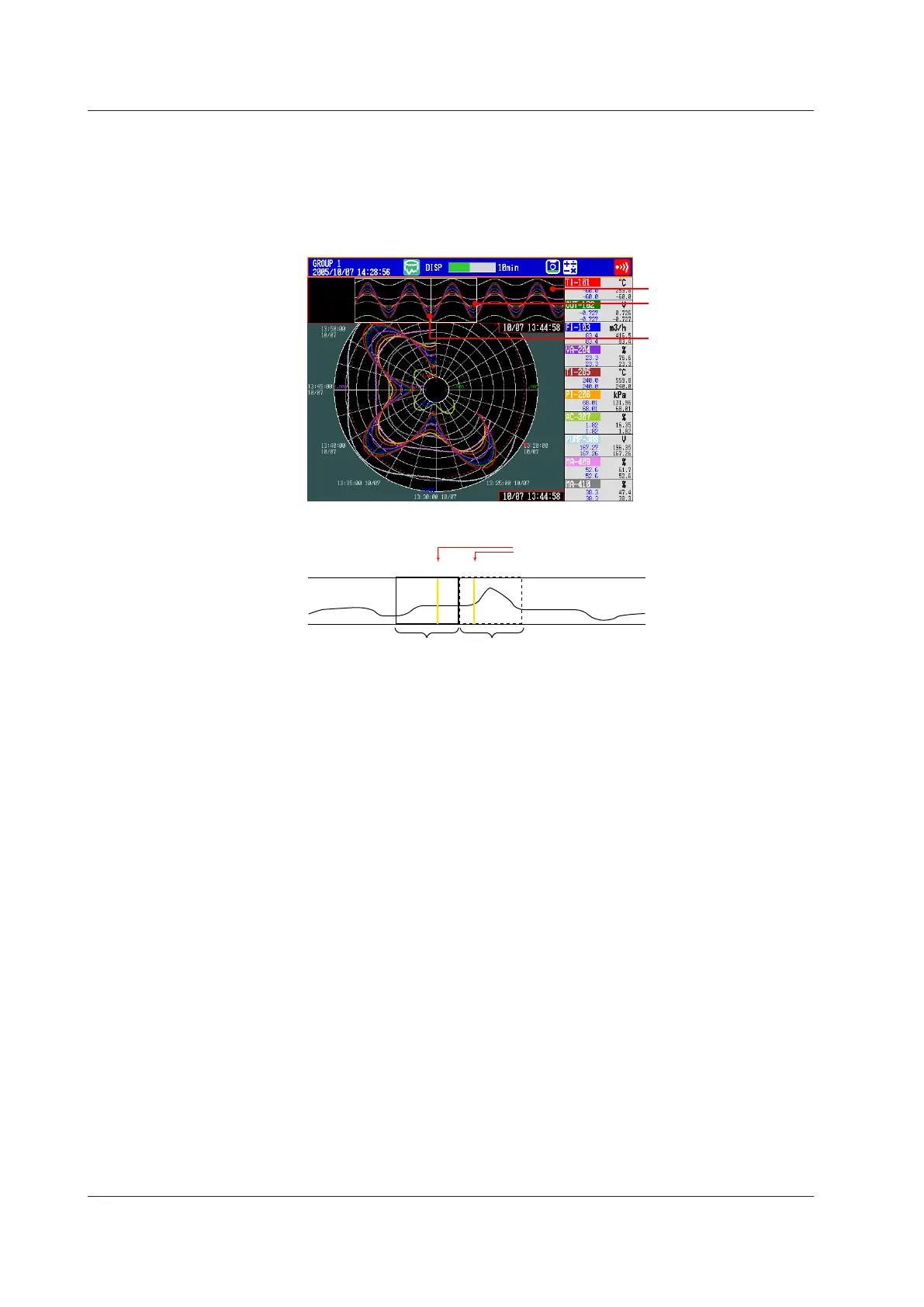

The waveform of the entire data range is displayed at the top section of the screen. The
white frame indicates the data range that is currently displayed. The yellow horizontal line is
the cursor.
Cursor (yellow line)
All data display
Displayed data range
(White frame)
2.
Press the leftandrightarrowkeys to move the cursor.
A is selected when the cursor position is at a.
B is selected when the cursor position is at b.
Displayed
A
a b
B
Cursor
3.
Press the downarrowkey.
The specified range is displayed.
• SelectingAnotherFile
To display data from another file, select the file from the memory summary.
• Message
On the historical trend, up to eight newest messages that exist before the cursor
position can be displayed.
5.12UsingtheCircularDisplay
