YOKOGAWA Daqstation DX2048 - Page 245

6-21
IM 04L42B01-01E
Saving and Loading Data
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index
• LoadingtheSetupDatafortheSettingMode
1.
Carry out the procedure below to show the display.
Press MENU (to switch to setting mode), and select the File tab > Loadsettings.
Press the CF or USB soft key
*
, and then press DISP/ENTER.
* When a CF card and a USB flash memory (/USB1 option) are being used.
Note
For details on how to use the Sort key, see section 6.7.

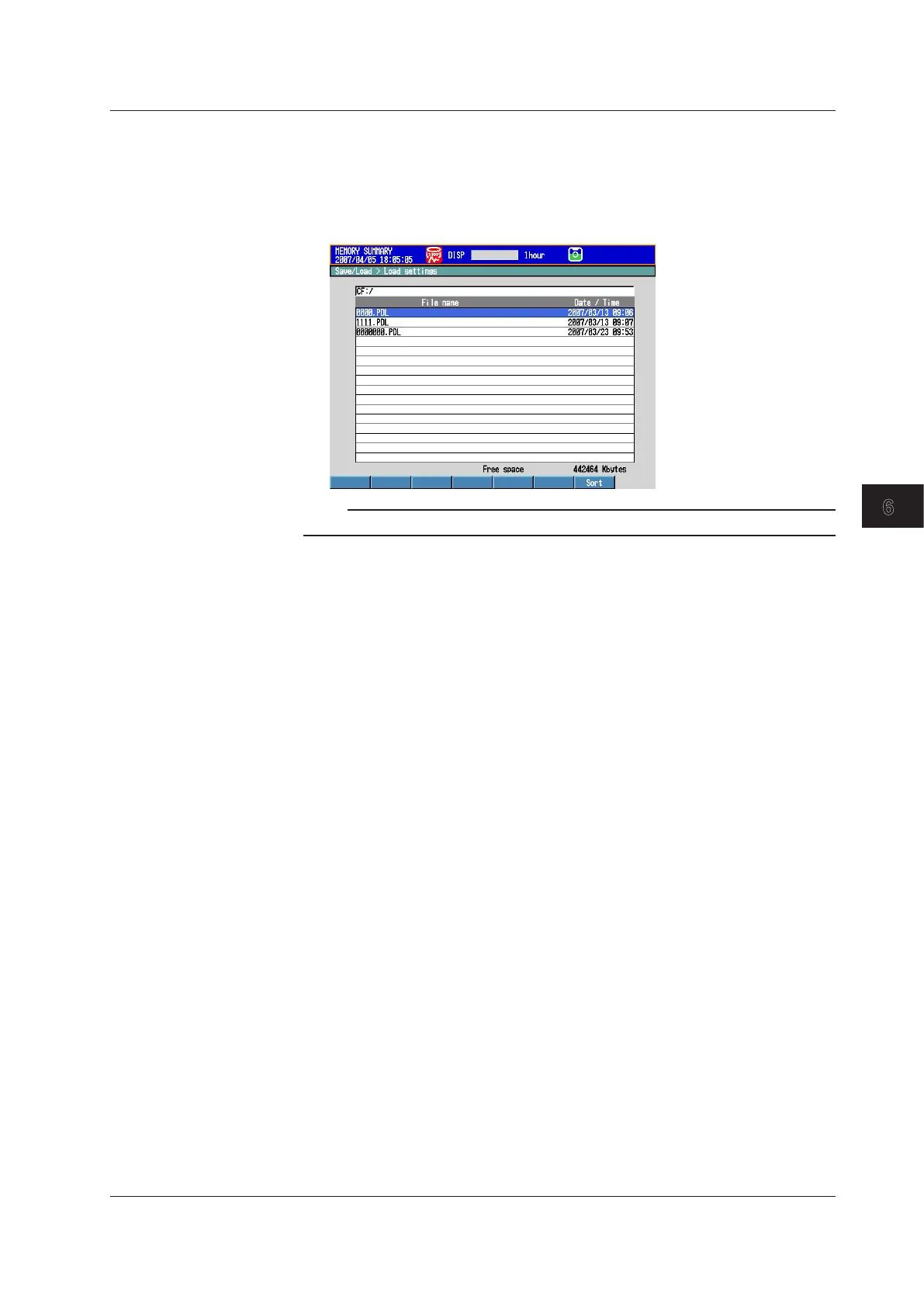

2.
Use DISP/ENTER and arrowkeys to select the setup file to be loaded.
* Setup data files are stored in the root directory [/].
To cancel the operation, press ESC.
3.
Press DISP/ENTER.
The setup data is loaded.
6.9Saving/LoadingtheSetupData
