2.HardwareSpecications
2-17
TI 30A10A30-01E

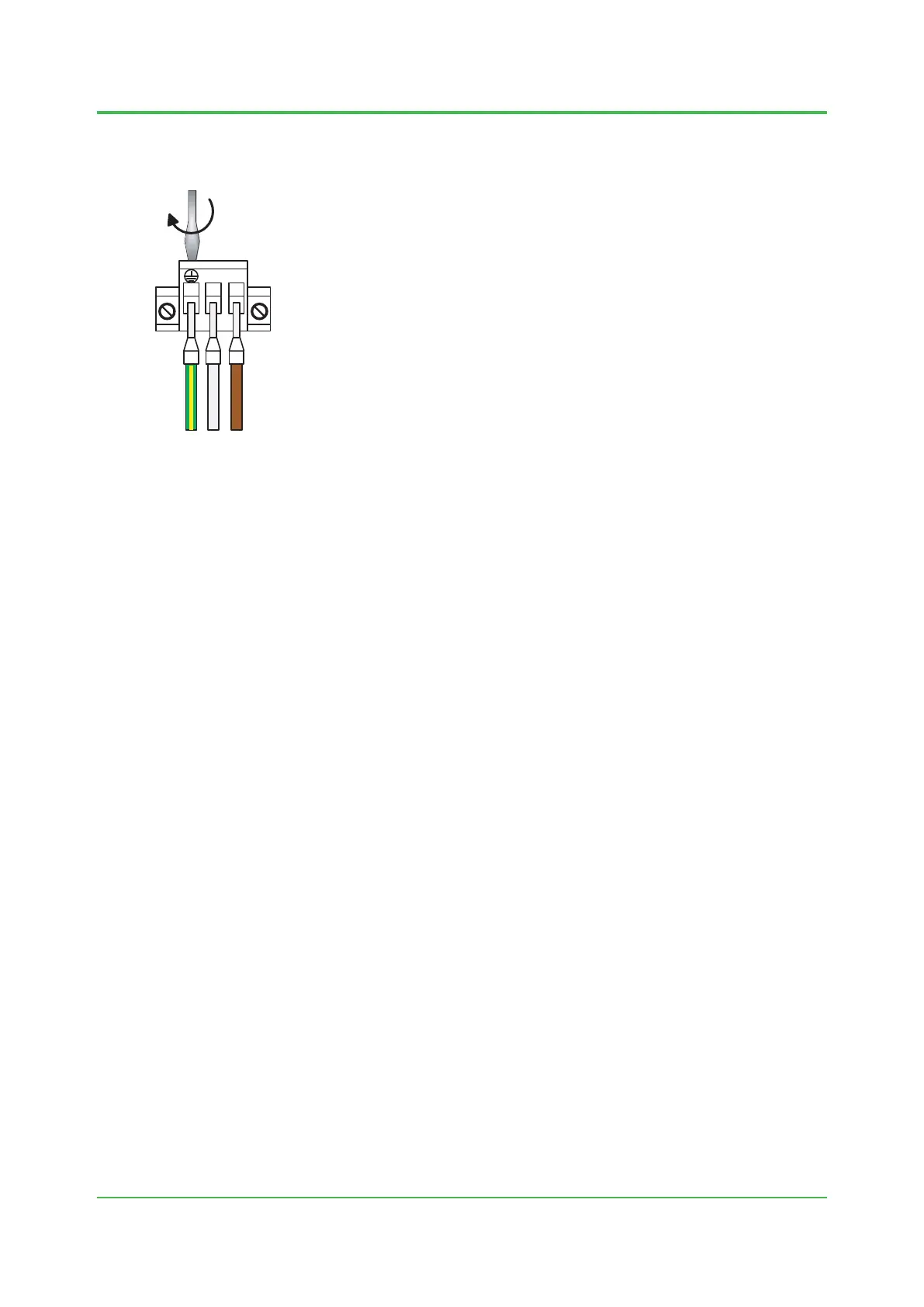

Cableclamptoterminalblock
As for wiring for a cable clamp to a terminal block, see below.
F020402.ai
-/N +/L
Figure Cableclamptoterminalblock
The use of drivers which comply with DIN 5264B standard (flat blade screw driver with tip
thickness 0.6 mm, axis radius 3.5 mm) is recommended when connecting cables.
Loosen the pressure clamp of the terminal block by turning the screw counterclockwise.
Firmly insert the assembled cable with sleeve into an appropriate pin of the terminal block.
Firmly fasten the pressure clamp of the terminal block by turning the screw clockwise. The
tightening torque for pressure clamp is 0.5 Nm (4.4 lbf •in).
Dec. 26, 2016-00
