Symbols and Conventions Used in Procedural Explanations
The contents of the procedural explanations are indicated using the following symbols.
This mark appears on the right side of the page to indicate features and settings that can be
operated and configured using the WTViewerFreePlus application software, which comes with the
instrument.
Procedure
Operations are explained using flowcharts. See the example below for an
explanation of how various operations are indicated. All procedures are written
under the assumption that you are starting operation at the beginning of the
procedure, so you may not need to carry out all the steps in a procedure when
you are changing the settings.

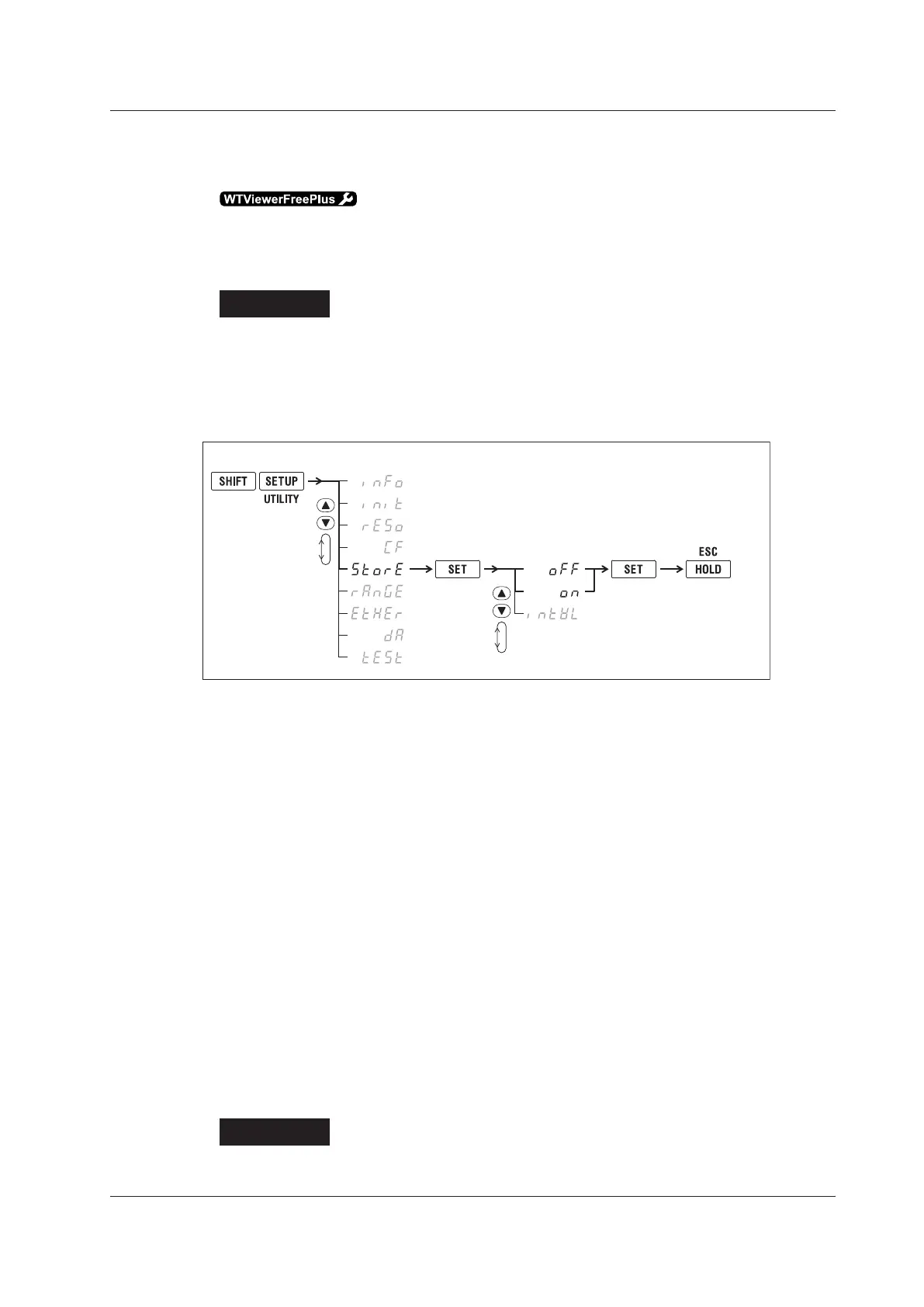

Example: Operations for turning the storage feature on and off
6.
4.
2.
(Display C)
Configure the storage feature.
(Display B)
1.
3.
5.
Confirm
the setting.
Close menu.
The above flow chart indicates the following operations.
You can configure items that are blinking.
1.
Press the SHIFT key so that it illuminates, and then press SETUP (UTILITY).
A menu appears in display B.
2.
Use ▲ or ▼ to select StorE.
Pressing either key cycles through 9 menu items.
3.
Press SET to confirm the selection of StorE.
The StorE function menu that you selected in step 2 appears in display C.
4.
Use ▲ or ▼ to select oFF or on.
Pressing either key cycles through 3 menu items.
5.
Press SET to confirm the selection of oFF.
The selected or set item is confirmed when you press SET.
A menu appears in display B.
6.
Press HOLD (ESC) to return the menu display to the measurement data display.
• When you are making a number positive (no sign) or negative (–) or setting a number, when the
digit in the display that the input will be added to is blank, an underscore flashes at the position of
the digit.
• While you are performing menu operations, to leave the menu display, press HOLD (ESC). All
setting changes that you have confirmed by pressing the SET
key will be reflected in the settings.
Explanation
This section describes the setup items and the limitations regarding the
procedures. It may not give a detailed explanation of the feature. For a detailed
explanation of the feature, see chapter 1 in the User’s Manual, IM WT310-01EN.
Conventions Used in This Manual
