Making Preparations for Measurements
1
2
3
4
5
6
7
App
Index
Explanation

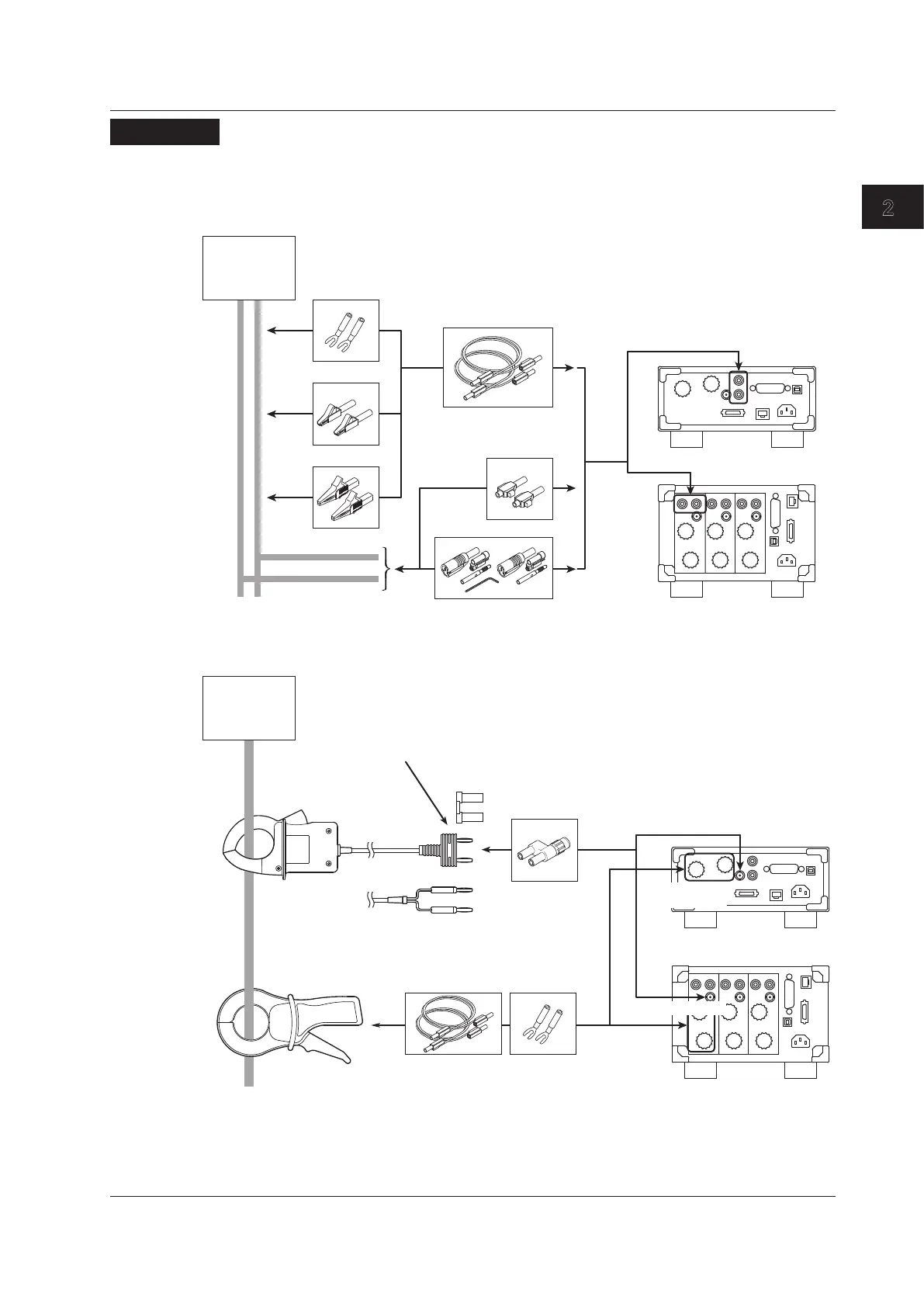

Wire the adapters that come with the WT310/WT310HC/WT330 or the adapters and various sensors
that are sold separately as shown below:
Wiring to a Voltage Input Terminal
Voltage under
measurement
758921
758922
758917
758923
758931
758929
WT310/WT310HC
Voltage input terminals
WT330
Voltage input terminals
Wiring to a Current Input Terminal
Use the clamp-on probes (sold separately) as shown below.
96030
96031
96001
(voltage output type)
751552
(current output type)
758917 758921
758924
Current under
measurement
Connecting a clamp-on probe
WT310/WT310HC
WT330
EXT input
terminal
Current input
terminals
Current input
terminals
EXT input terminal
96001 terminal
When you are connecting to the 96030, 96031,
or 758924, remove the terminal sleeves.
Sleeves
* The current input terminal and EXT input terminal cannot be wired (used) simultaneously.
2.6 Assembling the Adapters for the Voltage Input Terminals
