Making Preparations for Measurements

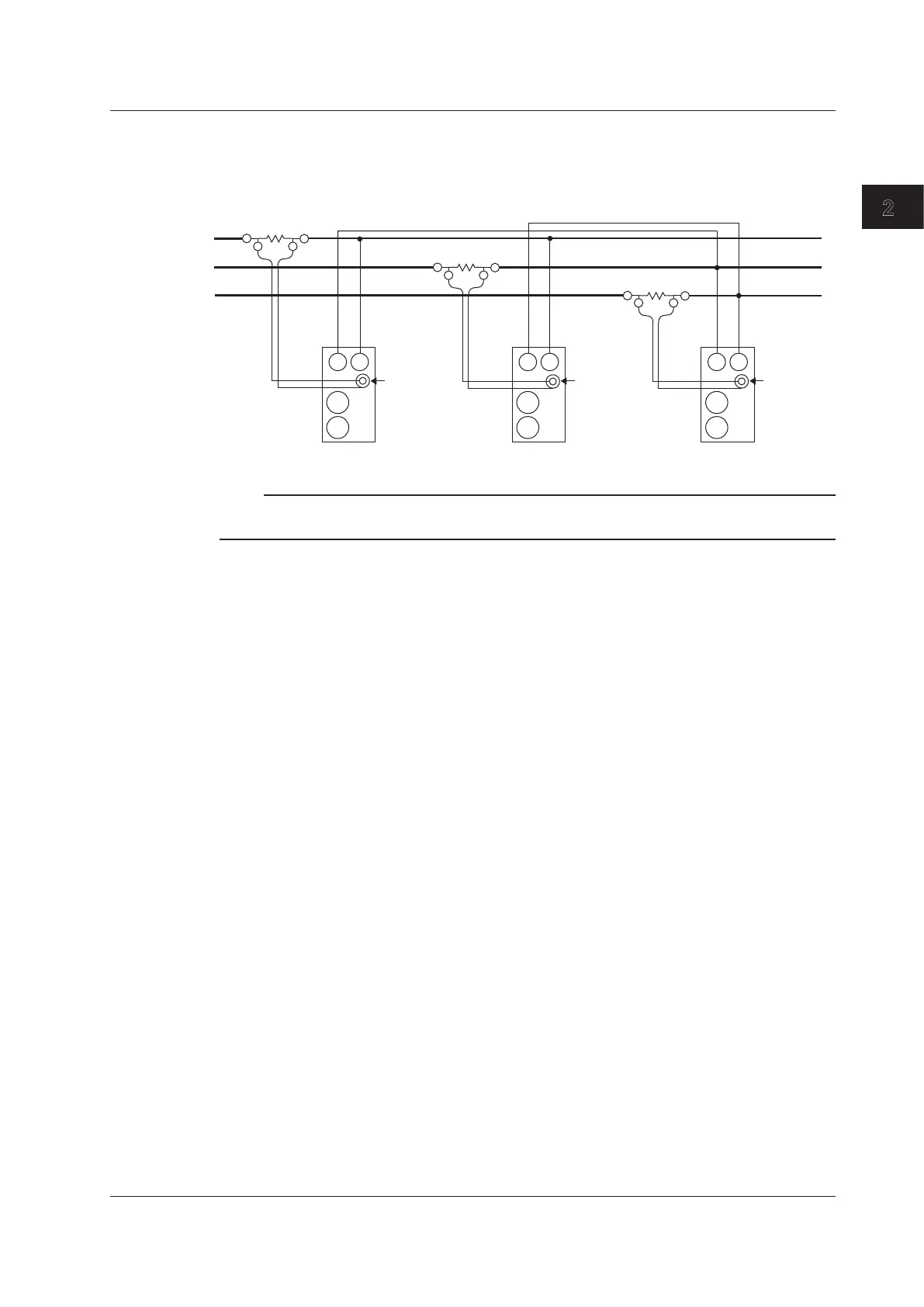

Wiring Example with the Three-Voltage, Three-Current Method
(3V3A) and Shunt-Type Current Sensors
Model: Applies to the WT333.
The wiring is connected to input elements 1, 2, and 3.
SOURCE LOAD
R
S
T
OUT LOUT H
OUT LOUT H
Element 3
Element 1
Element 2
OUT LOUT H
EXT EXT EXT
C
±
±
V
C
±
±
V
C
±
±
V
Note
For details about the relationship between the wiring system and how measured and computed values are
determined, see appendix 1, “Symbols and Determination of Measurement Functions.”
