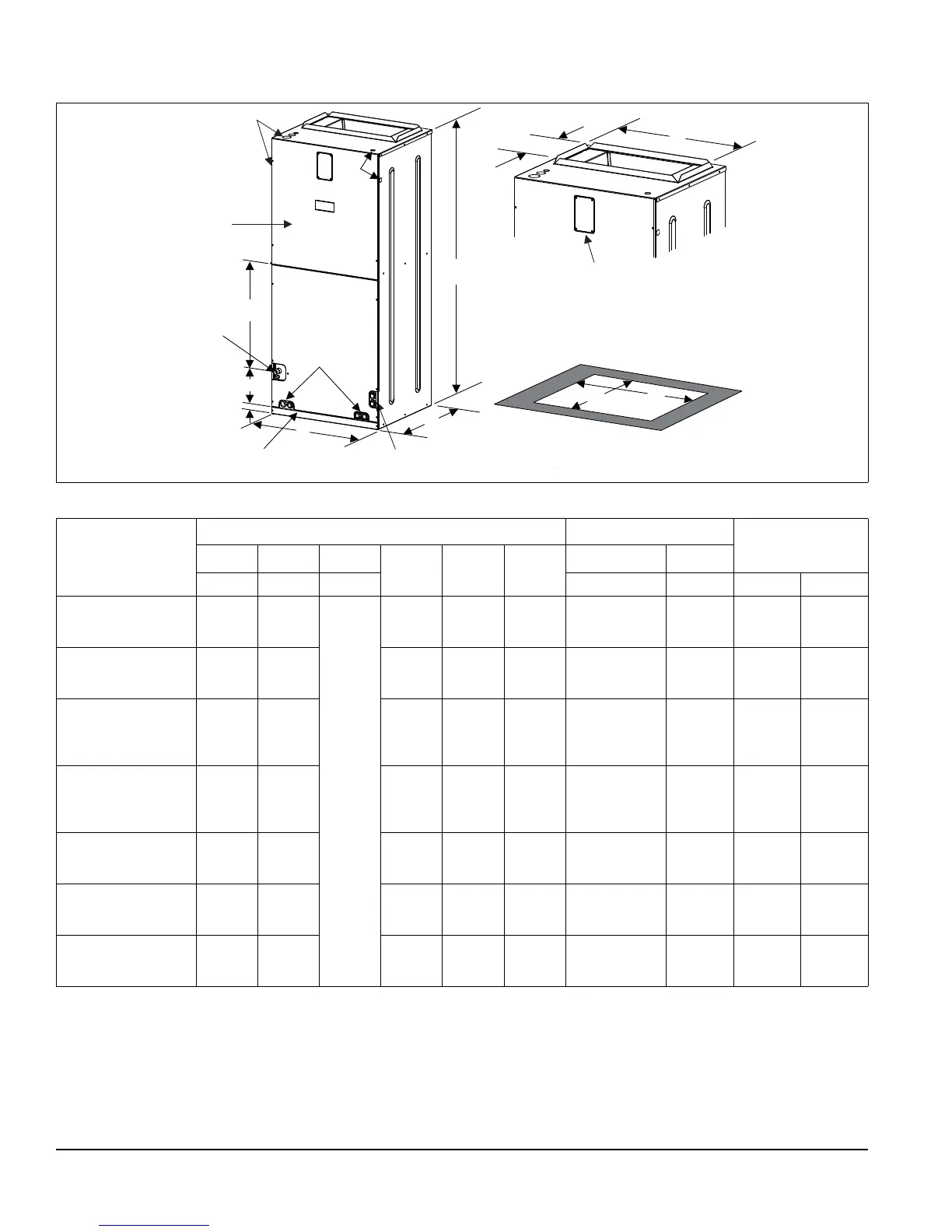

DIMENSIONS
10-3/8”
F
CIRCUIT BREAKER
PANEL
BOTTOM INLET
DIMENSIONS
DRAIN PAN CONNECTIONS
FOR HORIZONTAL APPLICATIONS
J
BLOWER
COMPARTMENT
REFRIGERANT
CONNECTIONS
DRAIN CONNECTIONS
FOR UPFLOW AND
DOWNFLOW
APPLICATIONS
7-11/32”
D
B
A
K
C
1-1/2”
18-9/32”
E
TOP OUTLET
DIMENSIONS
FILTER
ACCESS
Dimensions
MODELS
Dimensions
Wiring Knockouts
1
Refrigerant
Connections
Line Size
ABC
DEF
JK
Height Width Depth Power Control Liquid Vapor
AHP18B3XH21
AHP18B4FH21
46 17.5
21.5
12-3/8 13-29/32 14-19/32
7/8” (1/2”)
1 3/8” (1”)
1 23/32” (1 1/4”)
7/8” (1/2”) 3/8” 3/4”
AHP24B3XH21
AHP24B4FH21
46 17.5 12-3/8 13-29/32 14-19/32
7/8” (1/2”)
1 3/8” (1”)
1 23/32” (1 1/4”)
7/8” (1/2”) 3/8” 3/4”
AHP30B3XH21
AHP30B4GH21
AHP30B4HH21
AHP30B4FH21
46 17.5 12-3/8 13-29/32 14-19/32
7/8” (1/2”)
1 3/8” (1”)
1 23/32” (1 1/4”)
7/8” (1/2”) 3/8” 3/4”
AHP36C3XH21
AHP36C4GH21
AHP36C4HH21
AHP36C4FH21
52 21 17-1/8 17-13/32 18-3/32
7/8” (1/2”)
1 3/8” (1”)
1 23/32” (1 1/4”)
7/8” (1/2”) 3/8” 7/8”
AHP42C3XH21
AHP42C4HH21
52 21 17-1/8 17-13/32 18-3/32
7/8” (1/2”)
1 3/8” (1”)
1 23/32” (1 1/4”)
7/8” (1/2”) 3/8” 7/8”
AHP48D3XH21
AHP48D4HH21
AHP48D4JH21
57 24.5 22-1/8 20-29/32 21-19/32
7/8” (1/2”)
1 3/8” (1”)
1 23/32” (1 1/4”)
7/8” (1/2”) 3/8” 7/8”
AHP60D3XH21
AHP60D4JH21
57 24.5 22-1/8 20-29/32 21-19/32
7/8” (1/2”)
1 3/8” (1”)
1 23/32” (1 1/4”)
7/8” (1/2”) 3/8” 7/8’
1. Actual size (Conduit size).
H indicates 4 position model.
