York GY8S User Manual

036-21618-002 Rev. A (1004)
2 Unitary Products Group
* Models available in LoNOx.
FRONT
LEFT SIDE
RIGHT SIDE
D
B
20
40
A
28-1/2
3/4
14-3/4
5-3/8
(VENT CONNECTIONS)
POWER WIRING
7/8” HOLE
2-1/2
ACCESS
WIRING
7/8” K.O.
16
8-3/4
T’STAT WIRING
7/8” K.O.
1-1/8
2-1/4
14
23-1/2
32-1/2
2
20
B
C
A
3/4”
FLANGE
BOTTOM IMAGE
(FRONT)
TOP IMAGE
(FRONT)
VENT
CONNECTION
(Vent Size)
D
F
E
28-1/2
23
13-3/4
GAS INLET
1-1/4 x 2-1/2

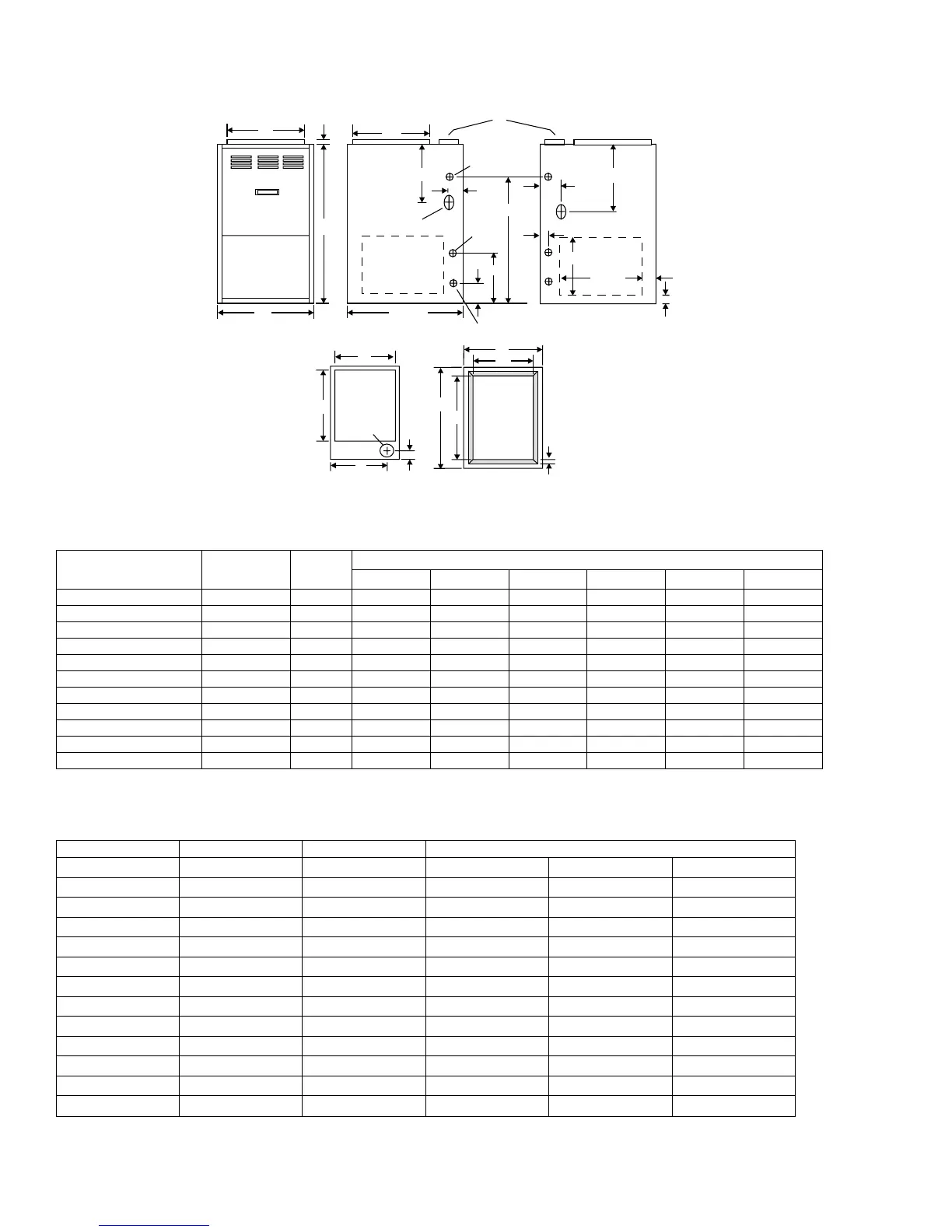

CABINET AND DUCT DIMENSIONS
BTUH
Input/Output
CFM
Cabinet
Size
Cabinet Dimension
ABCDEF
40/32* 1200 A 14 1/2 13 1/4 10 1/8 4.0 10 1/8 3 3/4
60/48* 1200 A 14 1/2 13 1/4 10 1/8 4.0 10 1/8 3 3/4
80/64* 1200 A 14 1/2 13 1/4 10 1/8 4.0 10 1/8 3 3/4
80/64* 1600 B 17 1/2 16 1/4 13 1/8 4.0 11 5/8 3 3/4
80/64* 2200 C 21 19 3/4 16 5/8 4.0 13 3/8 3 3/4
100/80* 1200 B 17 1/2 16 1/4 13 1/8 4.0 11 5/8 3 3/4
100/80* 1600 B 17 1/2 16 1/4 13 1/8 4.0 11 5/8 3 3/4
100/80* 2000 C 21 19 3/4 16 5/8 4.0 13 3/8 3 3/4
115/92 1600 C 21 19 3/4 16 5/8 4.0 13 3/8 3 3/4
115/92* 2000 C 21 19 3/4 16 5/8 4.0 13 3/8 3 3/4
130/104* 2000 D 24 1/2 23 1/4 20 1/8 4.0 15 1/8 3 3/4
HORIZONTAL VENTING-MUST USE FIELDS CONTROL MODELS SWG-4Y OR TJERENLAND MODEL GPAK-JT FIELD
SUPPLIED POWER VENTING KITS
Heating Heating Furnace Horizontal Vent Length Ft (m) with 4 Elbows
Input Output Airflow Pipe Size Min. Vent Length Max. Vent Length
BTU/H BTU/H CFM Inches Feet Feet
40,000 32,000 1200 4 4.5 34.5
60,000 48,000 1200 4 4.5 34.5
80,000 64,000 1200 4 4.5 34.5
80,000 64,000 1600 4 4.5 34.5
80,000 64,000 2200 4 4.5 34.5
100,000 80,000 1200 4 4.5 34.5
100,000 80,000 1600 4 4.5 34.5
100,000 80,000 2000 4 4.5 34.5
115,000 92,000 1600 4 4.5 34.5
115,000 92,000 2000 4 4.5 34.5
130,000 104,000 2000 4 4.5 34.5
