5
5 - Installation (Cont'd)

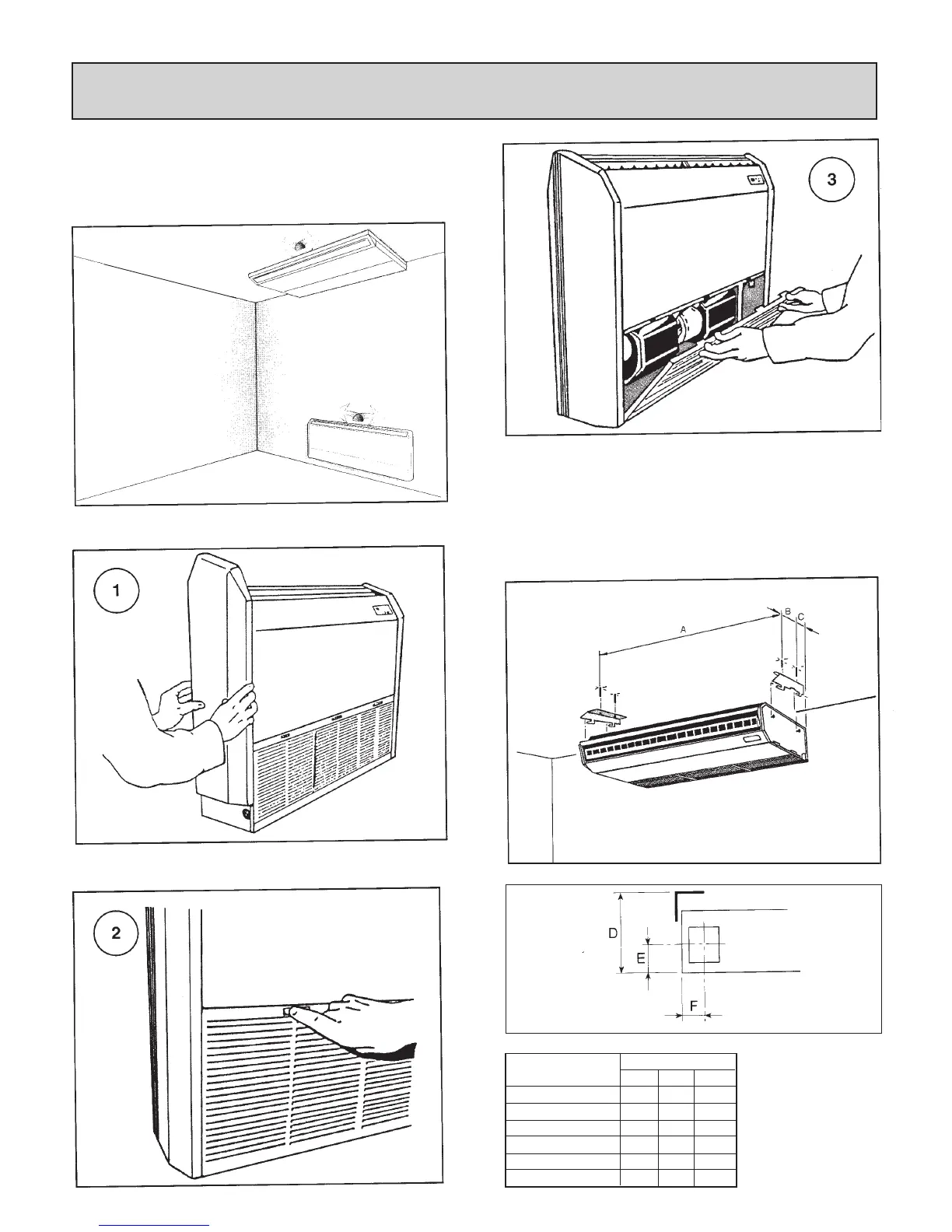

Indoor unit installation
Units can be installed vertically at floor level, horizontally
beneath a ceiling or vertically on a wall.
Fix the mouting bracket to the wall or ceiling. With ceiling
mounted units, installation close to a wall facilitates piping.
Use the knock outs in the unit casing when routing the pipes.
Hook the indoor unit on the mounting brackets.
Check that the unit is level so that condensate drainage will
take place correctly.
Disassemble the side panels and the air inlet grille as shown.
A
B
C
D
E
F
35
1402
201
145
215
115
88
45
1402
201
145
215
115
88
55
1692
201
145
215
115
88
MCC -MCH
