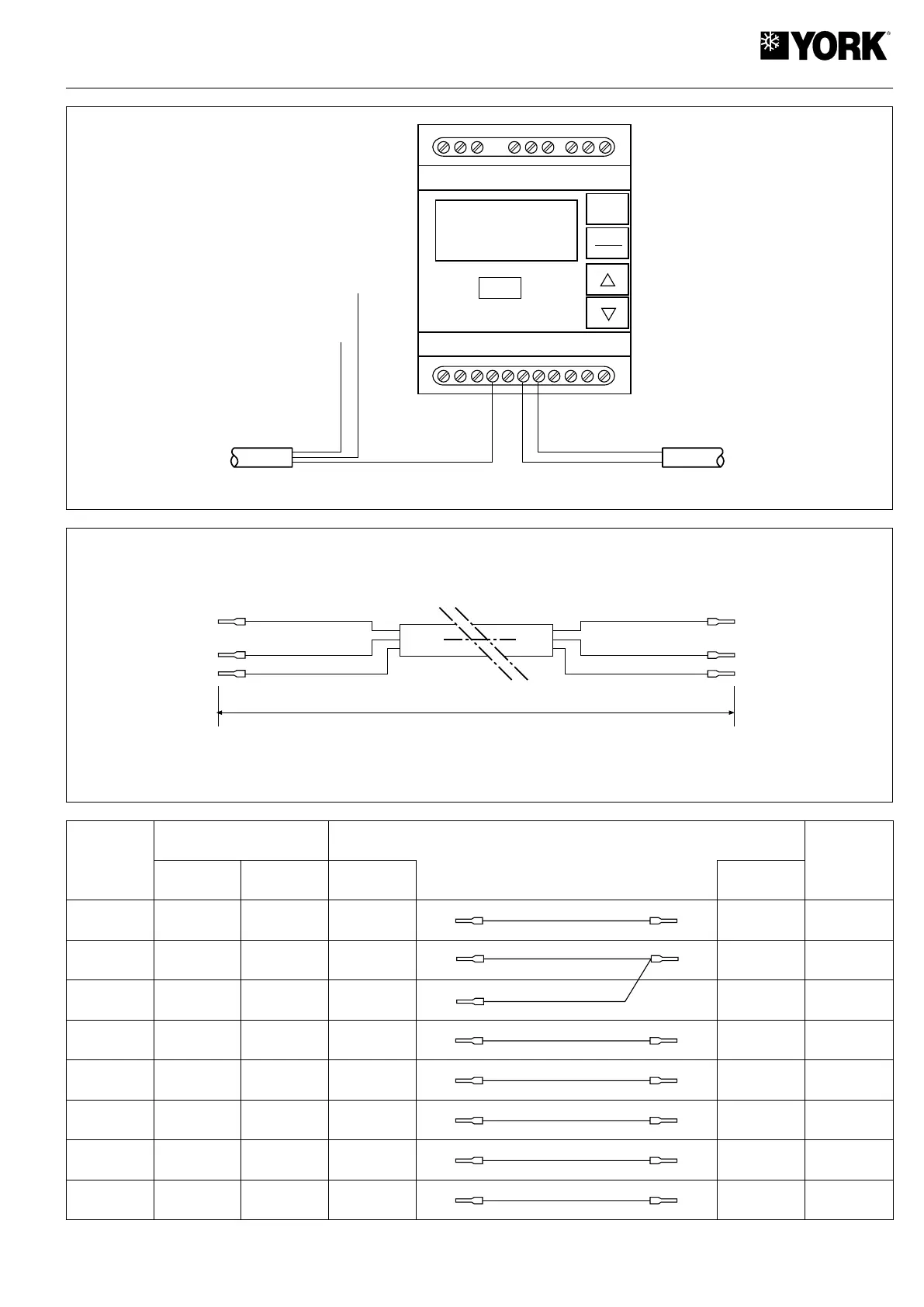

Fig. 9
Cable No.
Cable Diagram
Cable length
Colour Section From To
1 Red 1 X2-R CP1-1 500
2 White 1 X2-B CP1-2 490
3 White 1 CP1-5 - 160
4 Brown 1 CP1-15 KM1-44 570
5 Brown 1 KM1-43 RRV1-11 440
6 Brown 1 RRV1-12 CP1-16 590
7 Red 1 X2-4 RRV1-A1 500
8 White 1 RRV1-A2 X2-B 600
Fig. 10
        
         















 















