York TM9V080B12MP11 User Manual

700709-BTG-B-0512
2 Johnson Controls Unitary Products
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.
FRONT
33
A
LEFT SIDE
Combustion Air Inlet
Condensate Drain
(Downflow)
Vent Outlet
Thermostat
Wiring
28.5”
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Thermostat
Wiring
RIGHT SIDE
Vent Outlet
Condensate Drain
(Downflow)
14”
1”
1.5”
23”
Combustion Air Inlet
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Optional Return Air
Cutout (Either side)
29.5”
C
SUPPLY END
.56”
.56”
20”
B
3”
23.8”
.56”
Combustion
Air Inlet
Vent
Outlet
RETURN END
B
24.25”

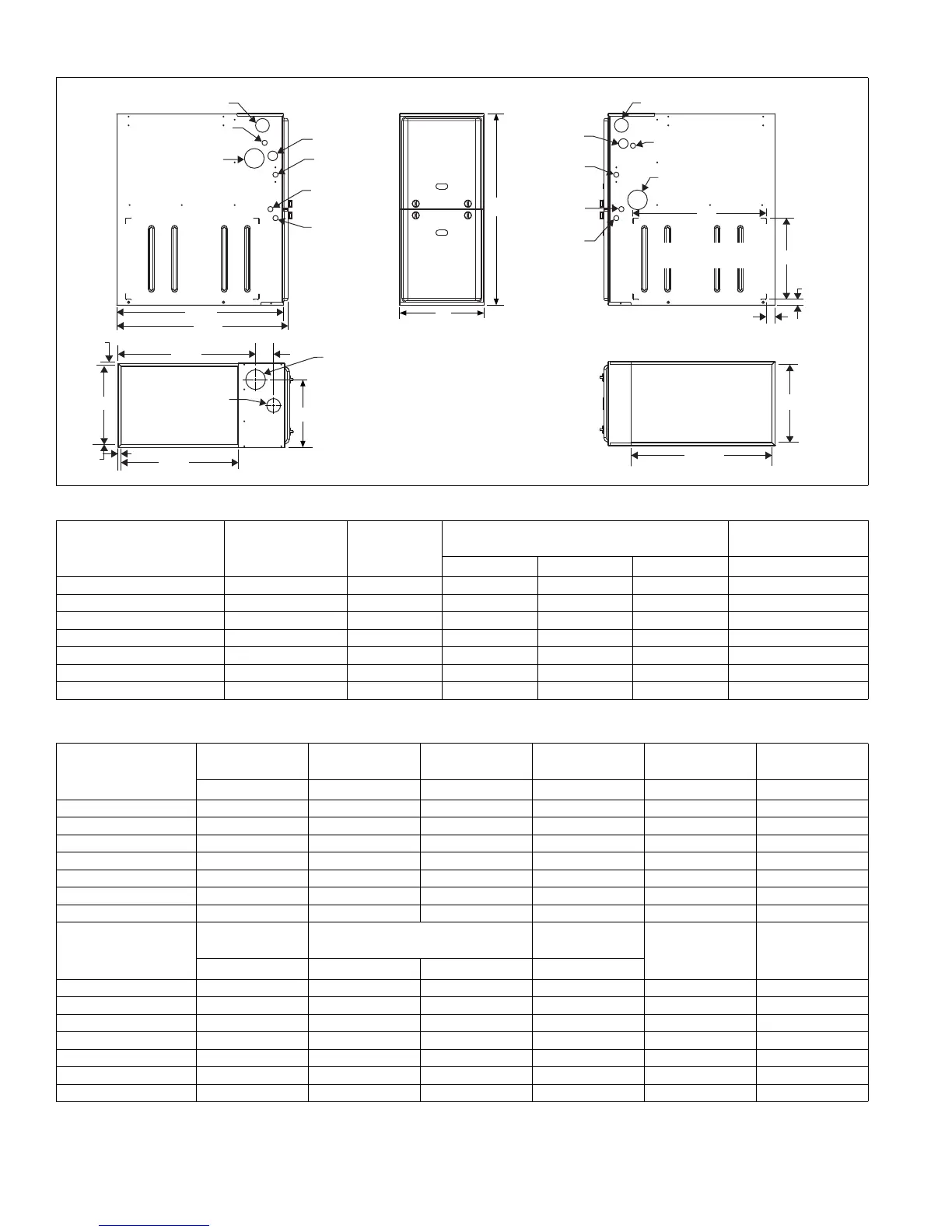

Cabinet & Duct Dimensions
Model
Nominal
CFM (m
3
/min)
Cabinet
Size
Cabinet Dimensions (Inches)
Approximate
Operating Weights
ABC Lbs
TM9V040A10MP11 1000 A 14-1/2 13-3/8 11-3/4 113
TM9V060B12MP11 1200 B 17-1/2 16-3/8 13-1/4 122
TM9V080B12MP11 1200 B 17-1/2 16-3/8 13-1/4 126
TM9V080C16MP11 1600 C 21 19-7/8 16-1/2 136
TM9V100C16MP11 1600 C 21 19-7/8 18-1/4 142
TM9V100C20MP11 2000 C 21 19-7/8 18-1/4 145
TM9V120D20MP11 2000 D 24-1/2 23-3/8 21-3/4 156
Ratings & Physical / Electrical Data
Model
Input
High/Low
Output
High/Low
Total
Unit
AFUE
High Fire
Air Temp. Rise
Low Fire
Air Temp. Rise
MBH MBH Amps % °F °F
TM9V040A10MP11 40/26 38/25 9 96 30 - 60 20 - 50
TM9V060B12MP11 60/39 58/37 9 96 35 - 65 35 - 65
TM9V080B12MP11 80/52 77/50 9 96 40 - 70 35 - 65
TM9V080C16MP11 80/52 77/50 12 96 35 - 65 35 - 65
TM9V100C16MP11 100/65 96/62 12 96 35 - 65 30 - 65
TM9V100C20MP11 100/65 96/62 14 96 35 - 65 35 - 65
TM9V120D20MP11 120/78 115/75 14 96 35 - 65 35 - 65
Model
Max. Outlet
Air Temp.
Blower Blower Size
Max.
Over-current
Protect
Min. Wire Size
(awg) @ 75 ft.
One Way
°F HP Amps In.
TM9V040A10MP11 180 1/2 7 11 X 8 15 14
TM9V060B12MP11 180 1/2 7 11 x 8 15 14
TM9V080B12MP11 175 1/2 7 11 x 8 15 14
TM9V080C16MP11 165 3/4 10.2 11 x 10 15 14
TM9V100C16MP11 180 3/4 10.2 11 x 10 15 14
TM9V100C20MP11 170 1 12.7 11 x 11 20 12
TM9V120D20MP11 180 1 12.7 11 x 11 20 12
