NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reli-
able operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable
airowpatternsandpossiblediminishedperformance.Theunitcontrolswilloptimizeoperationwithoutnuisancehigh-pressuresafetycut-outs;
however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is no
higher than on spring isolators. Recommended minimum clearances: Side to wall – 6'; rear to wall – 6'; control panel to end wall – 4'0'';
top – no obstructions allowed; distance between adjacent units – 10'. No more than one adjacent wall may be higher than the unit.
LD18437

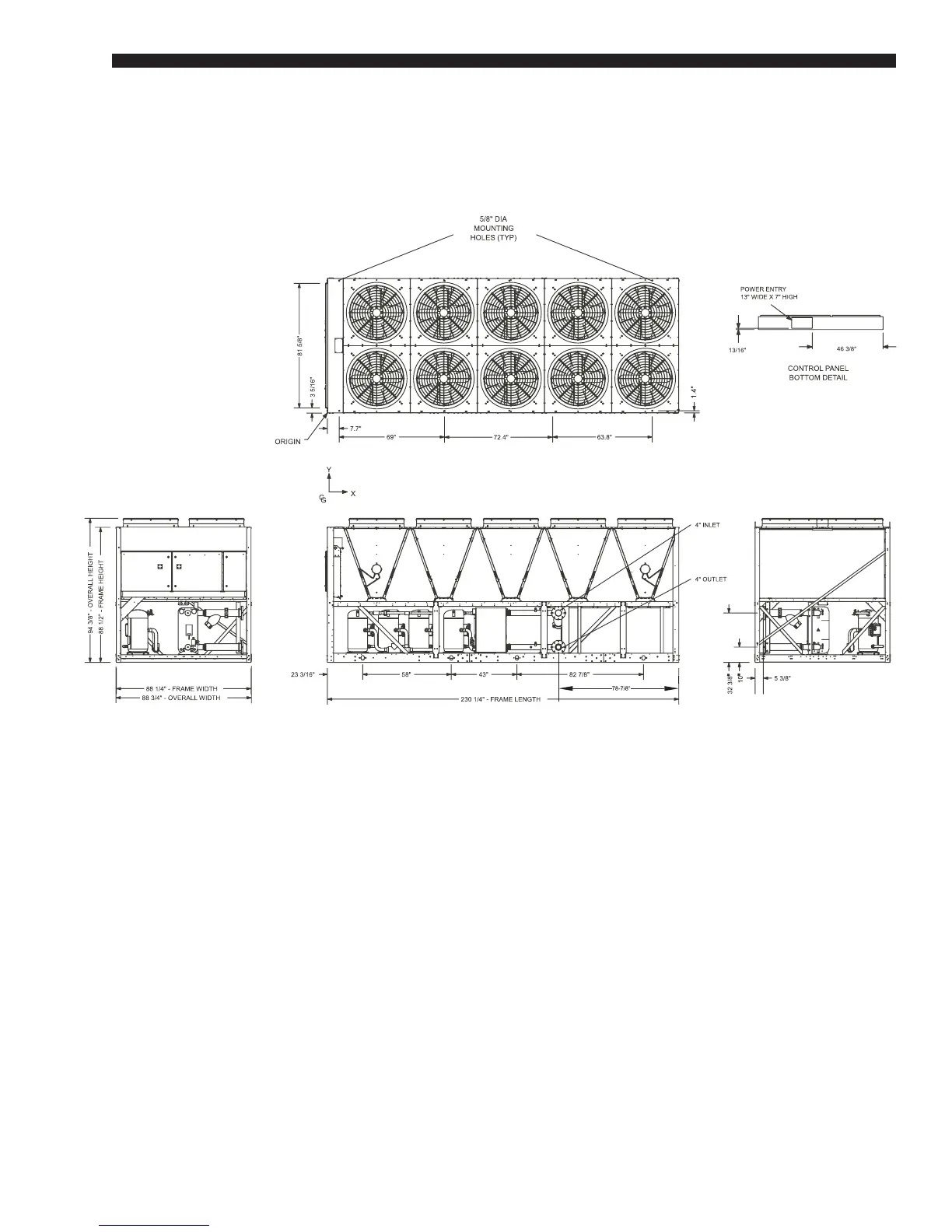

YLAA 0170SE, YLAA0156HE, YLAA0175HE
Unit Dimensions (Cont'd)
