FORM 150.72-EG6 (516)
JOHNSON CONTROLS
37
Isolator Details (Cont'd)
EQUIPMENT
BASE
(BY OTHERS)
POSITIONING
PIN
LD18443

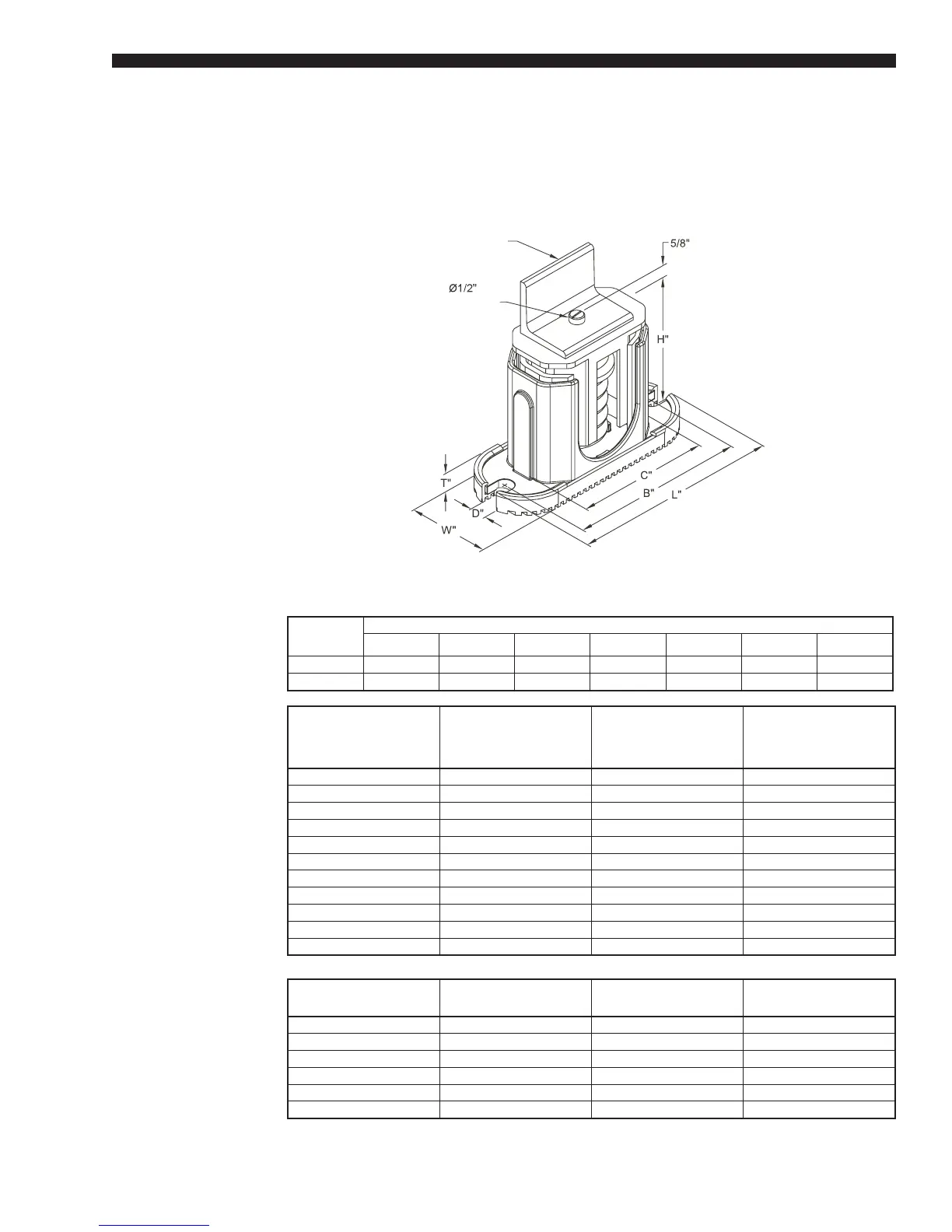

ONE INCH DEFLECTION SPRING ISOLATOR (CPX-X-)
MOUNT
DIMENSION DATA INCHES (MM)
W D L B C T H
CP1 3 (76) 0.625 (16) 7.75 (197) 6.5 (165) 4.75 (121) 0.5 (13) 4.625 (117)
CP2 3 (76) 0.625 (16) 10.5 (267) 9.25 (235) 7.75 (197) 0.5625 (14) 6 (152)
MOUNT
RATED CAPACITY
LBS (KG)
DEFLECTION
RATED IN (MM)
COLOR CODE
CP1-1D-85 85 (39) 1020 (463) LT. PURPLE
CP1-1D-120 120 (54) 1.2 (30) DK. YELLOW
CP1-1D-175 175 (79) 1.17 (30) DK. BLUE
CP1-1D-250 250 (113) 1.4 (36) YELLOW
CP1-1D-340 340 (154) 1.13 (29) RED
CP1-1D-510 510 (231) 1.02 (26) BLACK
CP1-1D-675 675 (306) 1.32 (34) DK. PURPLE
CP1-1D-900 900 (408) 1.02 (26) DK. GREEN
CP1-1D-1200 1200 (544) 0.9 (23) GRAY
CP1-1D-1360 1360 (617) 0.77 (20) WHITE
CP1-1D-1785N 1785 (810) 0.88 (22) GRAY/RED
MOUNT
RATED CAPACITY
LBS (KG)
DEFLECTION
RATED IN (MM)
COLOR CODE
CP2-1D-1020 1020 (463) 1.020 (46) BLACK
CP2-1D-1350 1350 (612) 1.32 (34) DK. PURPLE
CP2-1D-1800 1800 (816) 1.02 (26) DK. GREEN
CP2-1D-2400 2400 (1089) 0.9 (23) GRAY
CP2-1D-2720 2720 (1234) 0.77 (20) WHITE
CP2-1D-3570N 3570 (1619) 0.88 (22) GRAY/RED
