Maintenance and
Disassembly
Page 44

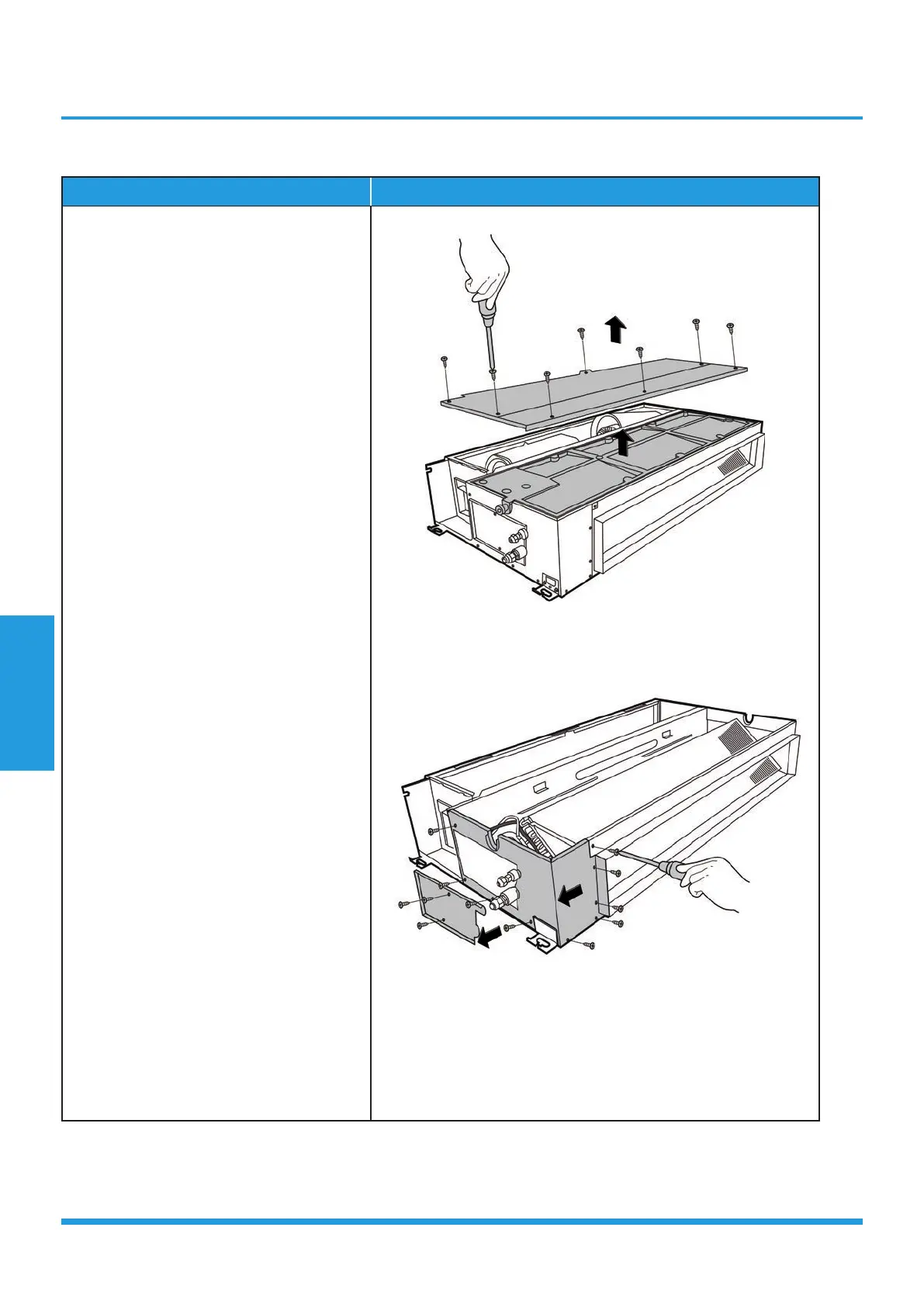

3. Evaporator
Procedure Illustration
1) Remove 9 Screws of the water collecter
and remove the water collecter. (see
CJ_A6_009)
2) Remove the screws of the pipe clamp
board and the left side board (3 for the
pipe clamp and 9 for left side board).
(see CJ_A6_010)
CJ_A6_009
CJ_A6_010
Note: Remove the front panel (refer to 1. Front panel) before disassembling electrical parts.
To Next Page
