Maintenance and
Disassembly
Page 65
2. Fan disassembly
Note: Remove the panel plate and (refer to 1. Panel plate) before disassembling fan.
YUFE18BYTM-MO-X, YUFE24BYTM-MO-X, YUFE36BYTM-MO-X

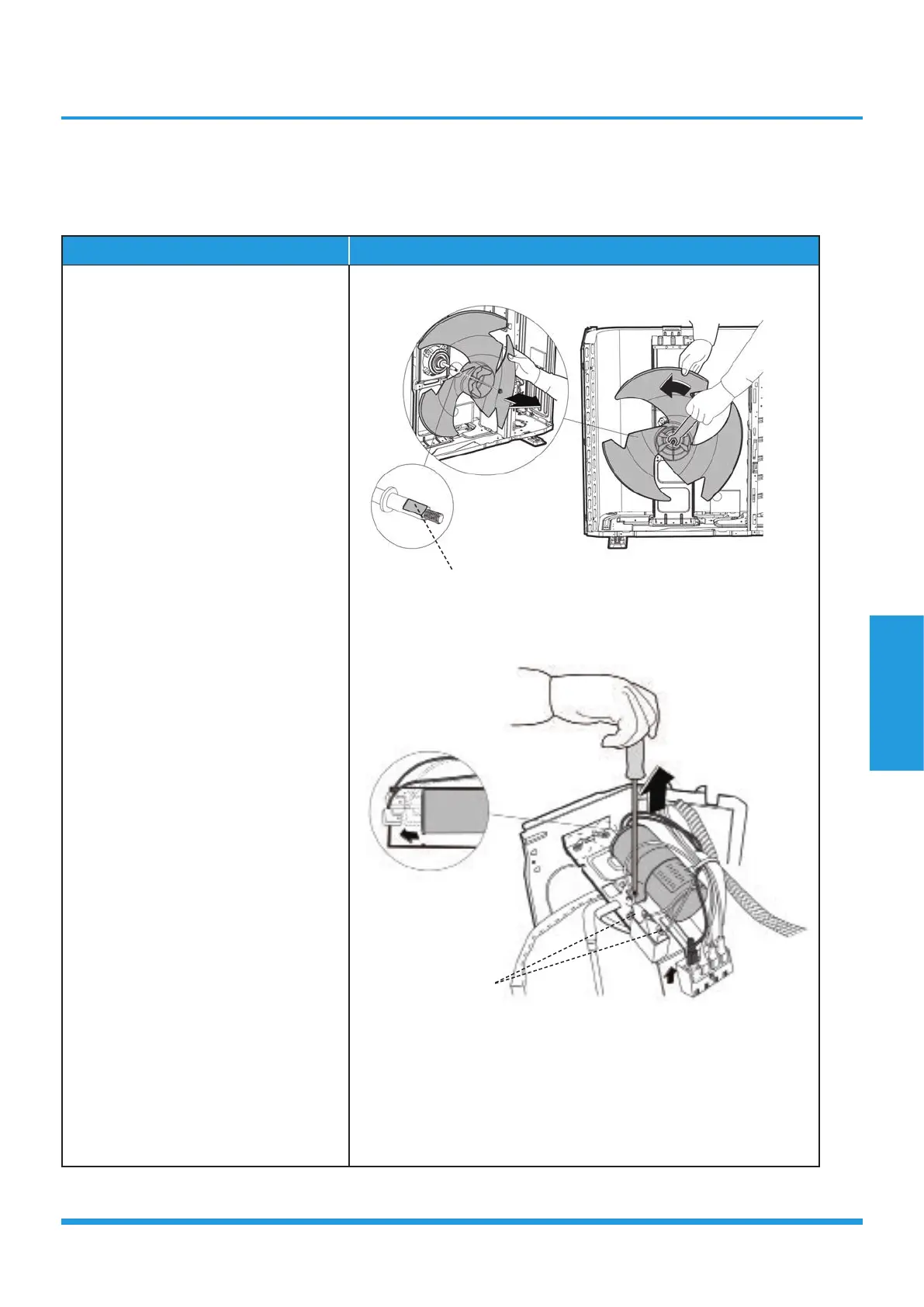

Procedure Illustration
1) Remove the nut securing the fan
with a spanner (see CJ_ODU_001).
2) Remove the fan.
3) Disconnect the connectors for fan
motor. (Blue wire, yellow wire, red
wire, brown wire and black wire. The
blue wire and red wire are on the
capacitor. The black wire connects
with terminal 4.) (see CJ_ODU_002)
CJ_ODU_001
CJ_ODU_002
Note: This section is for reference only. Actual unit appearance may vary.
D-cut
Connectors for fan motor
Terminal 1 to 4
To Next Page
