Maintenance and
Disassembly
Page 74
4. Sound blanket
WARNING: Recover refrigerant from the refrigerant circuit before remove the compressor.
Note: Remove the panel plate, electrical parts, and fan assembly (refer to 1. Panel plate, 2. Electrical parts,
and 3. Fan assembly) before disassembling sound blanket.

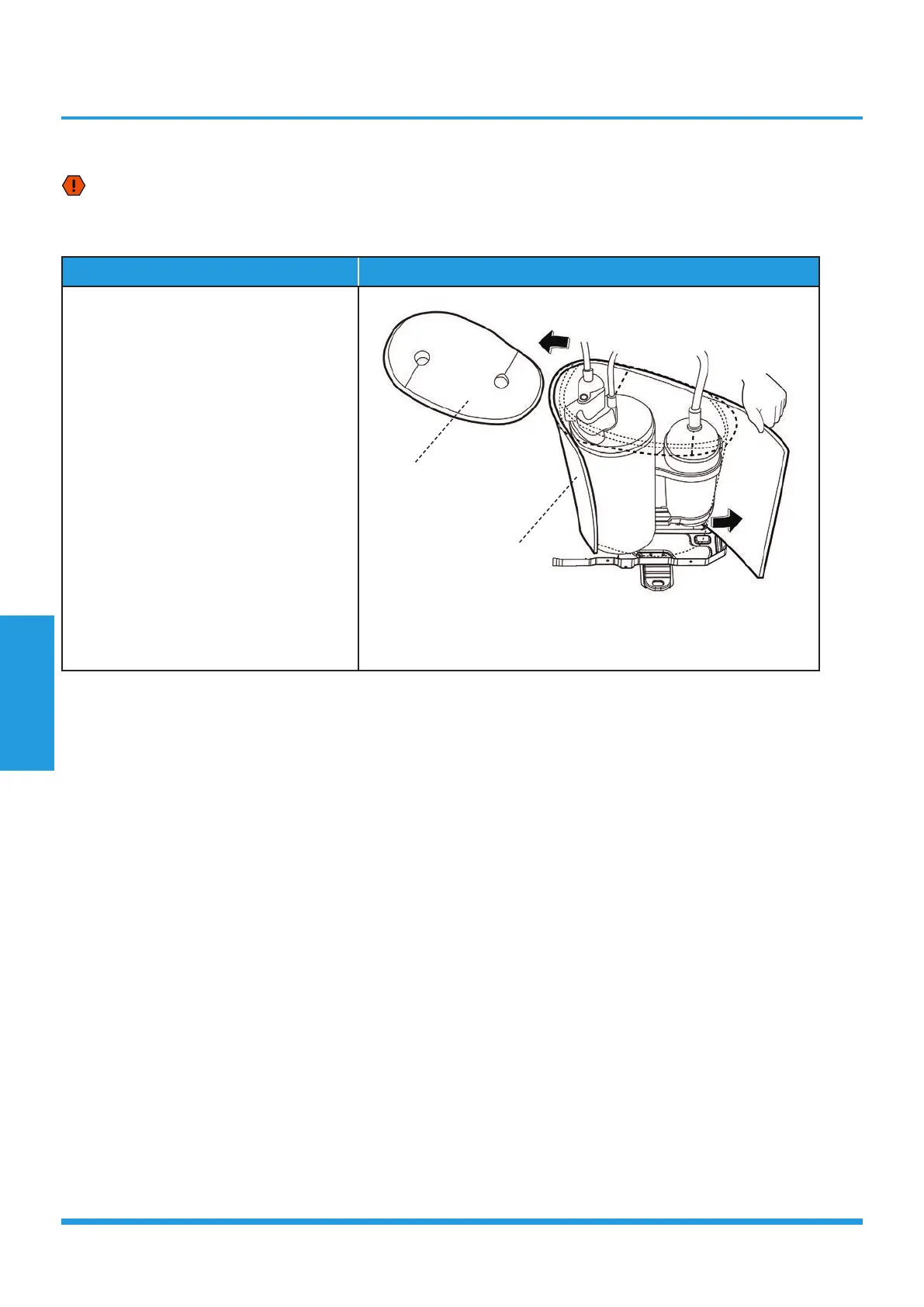

Procedure Illustration
1) Remove the sound blanket (side and
top) (see CJ_ODU_015).
CJ_ODU_015
Note: This section is for reference only. Actual unit appearance may vary.
Sound Blanket(side)
Sound Blanket(top)
