Maintenance and
Disassembly
Page 59
YUFE36BYTM-MO-X , YUFE36BYSM-MO-1, MOD30U-36HN1-NB8
Procedure Illustration
1) Turn off the air conditioner and the
power breaker.
2) Remove the screws of the big handle
and then remove the big handle
(2 screws) (see CJ_D30_001).
3) Remove the screws of the top cover
and then remove the top cover (4
screws). Two of the screws is located
underneath the big handle (see CJ_
D30_002).

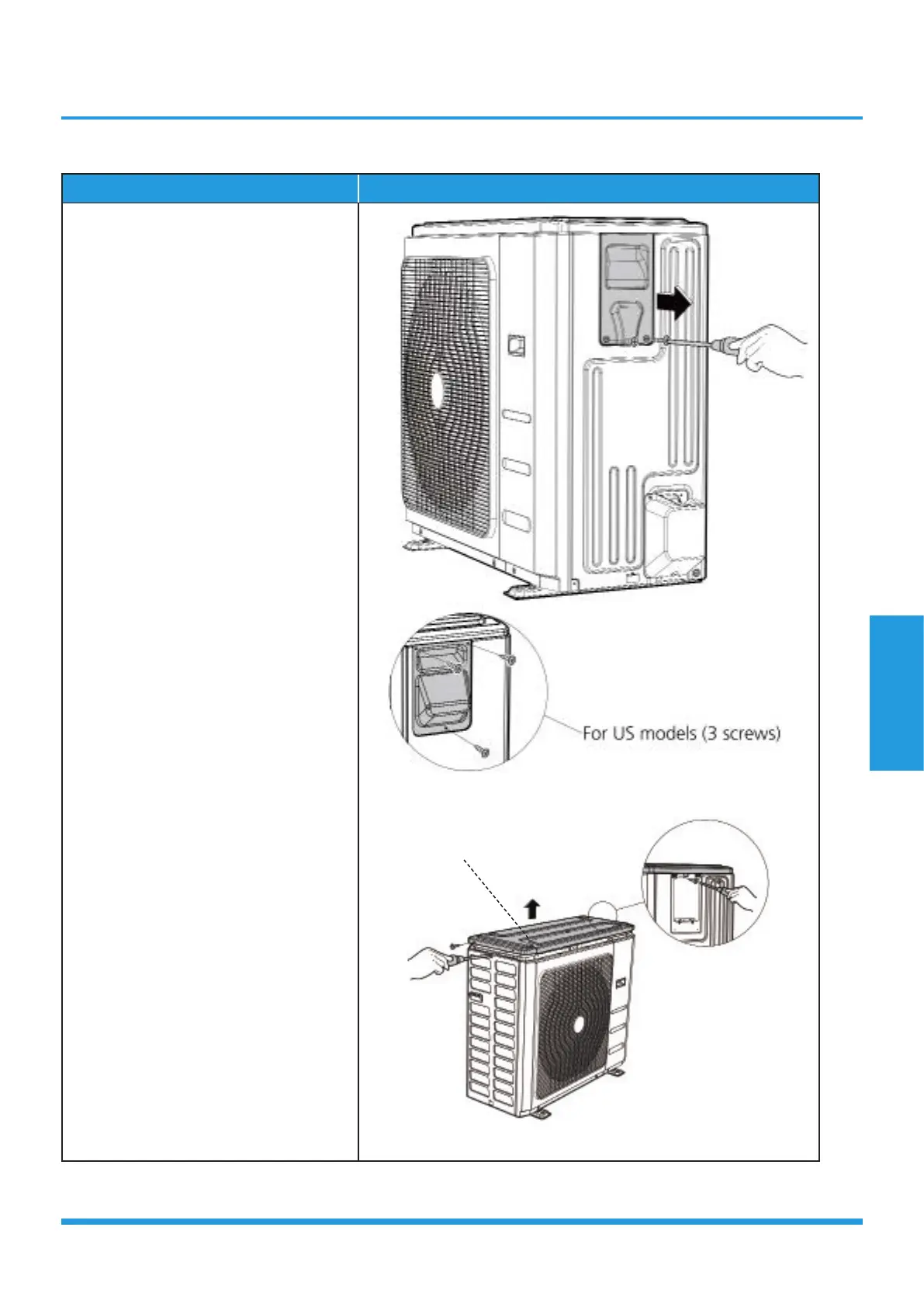

CJ_D30_001
CJ_D30_002
Note: This section is for reference only. Actual unit appearance may vary.
Top Cover
To Next Page
