York ZF072 - ZF036-072 Unit Limitations; ZF036-072 Component Location

697890-YIM-C-0213
6 Johnson Controls Unitary Products

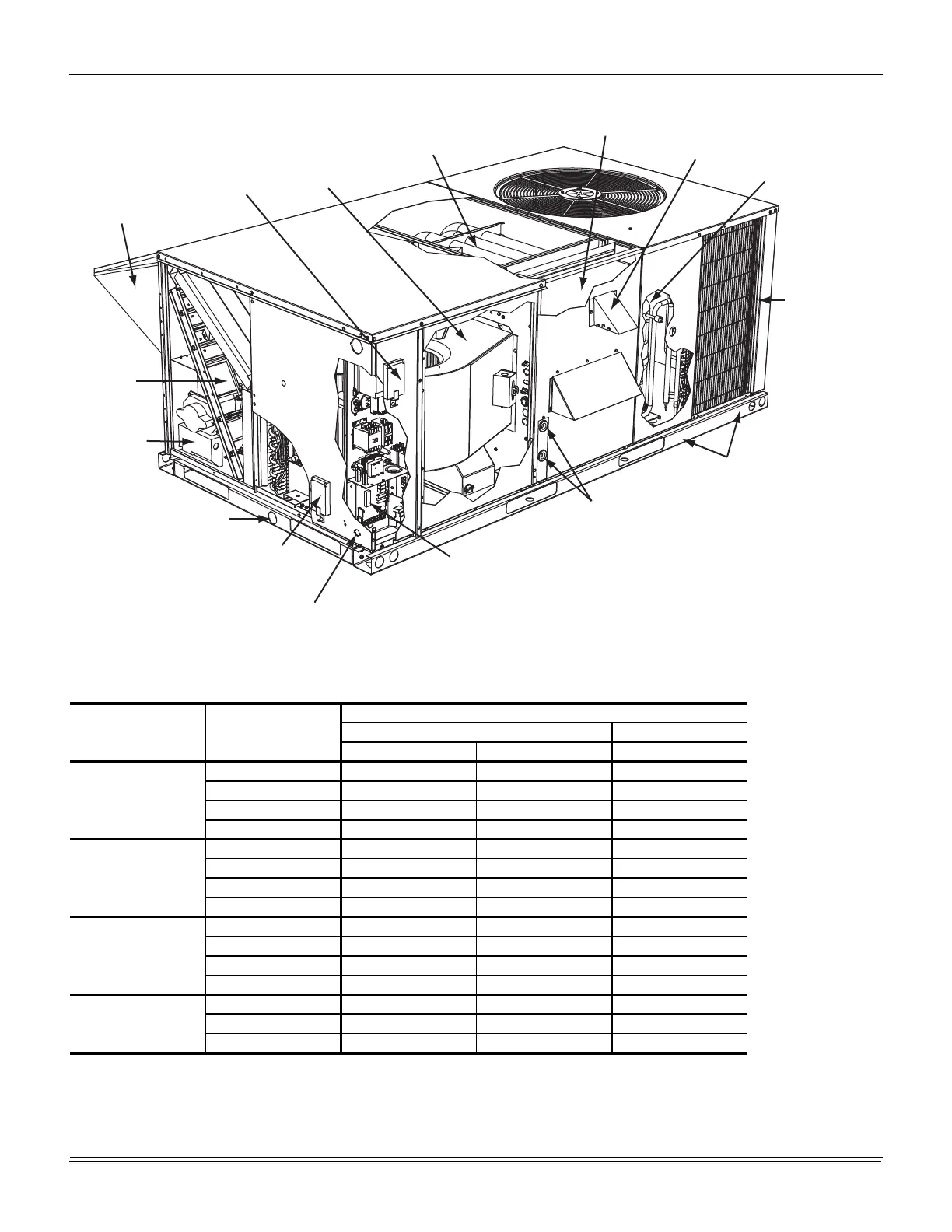

Figure 1: ZF036-072 Component Location
3/4 " PVC female
condensate drain
Knockout for
side power and
control entry
GFCI
convenience outlet
Smoke
detector
Slide-in
economizer
Economizer
hood
HACR
breaker
Belt drive or
Direct drive
blower
20 Gauge aluminized
steel tubular heat exchanger
Electric heat
accessory location
Power ventor motor with
post purge cycle
High efficiency
compressor
Knockout for side
gas supply entry
Simplicity
®
control board
Micro-Channel
Aluminum Tube/
Aluminum Fin
Condenser
Full perimeter baserails
with forklift slots and
lifting holes
Table 1: ZF036-072 Unit Limitations
Size
(Tons)
Unit Voltage
Unit Limitations
Applied Voltage Outdoor DB Temp
Min Max Max (°F)
ZF036
(3.0)
208/230-1-60 187 252 125
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZF048
(4.0)
208/230-1-60 187 252 125
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZF060
(5.0)
208/230-1-60 187 252 125
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
ZF072
(6.0)
208/230-3-60 187 252 125
460-3-60 432 504 125
575-3-60 540 630 125
