York ZF072 - Weights and Dimensions; ZF036-072 Unit Accessory Weights; Unit 4 Point Load Weight; Unit 6 Point Load Weight

697890-YIM-C-0213
8 Johnson Controls Unitary Products

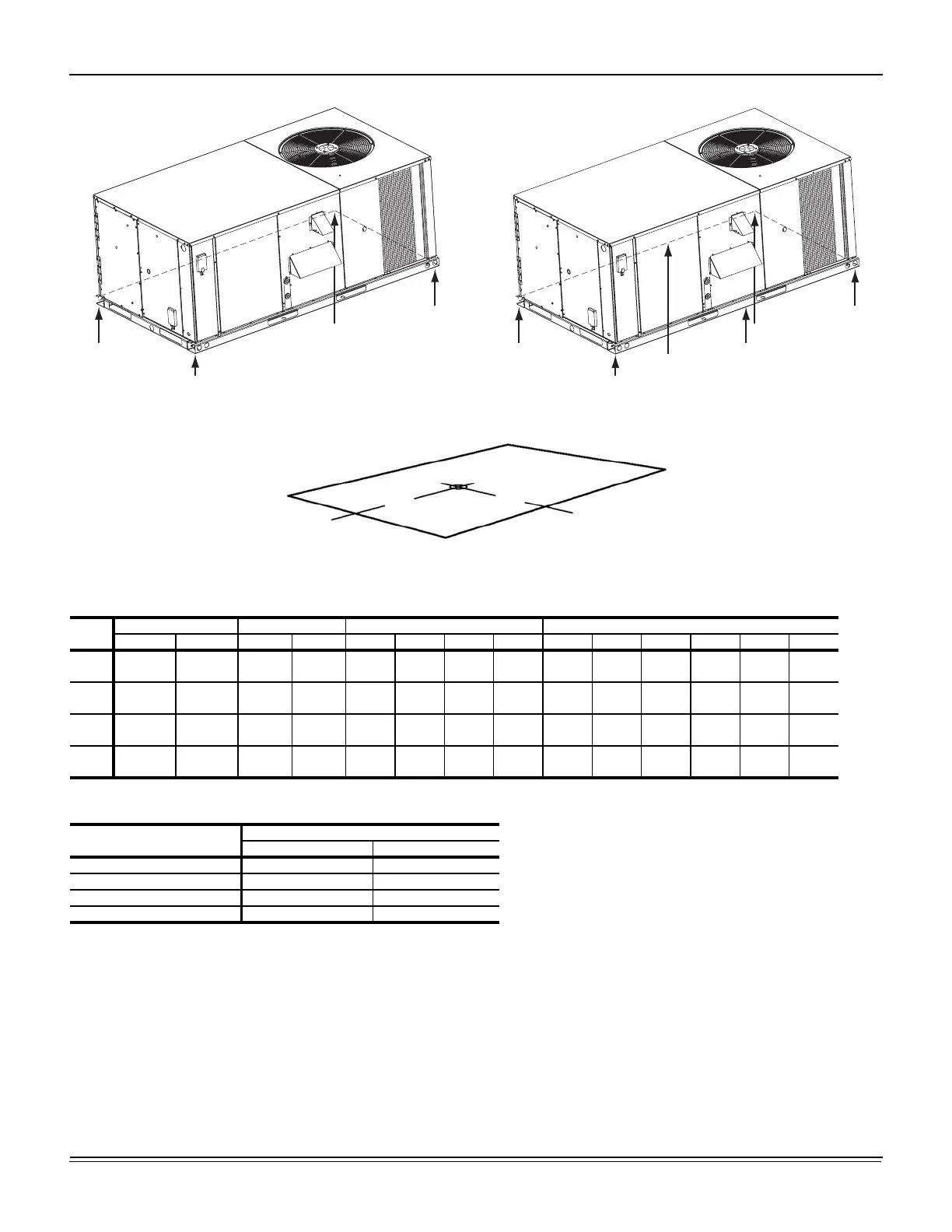

Figure 2: Unit 4 Point Load Weight Figure 3: Unit 6 Point Load Weight
Figure 4: Center of Gravity
A
D
B
Front
C
A
F
C
B
Front
D
E
X
Y
LEFT
FRONT
Table 2: Weights and Dimensions
Size
(Tons)
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
Shipping Operating X Y ABCDABCDEF
036
(3.0)
473
468 33 18.25 114 76 111 166 81 61 48 70 89 119
048
(4.0)
546 541 31.5 18.5 138 85 122 196 100 71 53 75 101 142
060
(5.0)
574 569 37 15 105 86 170 208 72 63 55 110 125 144
072
(6.0)
645 640 37 15 118 96 192 234 81 71 62 124 141 162
Table 3: ZF036-072 Unit Accessory Weights
Unit Accessory
Weight (lbs.)
Shipping Operating
Economizer 55 50
Power Exhaust 55 50
Electric Heat
1
28 28
Gas Heat
2
70 70
1. Weight given is for the maximum heater size available (30KW).
2. Weight given is for the maximum number of tube heat exchangers
available (5 tube).
