YOURS BOOMBOX - Functions and Connections; Component Identification and Ports

BOOMBOX - 60W weatherproof Bluetooth
®
/Mic/FM/Guitar speaker
Page 5
English
1- Handle
2- Retractable handle
3- Ruggedized ABS housing
4- 6.35 Mono Jack Guitar/Mic Input
5- Battery level LED VU meter
6- Power input: 100-240V 50-60Hz
7- Power button
8- Microphone/guitar volume button
9- Source selection button: Bluetooth / Radio /
Auxiliary / USB
10- Source selection button: microphone/guitar
11- Play/Pause button for following sources:
Bluetooth, Auxiliary and USB
12- Fast forward or rewind button, or browsing
radio station
13- Lighting animation selection button
14- Main volume
15- USB port to connect a storage device e.g.
USB keys

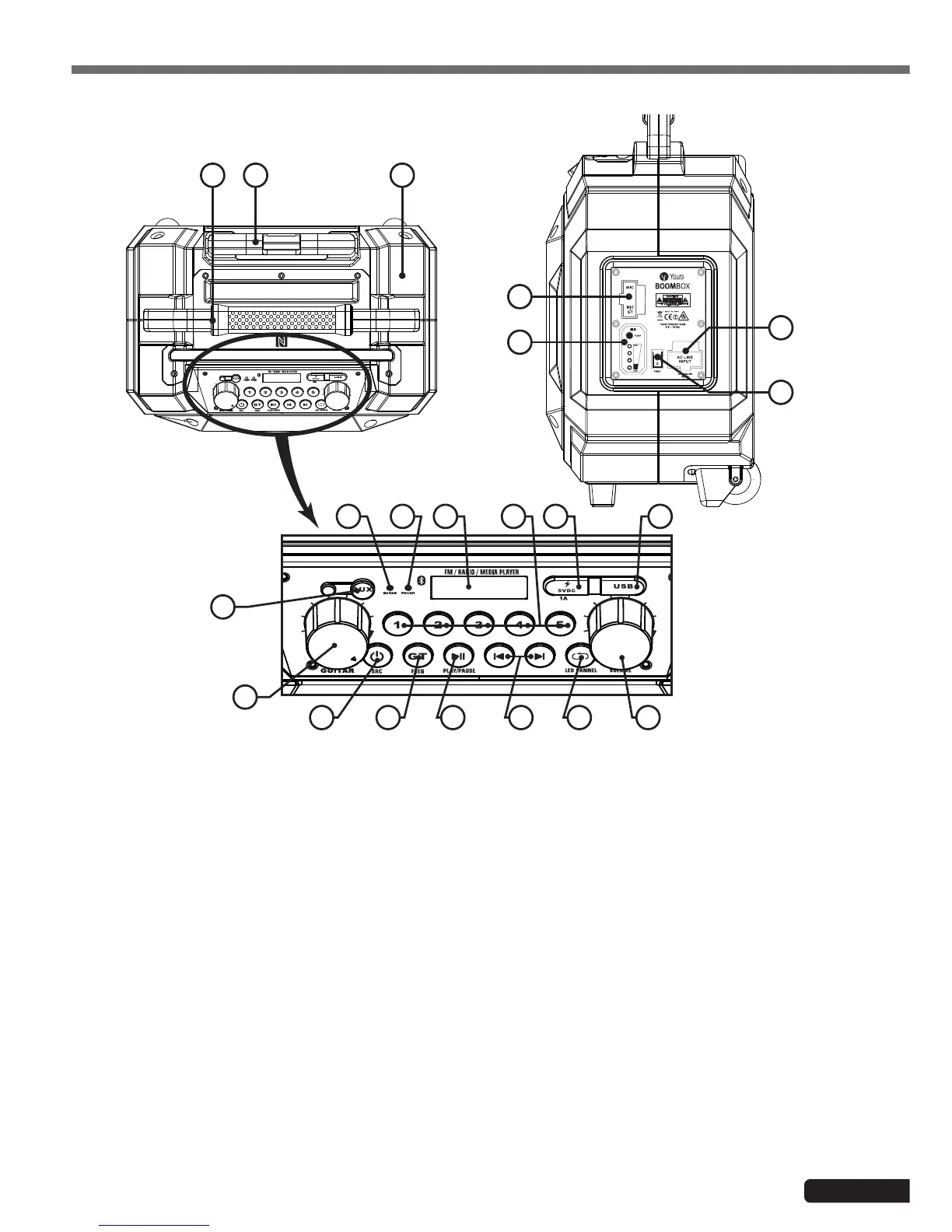

4 - Functions and connections
16- 5V 1A output via USB port
17- (1 to 5) FM preset keys
18- LCD display
19- Power indicator
20- MIC + GT (4) guitar level selection indicator
21- Auxiliary input via Jack 3.5
