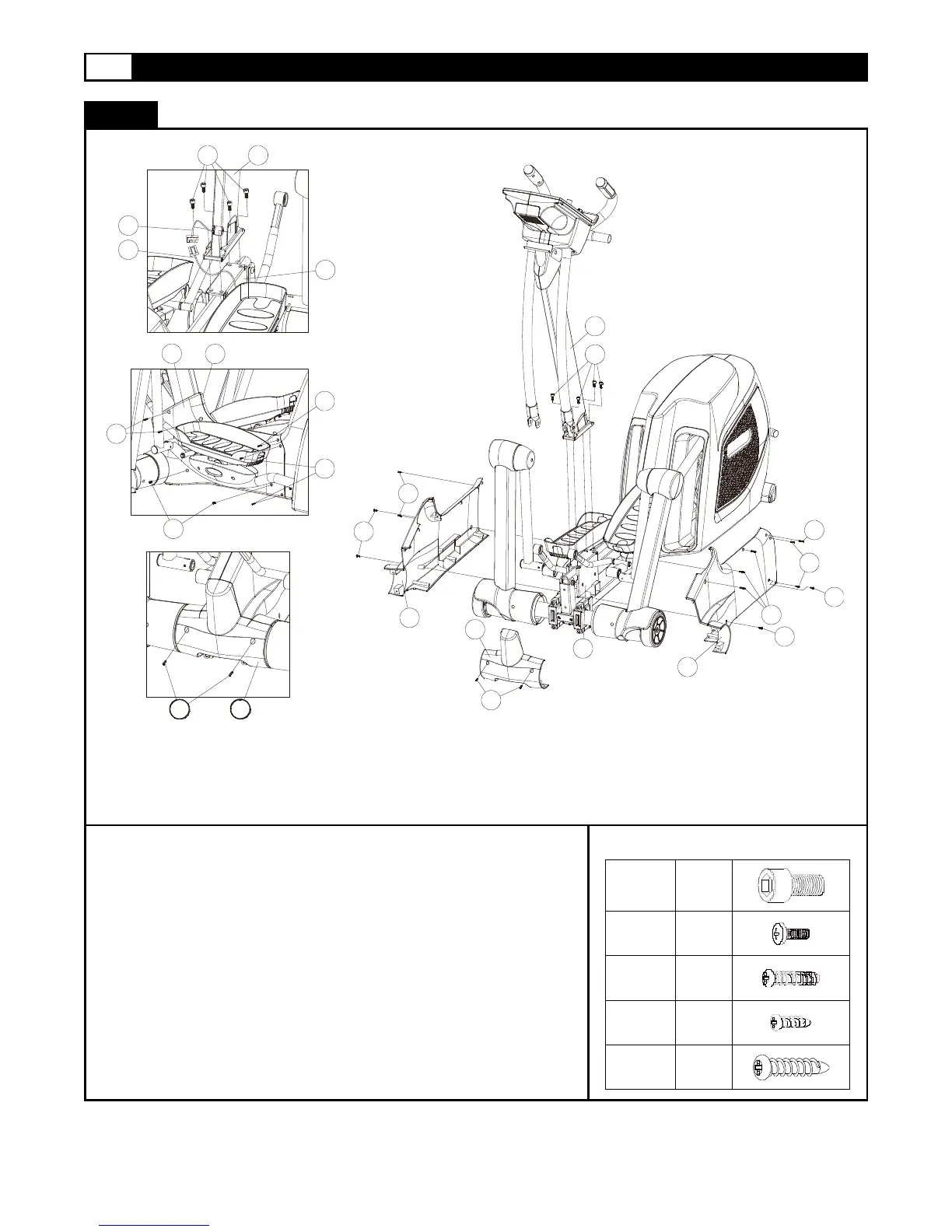

STEP3-A). Assemble the Console Support Tube (101) to the Main Frame and secure
using four Allen Head CAP Bolts (504). Connect the 8Pin Power Wire –
Upper (601) to 8Pin Power Wire – Lower (602) by sliding plastic extrusion
on connector under plastic clip on second connector .
STEP3-B). Lift the Pedal Arm and attach the Undercarriage Cover (719, 720) to the
Main Frame, and secure using Flat Point Screw (506), Screw (509),
Screw (510).
STEP3-C). Attach the Incline Frame Front Cover (703) to the Incline Frame and
secure using two Screws (520).
