17

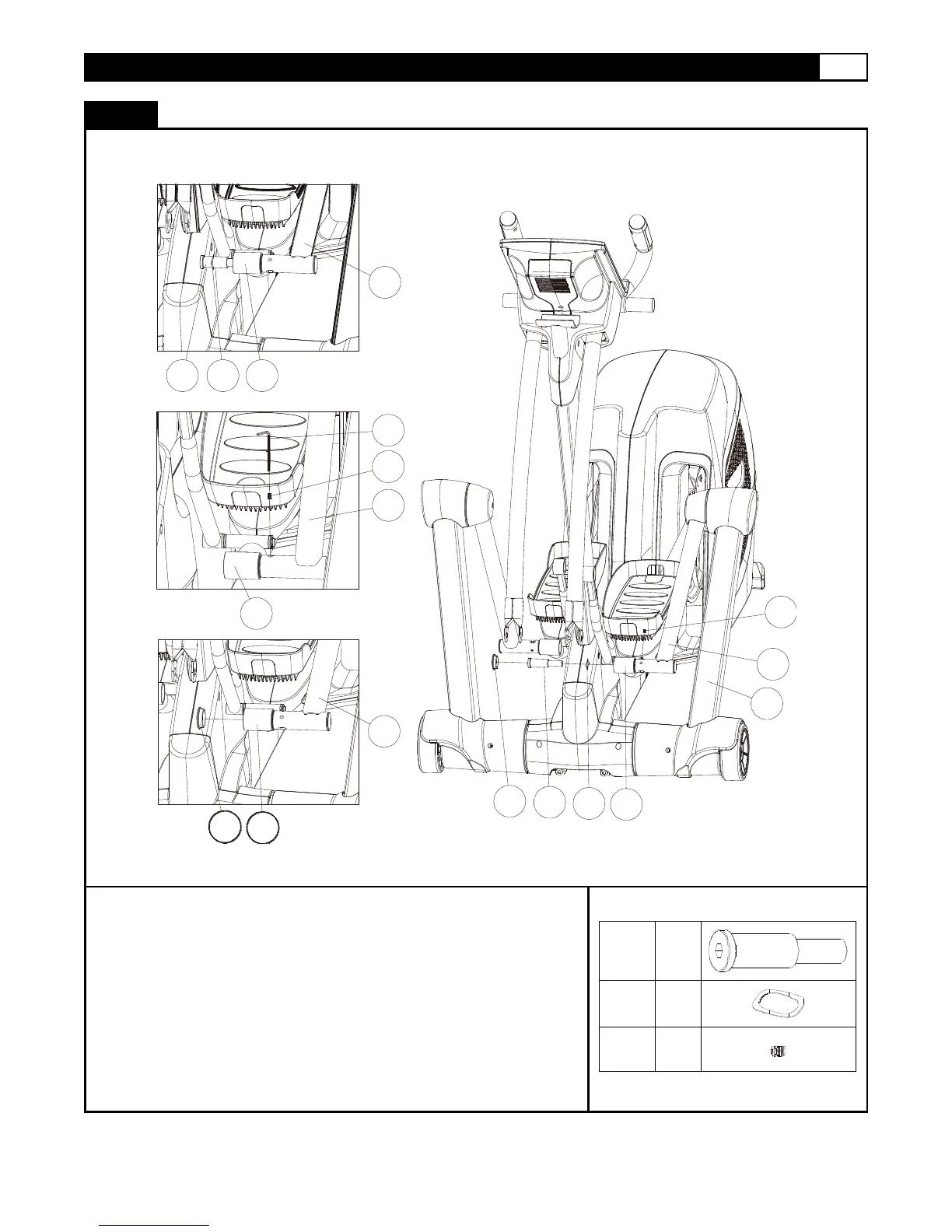

STEP4
ASSEMBLY
516
108
521
505
702
106
109
108
521505 106
106
108
516
A
108
106
702
STEP4-A). Slide the 20x79.9 Bolt (505) through the Wave Washer (521), Pedal Arm,
and Pedal Swing Arm (108) then secure by 8mm Allen Key (C).
STEP4-B). Secure the Back Out Screw (516) to the Pedal Swing Arm (108) using the
2.5mm Allen Key (A)
NOTE: PLEASE FULLY TIGHTEN Screw (516).
STEP4-C). Press the Pedal Arm Front Pivot Cover (702) into the ends of the Pedal
Arm.
505
X2
521
X2
516
X2
STEP4-A
STEP4-B
STEP4-C
