STEP6
ASSEMBLY
101
514
514
514
513
515
515
513
103
102
310
514
102
519
515
310
101
514
B
519
519
360
513
515
519
513

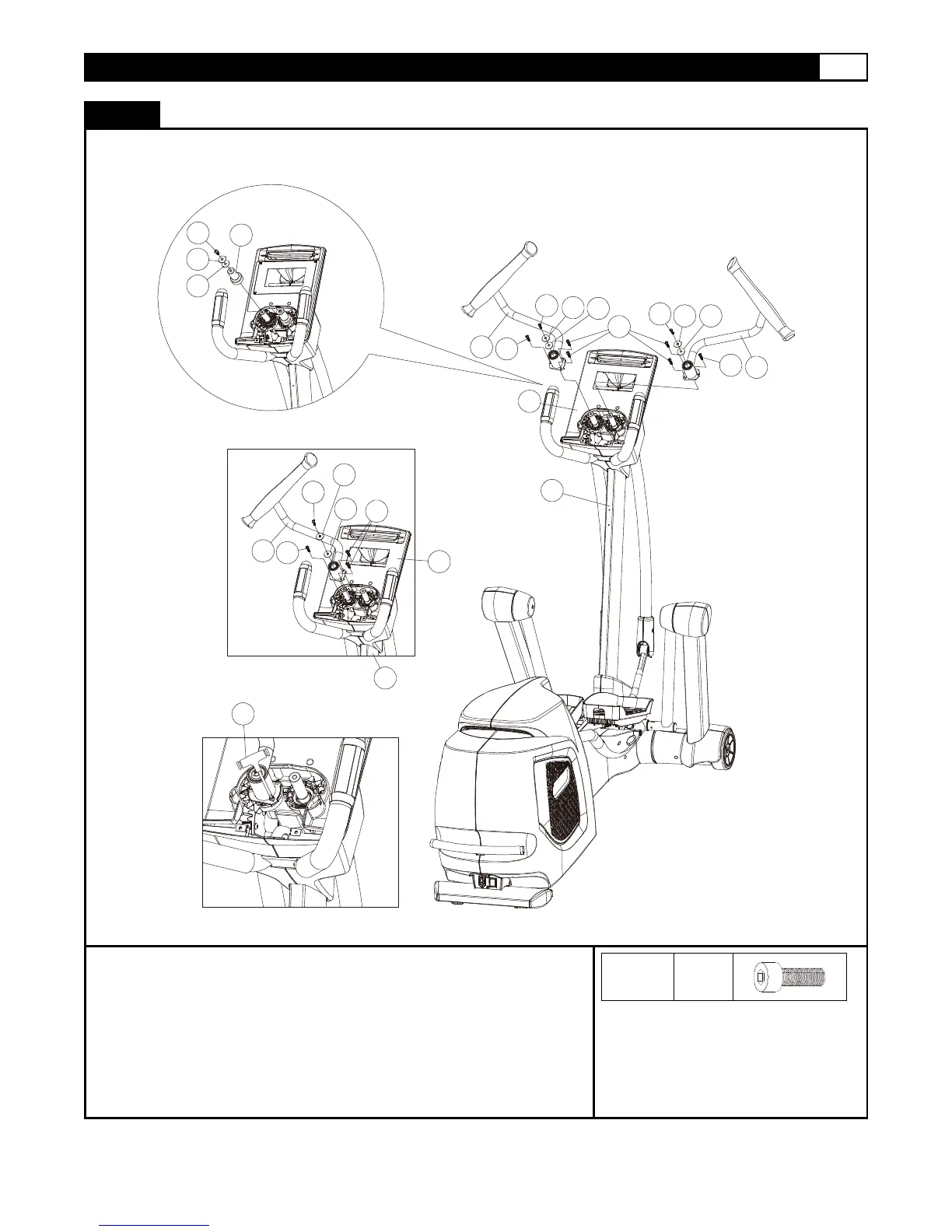

STEP6-A). Release the Plastic Gear Bushings (360) first, and keep 8x27x2mm
Washers (513), M8x20mm Allen Head Bolts for STEP6-B.
STEP6-B). Install the Moving Handlebar with Plastic Washer (519) first, then the
second is Washer (513) and finally tight the Allen Head Bolt (514) to lock
the moving handlebar on the console.
STEP6-C).Tighten the Allen Head Bolts (514) with 5mm Allen Key (B).
514
X6
STEP6-B
STEP6-C
STEP6-A
