YTL DDS-1Y - Connection Diagram; Meter Dimensions

2
A Impulse Output
Material
Material
Material
Material
Case Grey flame resistant ABS
Terminal cover Grey flame resistant ABS
Base Bottom Grey flame resistant ABS
4.
4.
4.
4. Connection
Connection
Connection

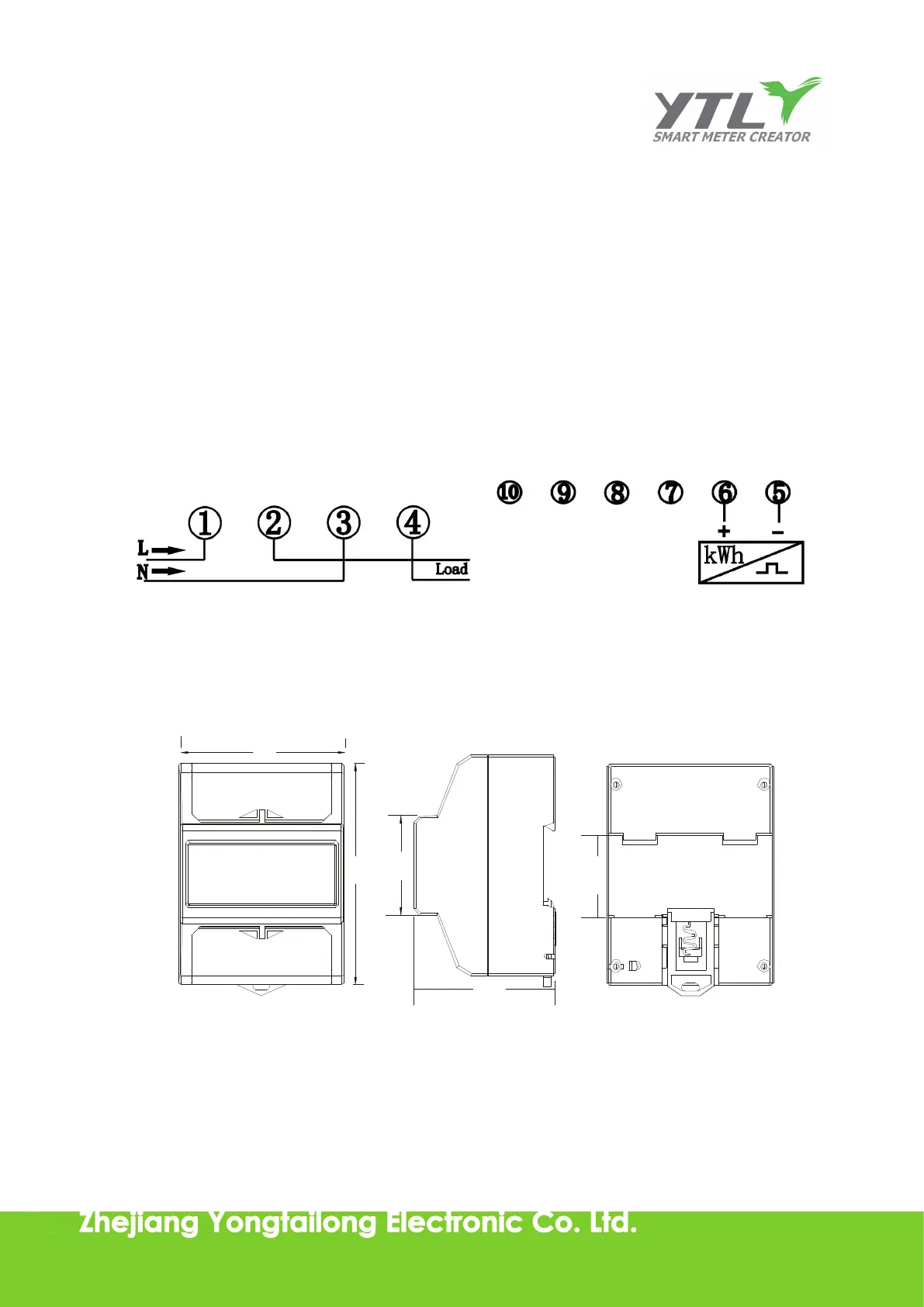

Connection Diagram
Diagram
Diagram
Diagram
5.
5.
5.
5. Meter
Meter
Meter
Meter Dimensions
Dimensions
Dimensions
Dimensions
76mm
1 0 0 m m
6mm 5
4 5 m m
3 6 m m
Height 100mm
Width 76mm
Depth 65mm
Weight 0.3092 kg(Net)
