3
6.
6.
6.
6. Impulse
Impulse
Impulse
Impulse Connection
Connection
Connection
Connection
Voltage 12~27V, current ≤ 27mA, max length of lead:20m
Impulse width=90ms, connect to terminal 20&21
Limits of values: max 60VDC, max 50mA
7.
7.
7.
7. Installation
Installation
Installation
Installation Instruction
Instruction
Instruction
Instruction
* Choose 3 5mm standard Din-Rail ( the length is confirmed by yourself ), fixed them in the
location which are waiting for installation ;

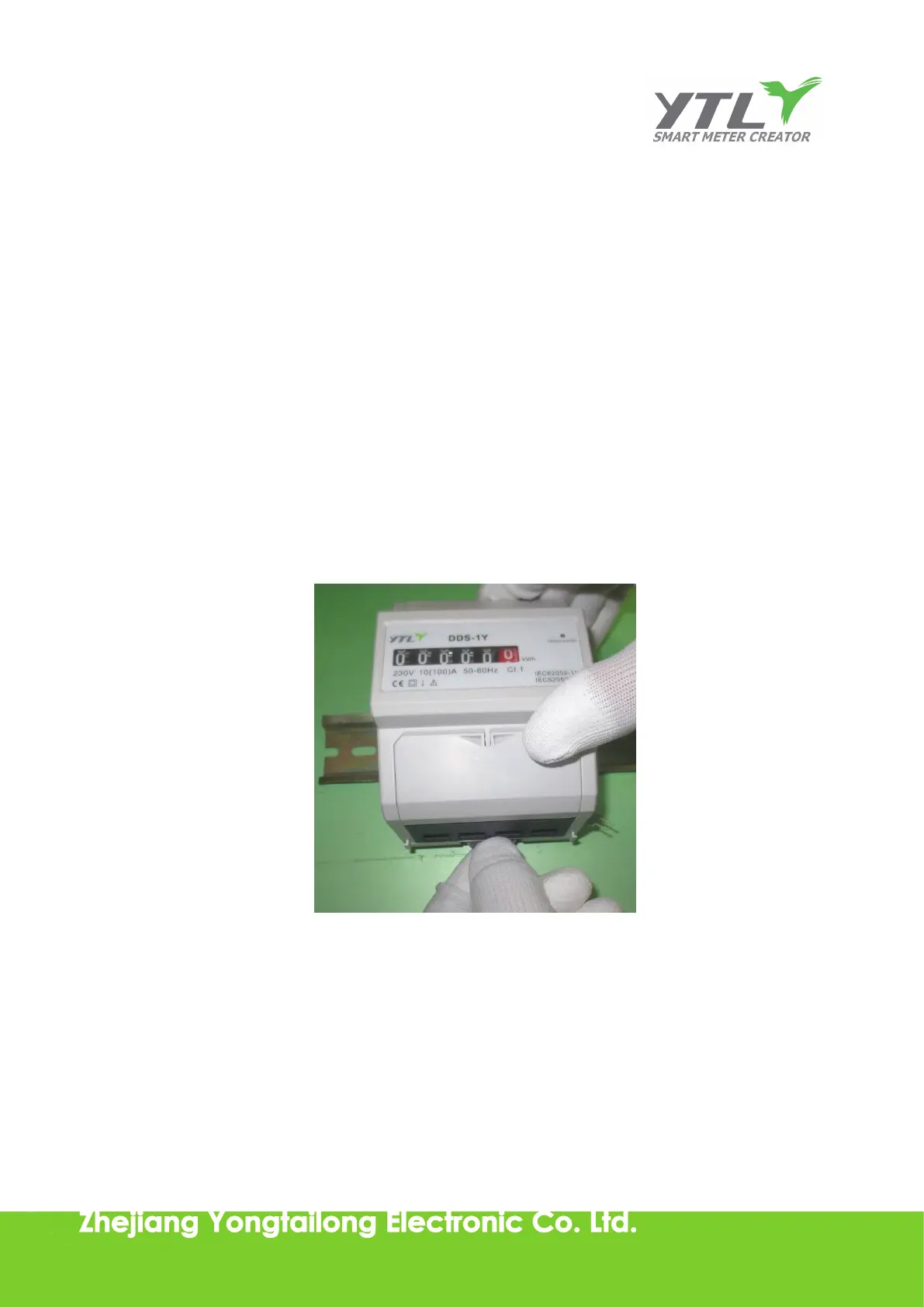

* Put the meter into the upper Din-Rail, then push down the clip in the meter bottom, see Fig. 1.
After the bottom of the meter install into the Din-Rail successfully, release the clip to make sure
the meter have fully installed, see Fig.2 and Fig. 3 .
Fig.
Fig.
Fig.
Fig. 1
1
1
1
