Yudian AI-501 - Wiring for Dimension D (72 mmX72 mm); Wiring for D2 Dimension (48 mmX48 mm)

 Yudian(H.K.)AutomationTechnol o gyCo.Ltd.
Website:http://www.yudian.ushttp://www.yudian.com.hk
Email:sales@yudian.com.hk
Tel:+852‐27708785Fax:+852‐27708796

10


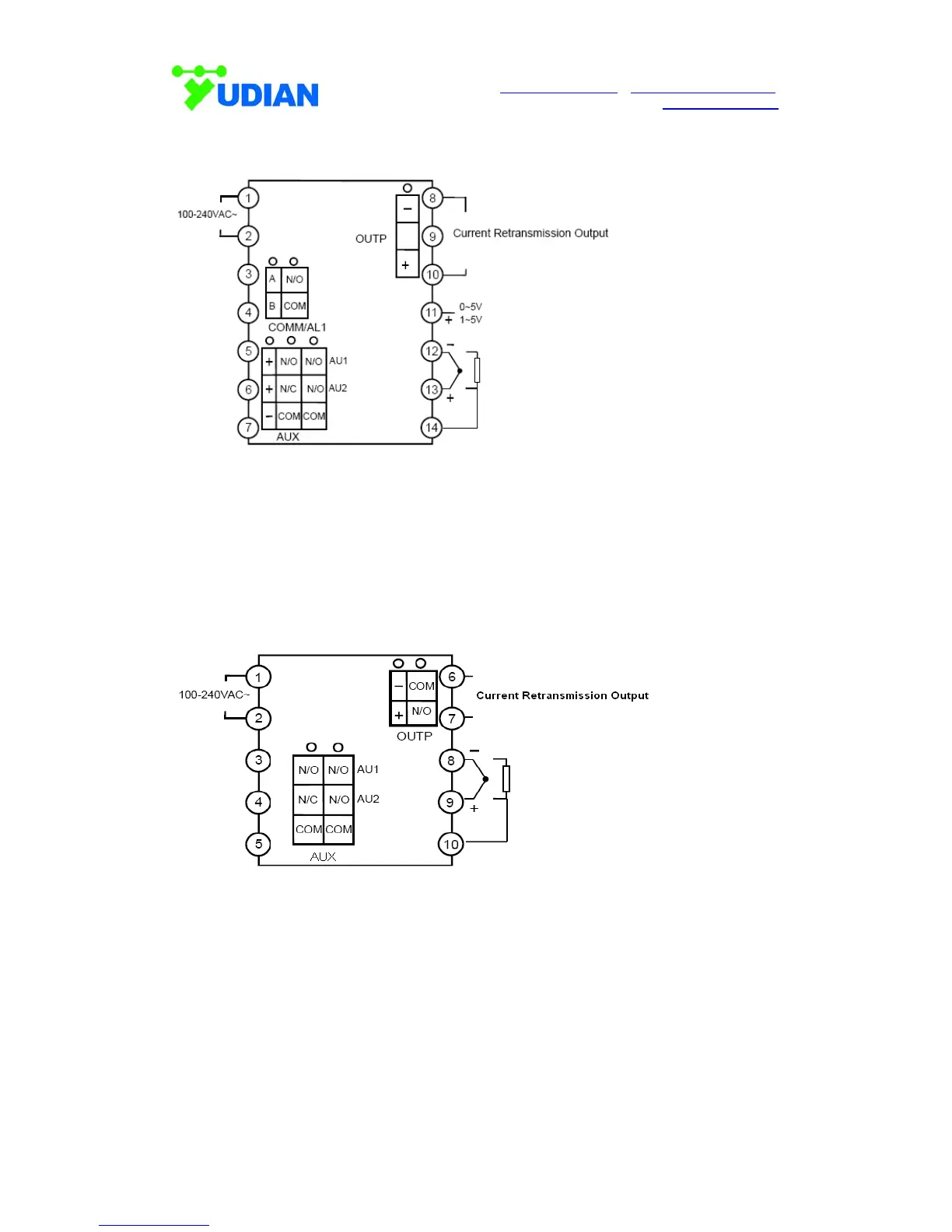

Wiring graph for D dimension（72mmX72mm）instruments
Note:
- Linear voltage signal of range below 500mV should be inputted from terminals 13+ and
12-,
- Signal of 0～5V, 1～5V or 0～10V should be inputted from terminals 11+ and 12-.
- 4～20mA linear current signal can be converted to 1～5V voltage signal with a 250 ohm
resistor and inputted from terminals 11+ and 12-.
Wiring graph for D2 dimension（48mmX48mm）instruments
Note:
- Linear voltage signal of range below 500mV should be inputted from terminals 8- and
9+-,
- D2 dimension not support 0～5V or 1～5V input. However, 0~5V or 1~5V can be
converted to 0~500mV or 100~500mV by connecting external resistor (it belong to
custom made order, please contact our sales or agent)
- 4～20mA linear current signal can be converted to 100～500mV voltage signal with a
25 ohm resistor and inputted from terminals 8- and 9+.
