YUHAO 1109 - Step 3: Receiver and Wiring

.9.
Visit www.pmwfan.com for further assistance.
FAN
Click!
buckle
③
Snap the basically assembled fan into the installed Bracket.
Installation

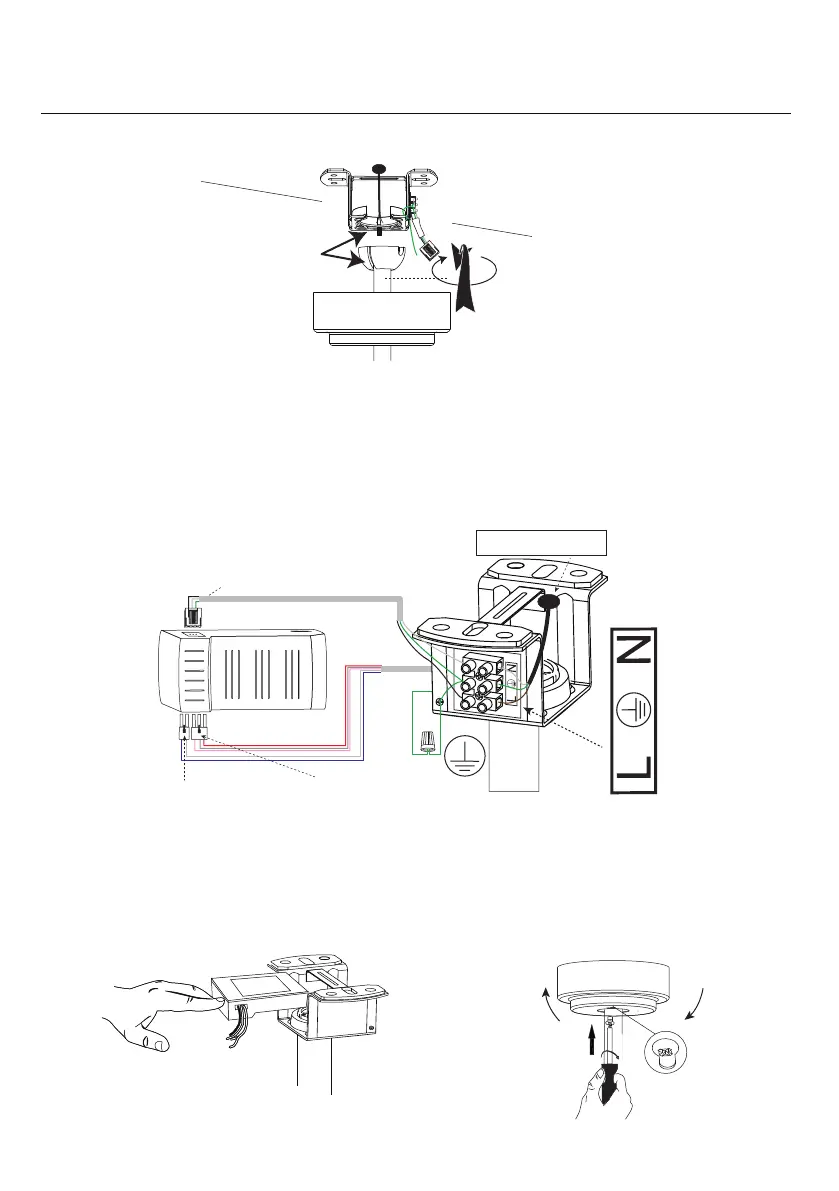

Step 3 (Receiver and wiring installation)
Connect the wires according to the polarity (the color of the House power cord may be different if the
color is the same).
①
AC IN L(Black)
AC IN N(White)
Ground(Green)
L For light(Blue)
N Neutral(White)
To Motor
U(Pink)
V(Gray)
W(Red)
House power
FAN
②
③
Put the receiver into the Bracket and arrange
the wires
Adjust the position of
Canopy, then lock it
