Yutrax TX159 - Axle and Wheel Attachment

Page 3
Owner's Manual
TX159 ATV Trailer

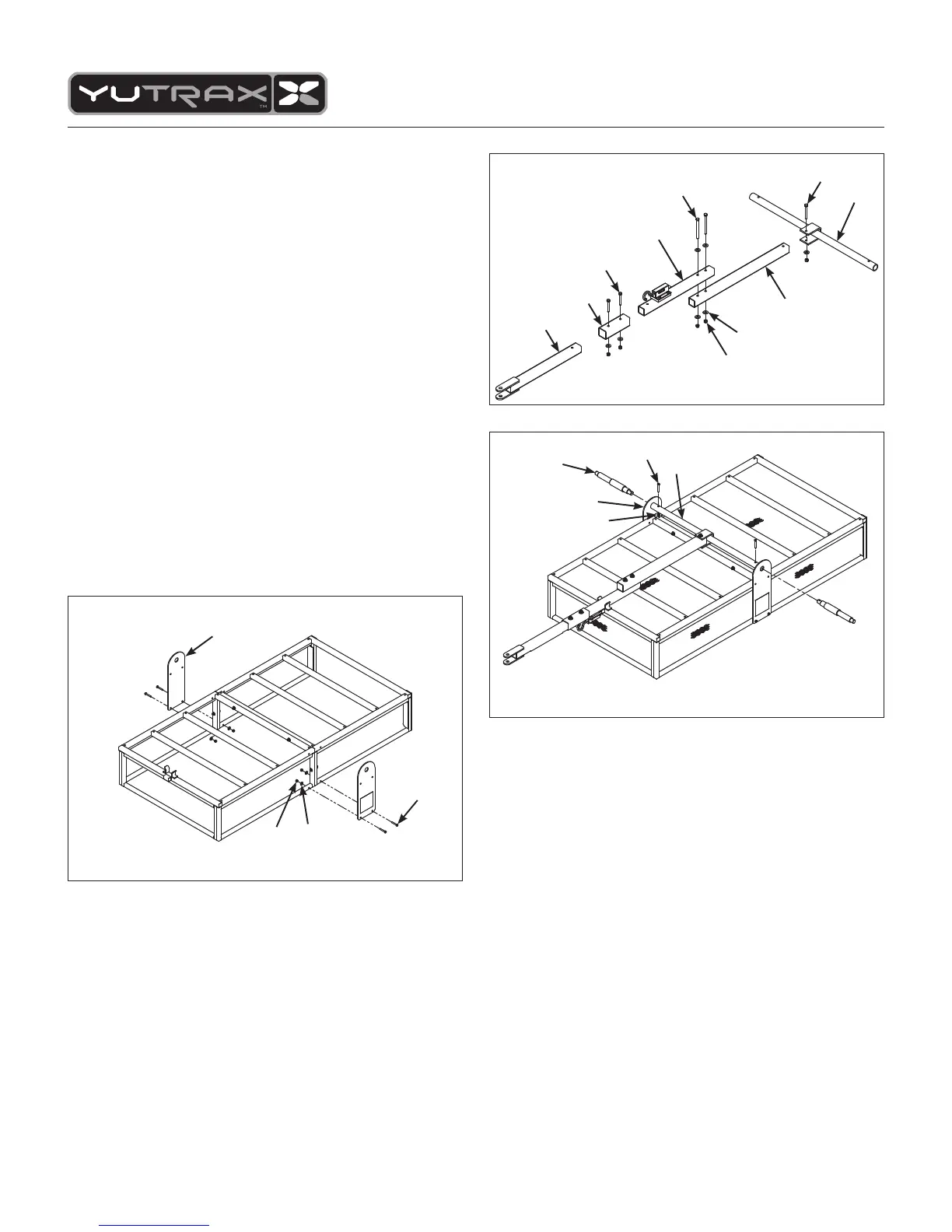

FIGURE 2
28
24
4
22
FIGURE 3
7
5
17
25
27
15
16
10
11
18
FIGURE 4
6
4
5
21
24
3. Attach the top of the two axle mounting plates (4) to the
trailer frame assembly with four M6x40mm bolts (22), M6
steel washers (28) and M6 locknuts (24). SEE FIGURE 2
4. Insert rear tongue tube (7) into the "u-bracket" on the axle
tube (5) and secure with one M8x70mm bolt (17), M8 steel
washer (27) and M8 locknut (25). SEE FIGURE 3
5. Secure the latch tube assembly (15) to the top of the rear
tongue tube (7) with two M8x100mm bolts (16), M8 steel
washers (27) and M8 locknuts (25). SEE FIGURE 3
6. Insert the latch tube assembly (15) and the front tongue
tube (10) into the connector pocket (11) and secure with
two M8x60mm bolts (18), M8 steel washers (27) and M8
locknuts (25). SEE FIGURE 3
7. Attach the tongue assembly to the frame assembly
by inserting the short end of the two axle spindles (6)
through the axle mounting plates (4) and threading into
the axle tube (5). Thread axle spindles until snug and
then loosen until holes in the axle tube and spindles are
aligned. Secure the two axle spindles (6) to the axle tube
(5) using two M6x45mm bolts (21) and M6 locknuts (24).
SEE FIGURE 4
